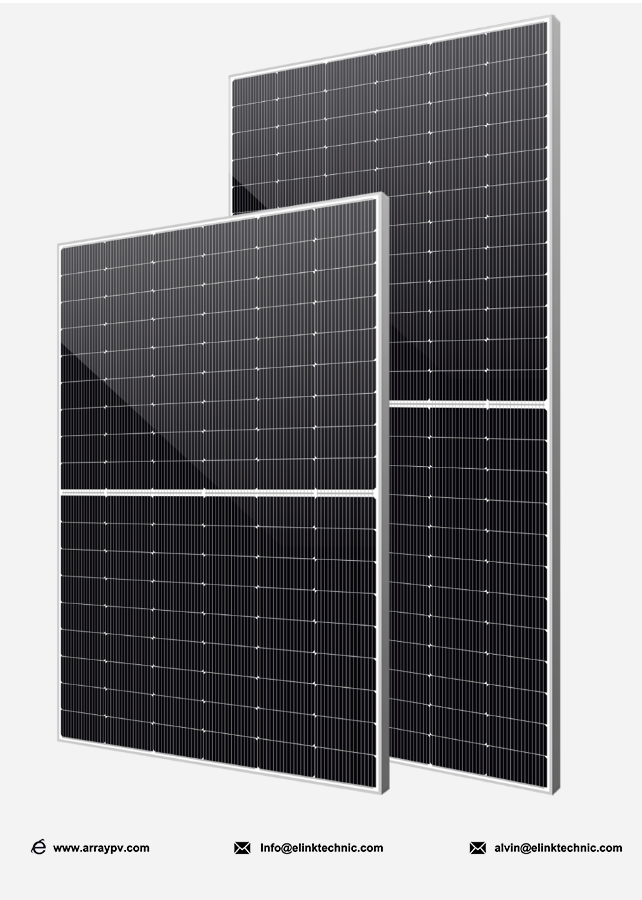

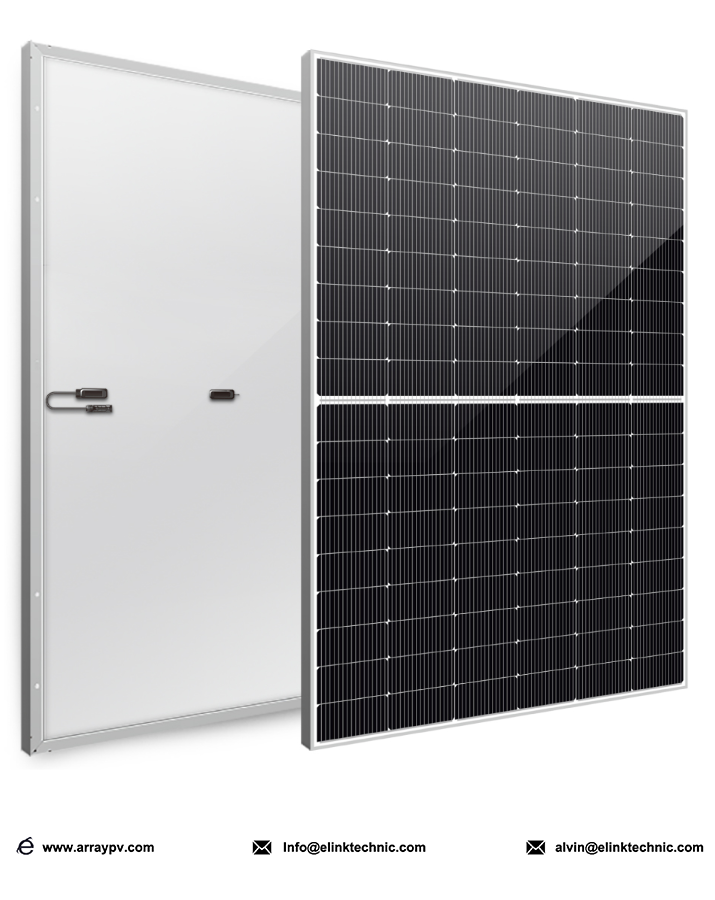

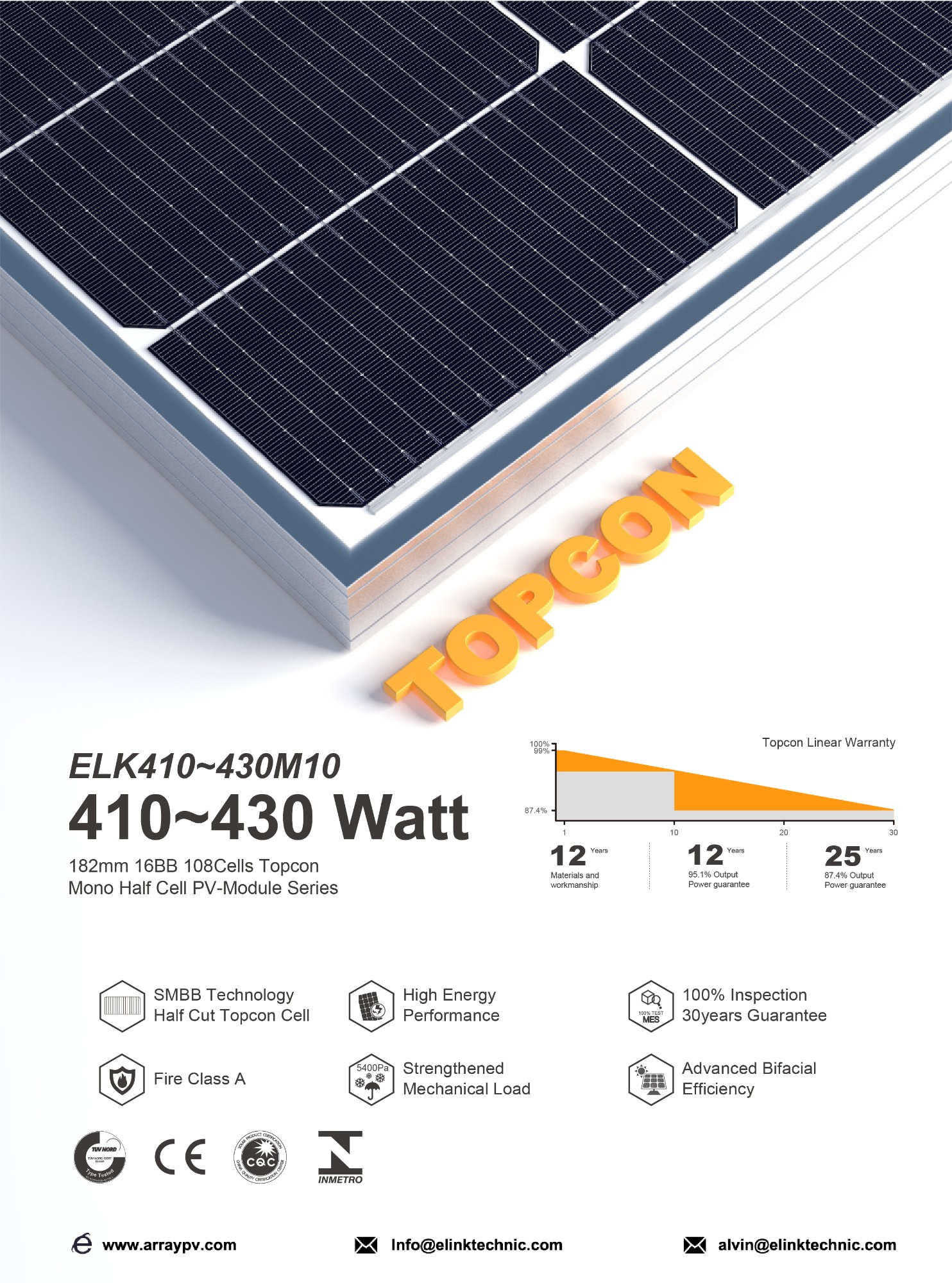

182mm 410-430Wp TOPCon

182mm 410-430Wp TOPCon

Extraordinary N-type Solar Panel
575W Solar Panel, 22.6% Ultra-high Eff

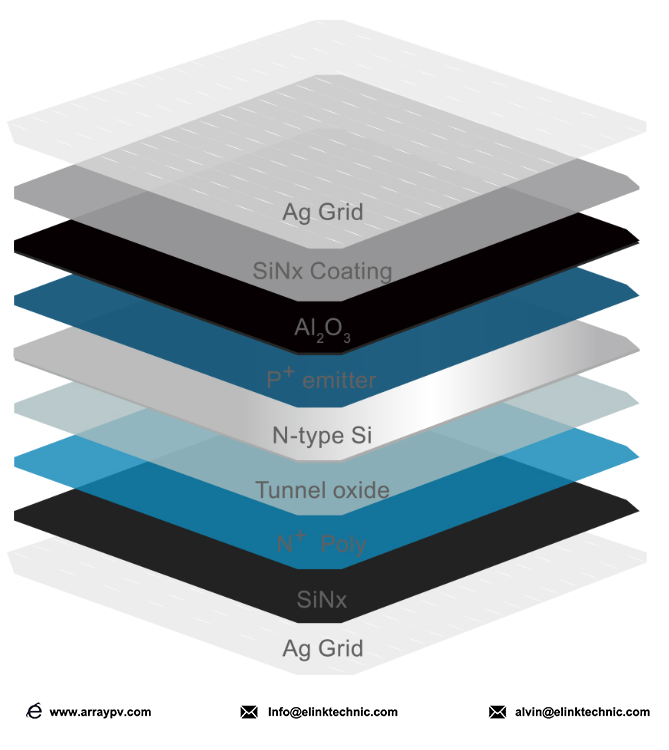

Comparing with PERC solar panel, TOPCon solar panel based on N-type Silicon wafer, have longer lifetime, lower degradation and higher potential of efficiency enhance.
430W TOPCon solar panel's efficiency up to 22.02%, 575W TOPCon solar's efficiency up to 22.26%.

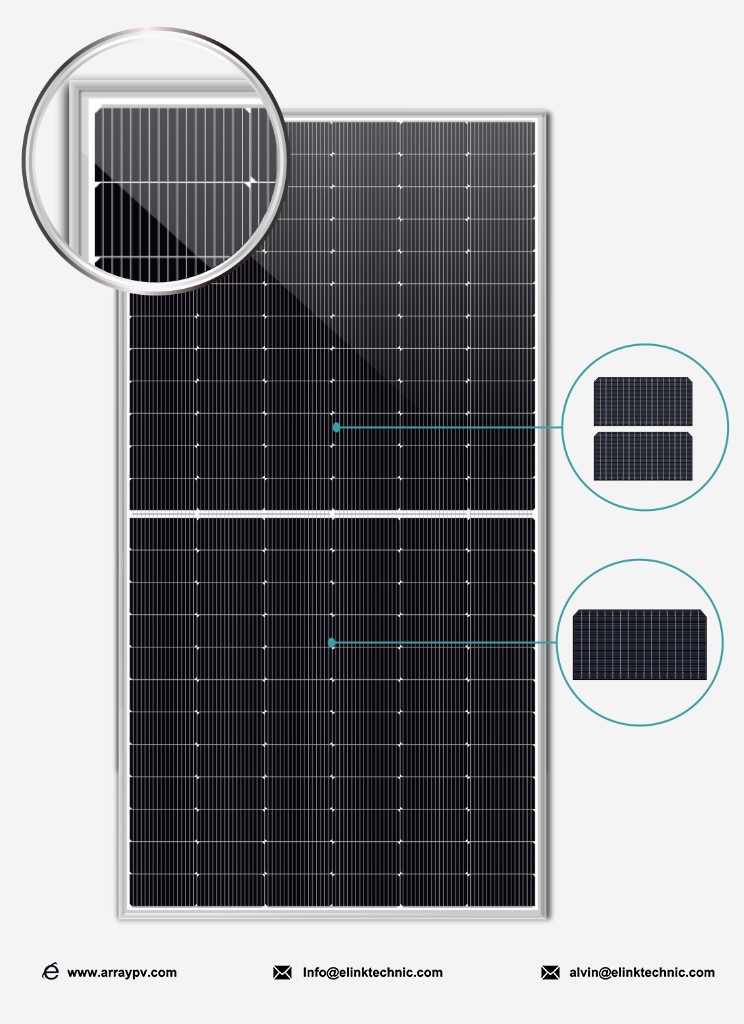

16BB Super-MBB Technology
Half cell Technology

TOPCon Solar Panel adopts 16BB technology. More busbar of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.

The half-cut cell design can decrease the power loss by the shadow effectively. The optimized circuit design not only realizes the maximum power output but also assures the reliability of solar panels.

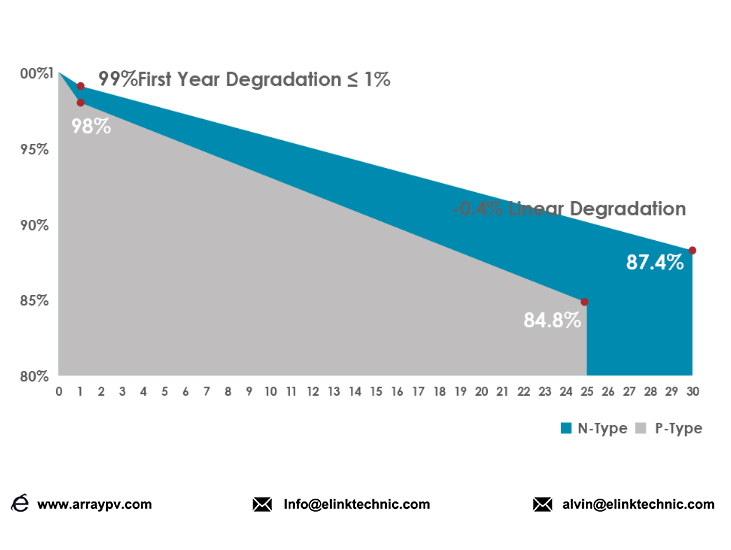

First Year Degradation ≤ 1%
-0.4% Linear Degradation

Comparing with PERC solar panel, TOPCon solar panel first year degradation is less than. After 30 years of certification, the output power is not less than 87.40% of the original output power.

-0.30%/℃ Optimized Temperature Coeff
Excellent weak light performance

TOPCon solar panel has Excellent weak light performance. When under the cloudy, haze condition, weak light performance help get more production.
The temperature coefficient of PERC solar panel is -0.35%/℃, TOPCon solar panel is -0.30%/℃. A temperature coefficient rating of -0.30%/℃, Support TOPCon solar panels to generate up to 2% more power than PERC solar panels at high temperatures.

Lower LID/LETID

TOPCon solar panel use N-type solar cell technology, result in extremely low LID/LETID, which supports reliability and longevity. Supports more power generation than PERC solar panel.

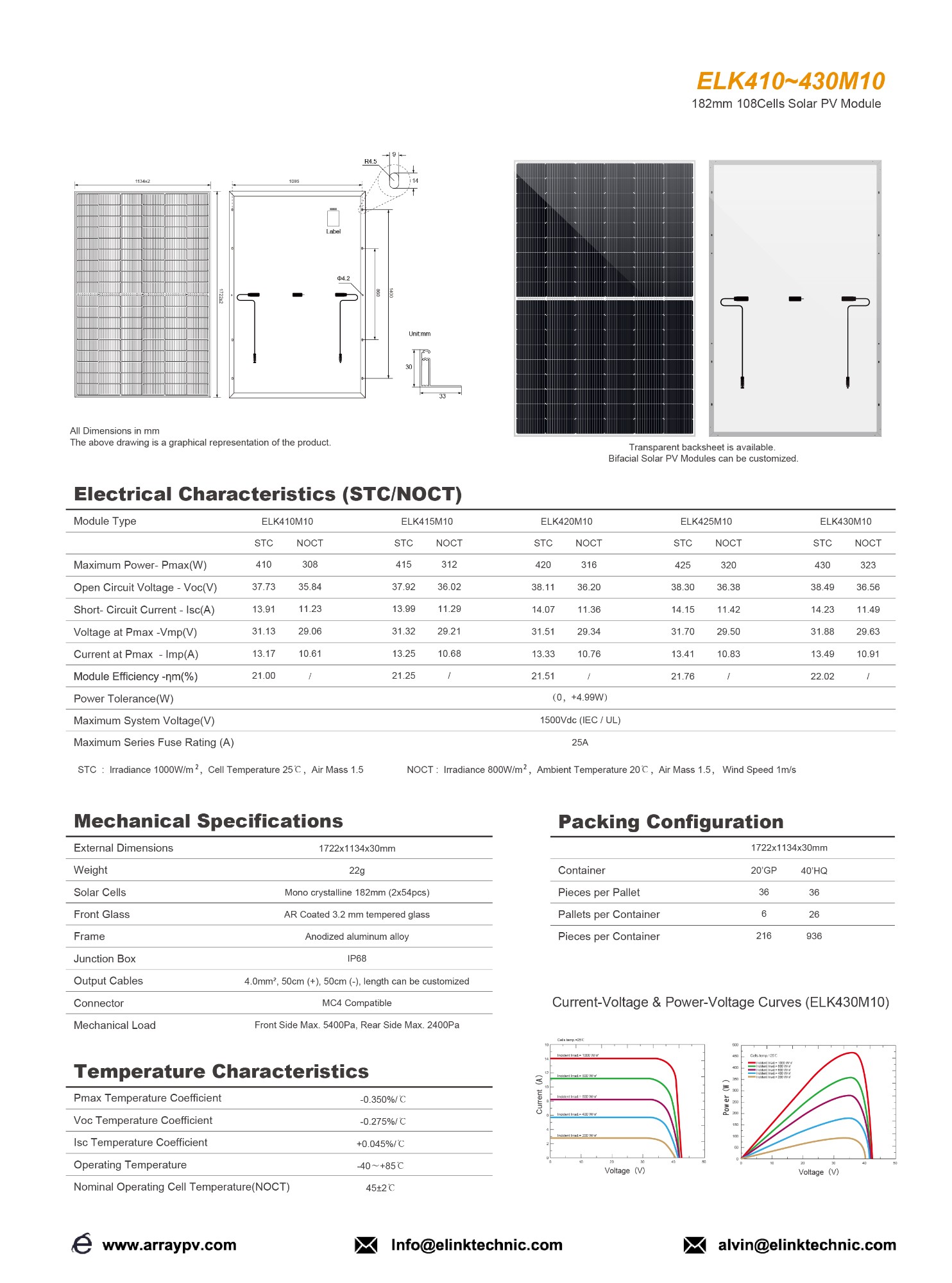

Product Detail

Mechanical Specifications
External Dimensions	1722x1134x30mm
Weight	22kg
Solar Cells	Mono crystalline 182mm (2x54pcs)
Front Glass	AR Coated 3.2 mm tempered glass
Frame	Anodized aluminum alloy
Junction Box	IP68
Output Cables	4.0mm², 50cm (+), 50cm (-), length can be customized
Connector	MC4 EVO2
Mechanical Load	Front Side Max. 5400Pa, Rear Side Max. 2400Pa
