Backup Battery

Backup Battery 12.8V30Ah

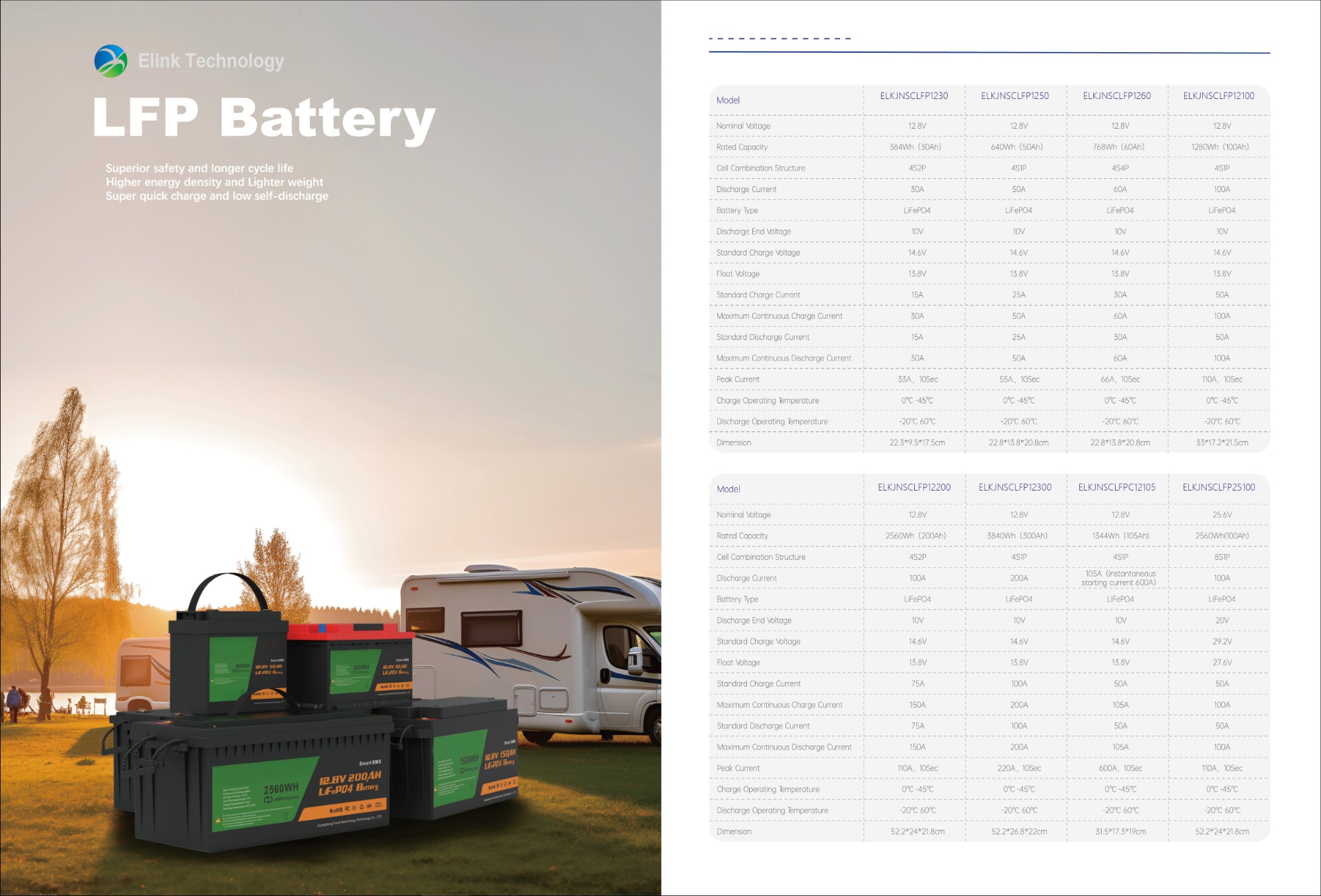

Model	ELKJNSCLFP1230	ELKJNSCLFP1250	ELKJNSCLFP1260	ELKJNSCLFP12100
Nominal voltage	12.8V
Rated capacity	384wh(30Ah)	640wh(50Ah)	768wh(60Ah)	1280wh(100Ah)
Cell combinate structrue	4S2P	4S1P	4S4P	4S1P
Discharging current	30A	50A	60A	100A
Battery type	LFP4
Discharge end voltage	10V
Standard charging voltage	14.6V
Float voltage	13.8V
Standard charging current	15A	25A	30A	50A
Maximum continuous charge current	30A	50A	60A	100A
Standard discharging current	15A	25A	30A	50A
Maximum continuous discharge current	30A	50A	60A	100A
Peak current	33A,10Sec	55A,10Sec	66A,10Sec	100A,10Sec
Charge operating temperature	0～45℃
Discharge operating temperature	-20～60℃
Dimension	22.3×9.5×17.5cm	22.8×13.8×20.8cm	22.8×13.8×20.8cm	33×17.2×21.5cm
