Backup Battery

Backup Battery 12.8V 105Ah

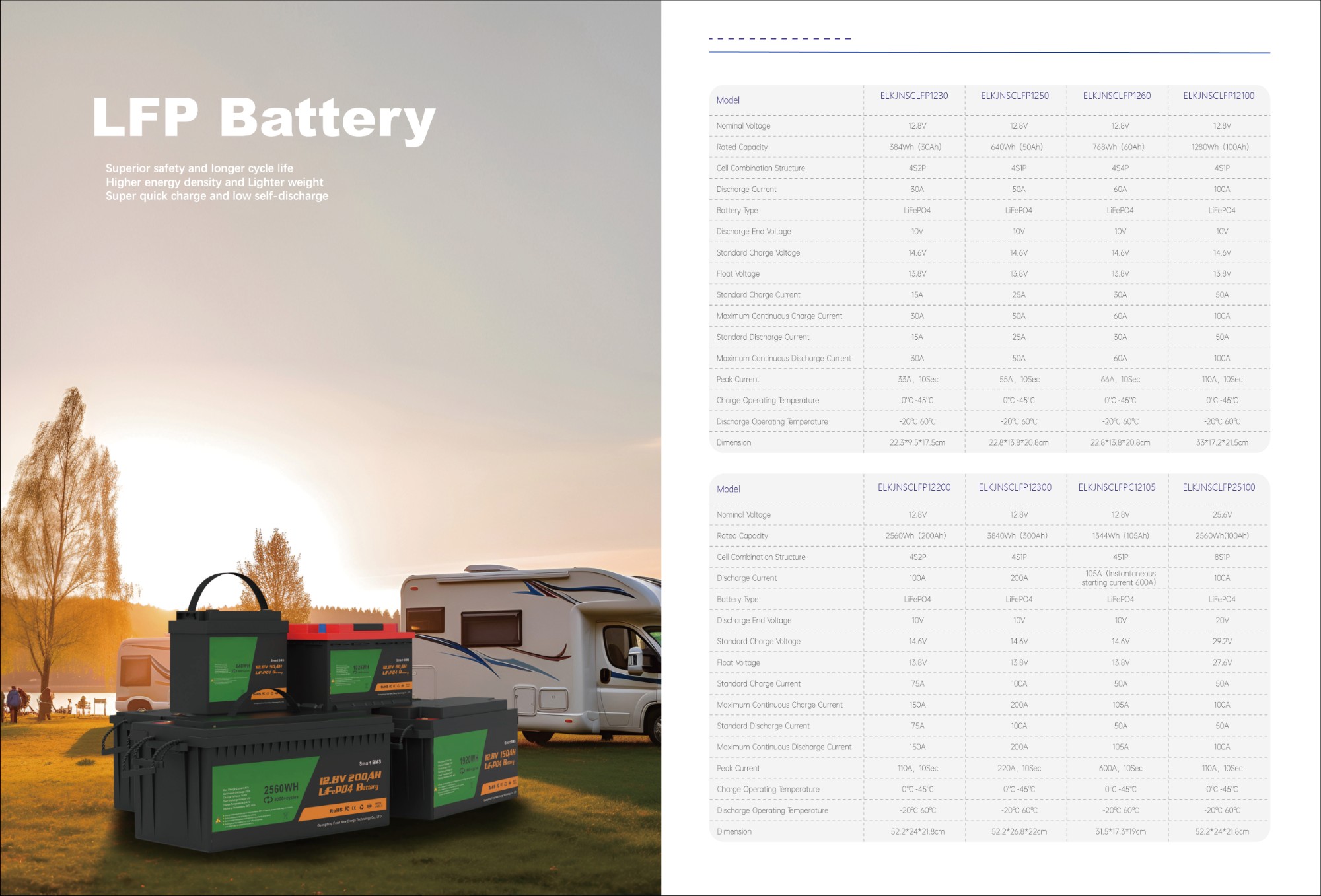

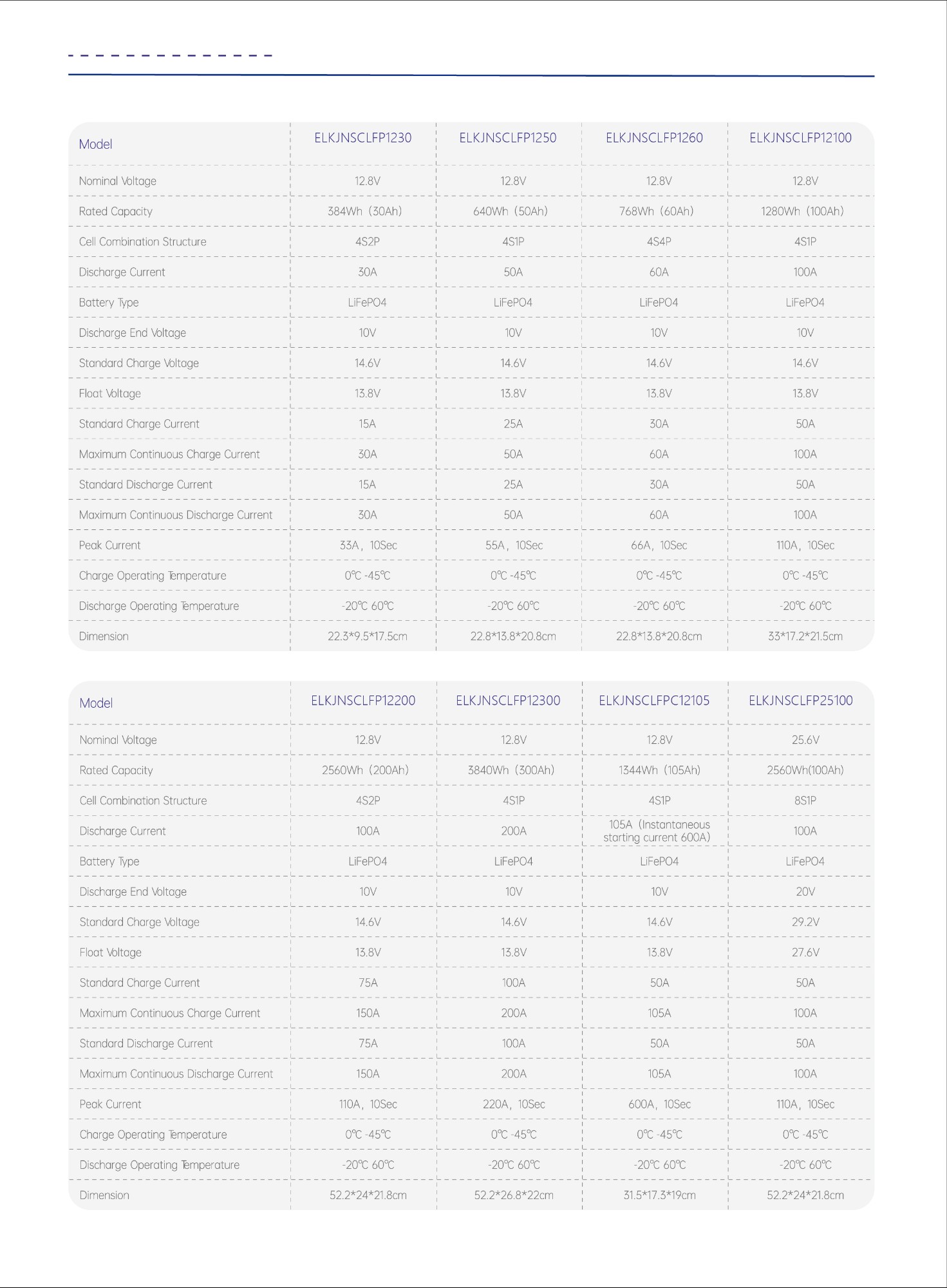

Model	ELKJNSCLFP12200	ELKJNSCLFP12300	ELKJNSCLFPC12105	ELKJNSCLFP25100
Nominal voltage	12.8V
Rated capacity	2560wh(200Ah)	3840wh(300Ah)	1344wh(105Ah)	2560wh(100Ah)
Cell combinate structrue	4S2P	4S1P	4S1P	8S1P
Discharging current	100A	200A	105A(Instantaneous starting current 600A)	100A
Battery type	LFP4
Discharge end voltage	10V
Standard charging voltage	14.6V			29.2V
Float voltage	13.8V			13.8V
Standard charging current	75A	100A	50A	50A
Maximum continuous charge current	150A	200A	105A	100A
Standard discharging current	75A	100A	50A	50A
Maximum continuous discharge current	150A	200A	105A	100A
Peak current	110A,10Sec	220A,10Sec	600A,10Sec	110A,10Sec
Charge operating temperature	0～45℃
Discharge operating temperature	-20～60℃
Dimension	52.2×24×21.8cm	52.2×26.8×22cm	31.5×17.3×19cm	52.2×24×21.8cm
