Backup Battery

Backup Battery 25.6V 100Ah

  • Product Detail

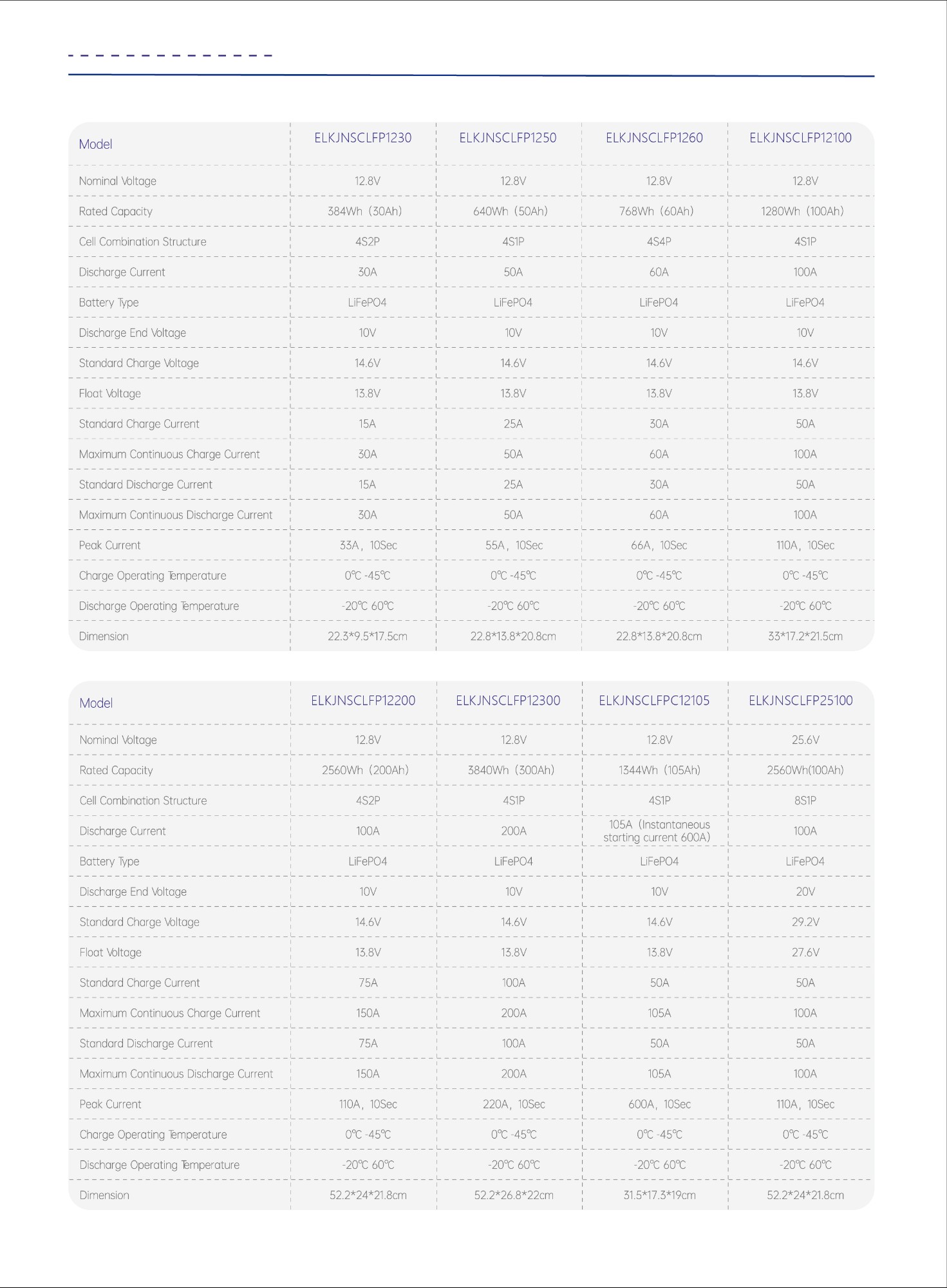

Model ELKJNSCLFP12200 ELKJNSCLFP12300 ELKJNSCLFPC12105 ELKJNSCLFP25100
Nominal voltage 12.8V
Rated capacity 2560wh(200Ah) 3840wh(300Ah) 1344wh(105Ah) 2560wh(100Ah)
Cell combinate structrue 4S2P 4S1P 4S1P 8S1P
Discharging current 100A 200A 105A(Instantaneous starting current 600A) 100A
Battery type LFP4
Discharge end voltage 10V
Standard charging voltage 14.6V 29.2V
Float voltage 13.8V 13.8V
Standard charging current 75A 100A 50A 50A
Maximum continuous charge current 150A 200A 105A 100A
Standard discharging current 75A 100A 50A 50A
Maximum continuous discharge current 150A 200A 105A 100A
Peak current 110A,10Sec 220A,10Sec 600A,10Sec 110A,10Sec
Charge operating temperature 0~45℃
Discharge operating temperature -20~60℃
Dimension 52.2×24×21.8cm 52.2×26.8×22cm 31.5×17.3×19cm 52.2×24×21.8cm
