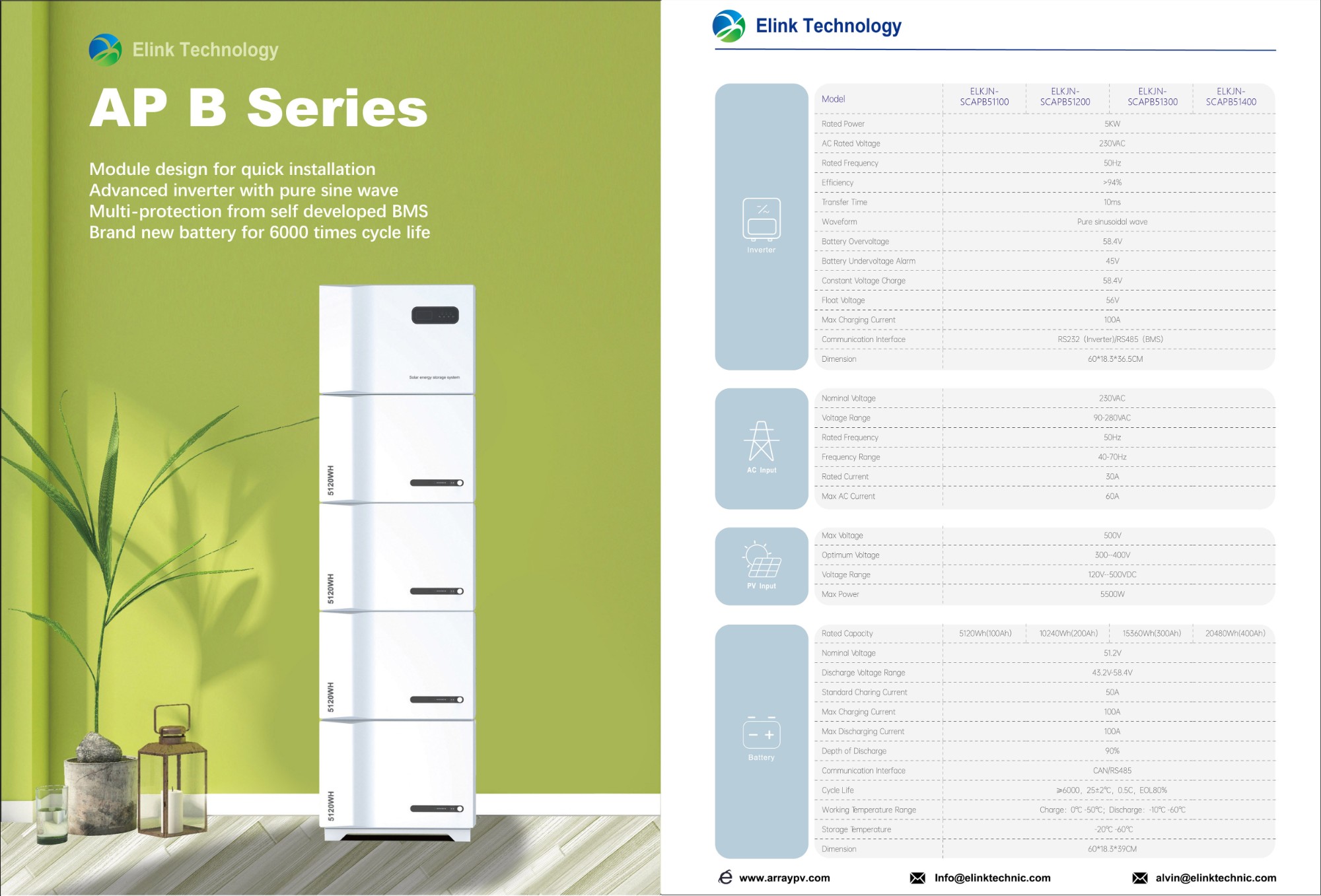

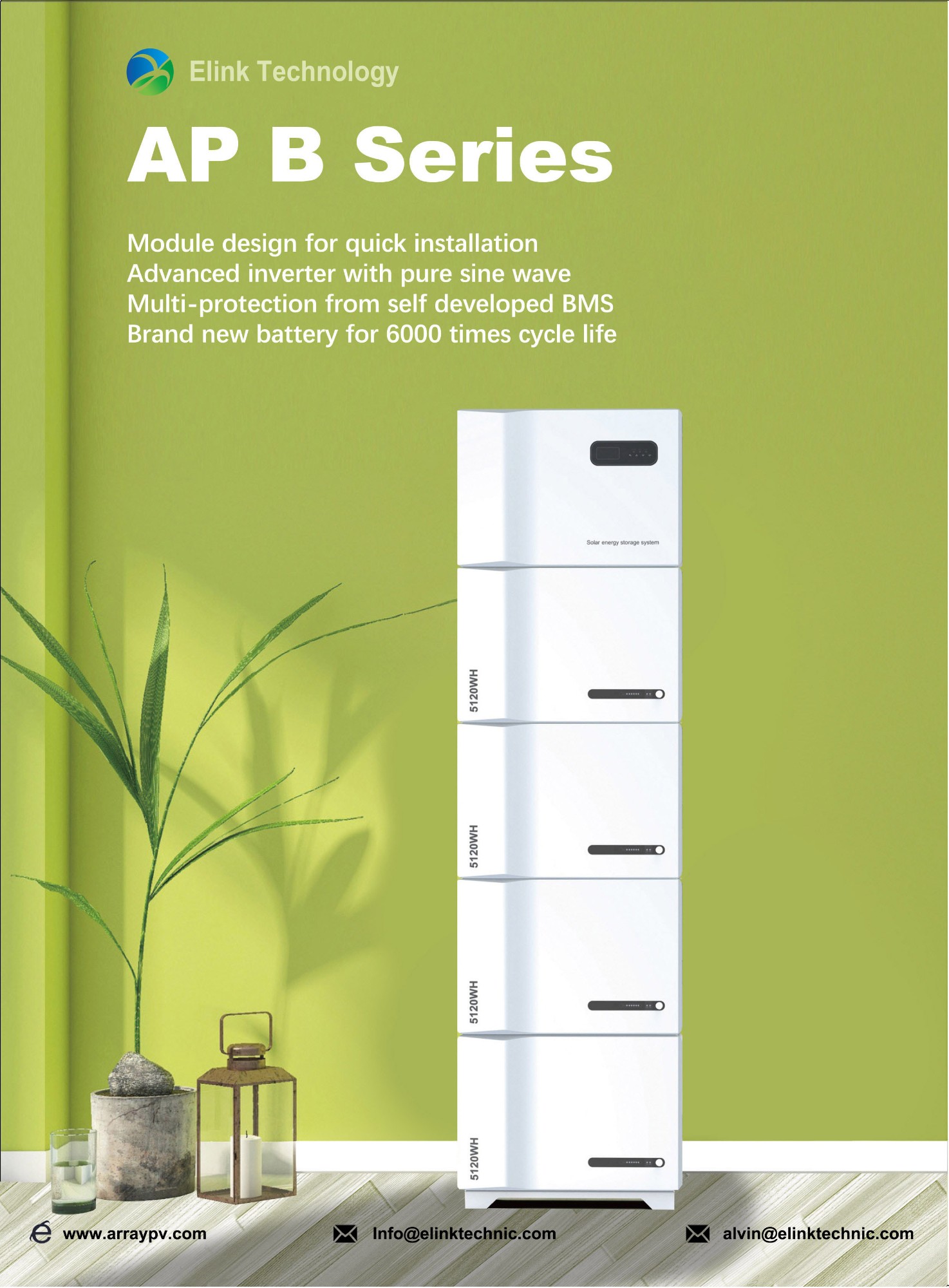

APB 20.48kwh 51.2V 400Ah Stacked Energy Storage

  • Product Detail

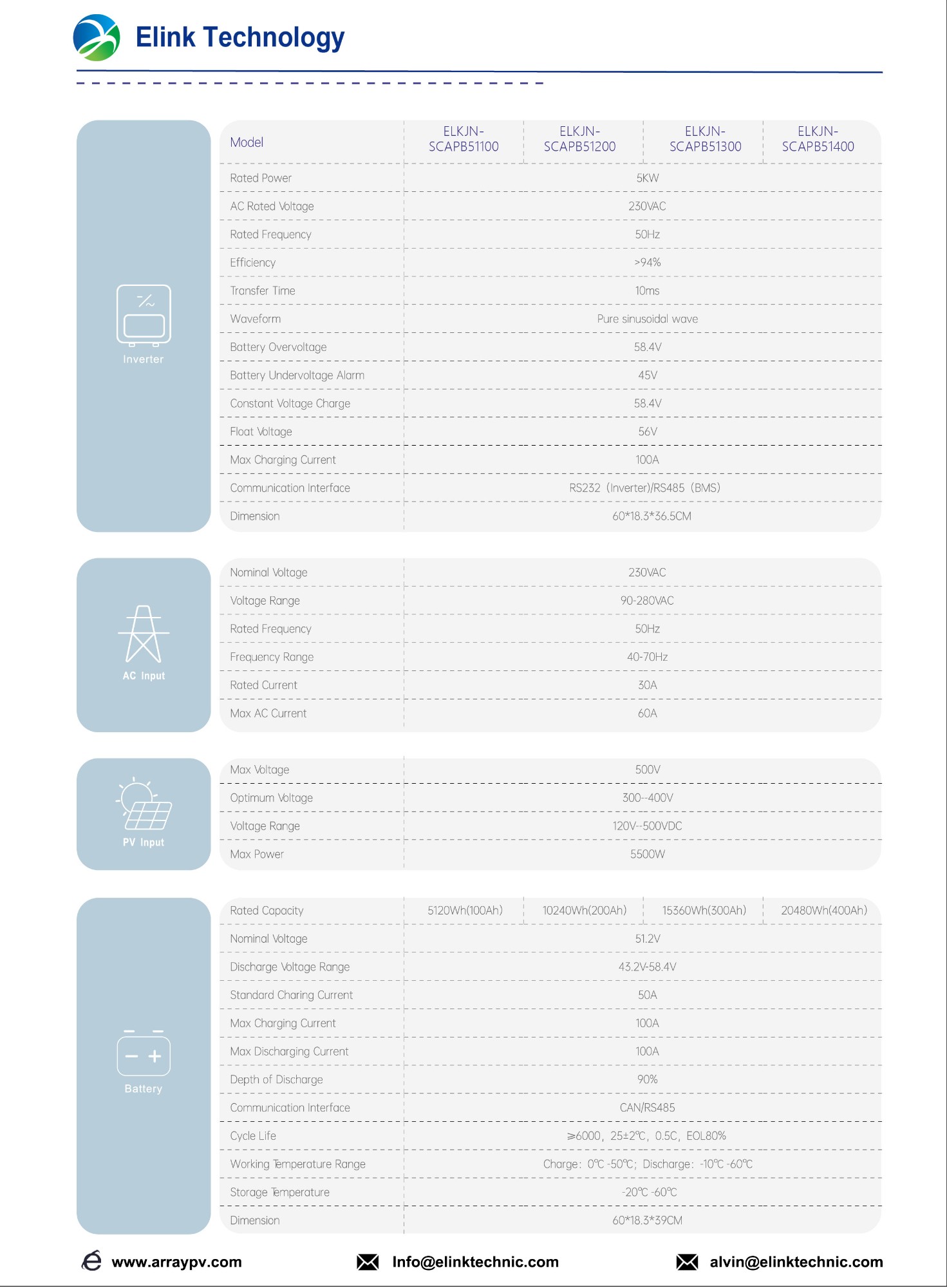

Inverter Model ELKJNSCAPB51100 ELKJNSCAPB51200 ELKJNSCAPB51300 ELKJNSCAPB51400
Rated power 5kw
AC Rated voltage 230VAC
Rated frequency 50Hz
Efficiency >94%
Transfer time 10ms
Wave form Pure sine wave
Battery overvoltage 58.4V
Battery undervoltage alarm 45V
Costant voltage charge 58.4V
Float voltage 56V
Max charging current 100A
Communication interface RS232(Inverter)/RS485(BMS)
Dimension 60×18.3×36.5cm
AC Input Nominal voltage 230VAC
Voltage range 90~280VAC
Rated frequency 50Hz
Frequency range 40~70Hz
Rated current 30A
Max AC current 60A
PV Input Max voltage 500V
Optimum voltage 300~400V
Voltage range 120~500VDC
Max power 5500w
Battery Rated capacity 5120wh(100Ah) 10240wh(200Ah) 15360wh(300Ah) 20480wh(400Ah)
Nominal voltage 51.2V
Discharge voltage range 43.2~58.4V
Standard charging current 50A
Max charging current 100A
Max Discharging current 100A
Depth of discharge 90%
Communication interface CAN/RS485
Cycle life ≥6000,25±2℃,0.5C,EOL80%
Working temperature Range Charge:0~50℃;Discharge:-10~60℃.
Storage temperature -20~60℃.
Dimension 60×18.3×39cm
