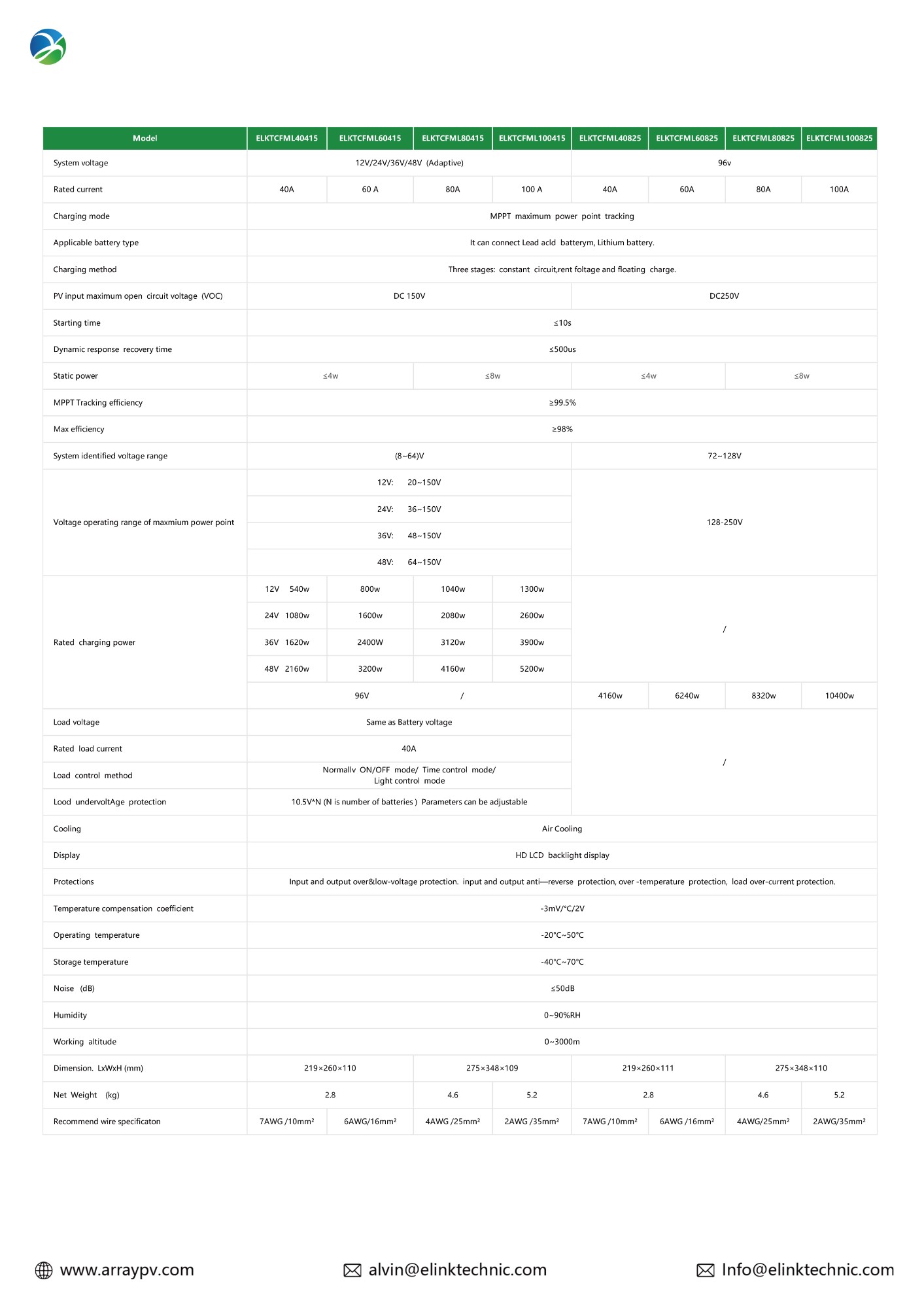

Model
|
ELKTCFML40415
|
ELKTCFML60415
|
ELKTCFML80415
|
ELKTCFML100415
|
ELKTCFML40825
|
ELKTCFML60825
|
ELKTCFML80825
|
ELKTCFML100825
|
|
System voltage
|
12V/24V/36V/48V (Adaptive)
|
96v
|
|
Rated current
|
40A
|
60
A
|
80A
|
100
A
|
40A
|
60A
|
80A
|
100A
|
|
Charging mode
|
MPPT maximum
power point tracking
|
|
Applicable battery type
|
It
can connect Lead acld batterym,
Lithium battery.
|
|
Charging method
|
Three
stages: constant circuit,rent foltage and floating charge.
|
|
PV input maximum open
circuit voltage (VOC)
|
DC
150V
|
DC250V
|
|
Starting time
|
≤10s
|
|
Dynamic response recovery
time
|
≤500us
|
|
Static power
|
≤4w
|
≤8w
|
≤4w
|
≤8w
|
|
MPPT Tracking efficiency
|
≥99.5%
|
|
Max efficiency
|
≥98%
|
|
System identified voltage range
|
(8~64)V
|
72~128V
|
|
Voltage operating range of maxmium power point
|
12V: 20~150V
|
128~250V
|
|
24V: 36~150V
|
|
36V: 48~150V
|
|
48V: 64~150V
|
|
Rated
charging power
|
12V 540w
|
800w
|
1040w
|
1300w
|
/
|
|
24V
1080w
|
1600w
|
2080w
|
2600w
|
|
36V
1620w
|
2400W
|
3120w
|
3900w
|
|
48V
2160w
|
3200w
|
4160w
|
5200w
|
|
96V /
|
4160w
|
6240w
|
8320w
|
10400w
|
|
Load voltage
|
Same
as Battery voltage
|
/
|
|
Rated load current
|
40A
|
|
Load control method
|
Normallv ON/OFF
mode/ Time control mode/
Light control mode
|
|
Lood undervoltAge protection
|
10.5V*N (N is number of batteries ) Parameters
can be adjustable
|
|
Cooling
|
Air
Cooling
|
|
Display
|
HD
LCD backlight display
|
|
Protections
|
Input and output over&low-voltage protection. input and output anti—reverse protection, over -temperature
protection, load over-current protection.
|
|
Temperature compensation
coefficient
|
-3mV/°C/2V
|
|
Operating temperature
|
-20°C~50°C
|
|
Storage temperature
|
-40°C~70°C
|
|
Noise (dB)
|
≤50dB
|
|
Humidity
|
0~90%RH
|
|
Working altitude
|
0~3000m
|
|
Dimension. LxWxH (mm)
|
219×260×110
|
275×348×109
|
219×260×111
|
275×348×110
|
|
Net Weight (kg)
|
2.8
|
4.6
|
5.2
|
2.8
|
4.6
|
5.2
|
|
Recommend wire specificaton
|
7AWG
/10mm²
|
6AWG/16mm²
|
4AWG
/25mm²
|
2AWG
/35mm²
|
7AWG
/10mm²
|
6AWG
/16mm²
|
4AWG/25mm²
|
2AWG/35mm²
|
