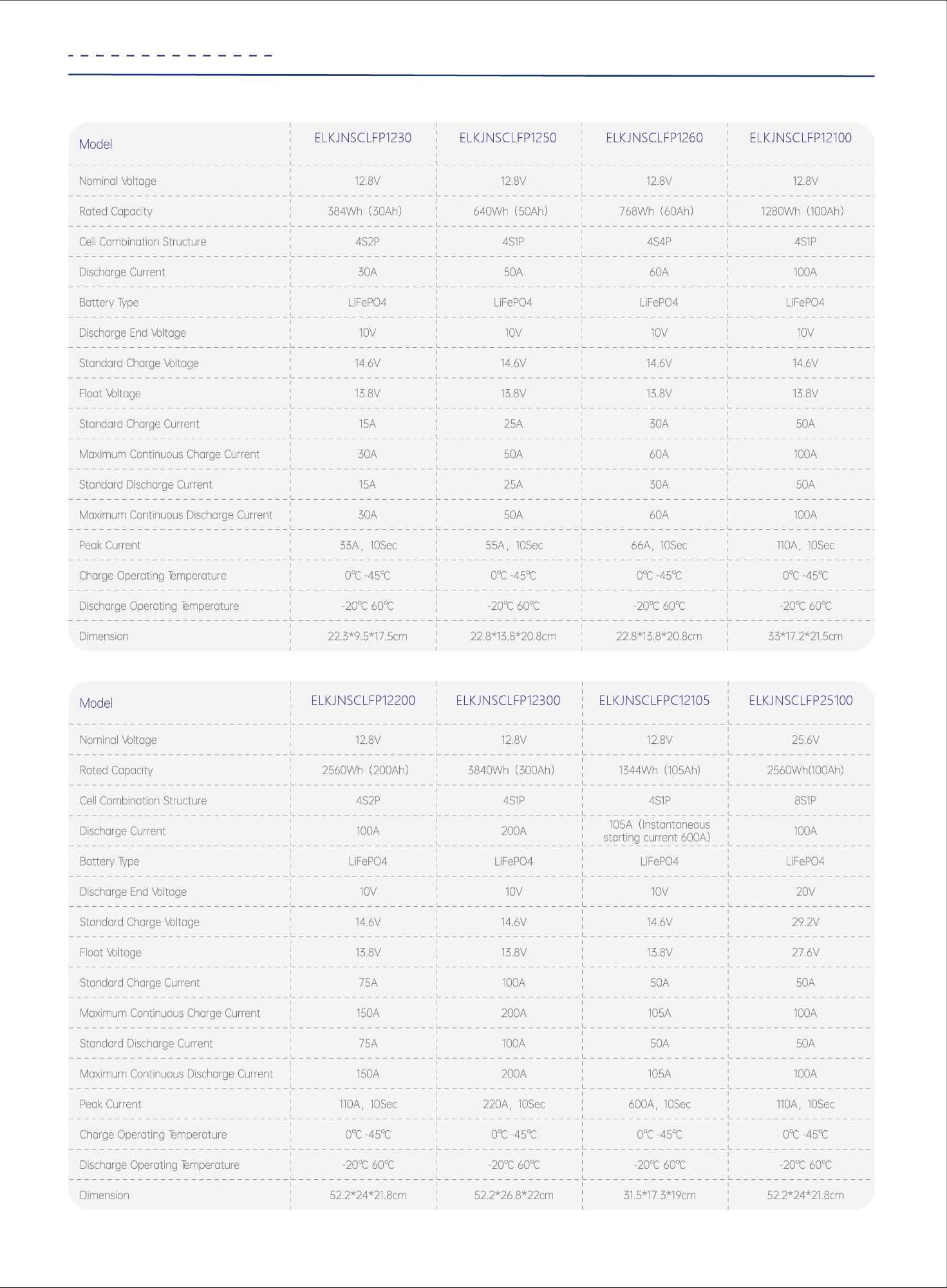

Model
|
ELKJNSCLFP12200
|
ELKJNSCLFP12300
|
ELKJNSCLFPC12105
|
ELKJNSCLFP25100
|
|
Nominal
voltage
|
12.8V
|
|
Rated
capacity
|
2560wh(200Ah)
|
3840wh(300Ah)
|
1344wh(105Ah)
|
2560wh(100Ah)
|
|
Cell
combinate structrue
|
4S2P
|
4S1P
|
4S1P
|
8S1P
|
|
Discharging
current
|
100A
|
200A
|
105A(Instantaneous
starting current 600A)
|
100A
|
|
Battery type
|
LFP4
|
|
Discharge end
voltage
|
10V
|
|
Standard
charging voltage
|
14.6V
|
29.2V
|
|
Float voltage
|
13.8V
|
13.8V
|
|
Standard
charging current
|
75A
|
100A
|
50A
|
50A
|
|
Maximum
continuous charge current
|
150A
|
200A
|
105A
|
100A
|
|
Standard
discharging current
|
75A
|
100A
|
50A
|
50A
|
|
Maximum
continuous discharge current
|
150A
|
200A
|
105A
|
100A
|
|
Peak current
|
110A,10Sec
|
220A,10Sec
|
600A,10Sec
|
110A,10Sec
|
|
Charge
operating temperature
|
0～45℃
|
|
Discharge
operating temperature
|
-20～60℃
|
|
Dimension
|
52.2×24×21.8cm
|
52.2×26.8×22cm
|
31.5×17.3×19cm
|
52.2×24×21.8cm
|
