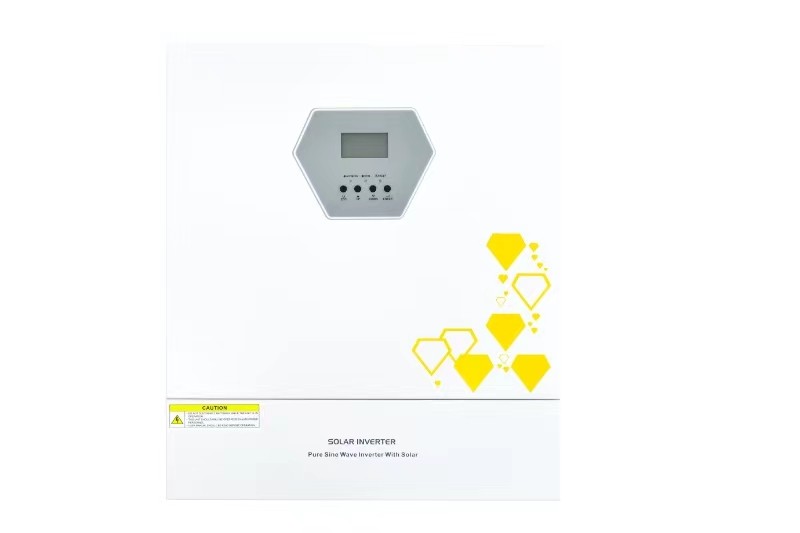

Solar Inverter GD Series 5.5kw 11kw

Model		ELKTCFGD5548JMHB	ELKTCFGD6248JMHB	ELKTCFGD11048JMHB
AC Input	Input Formation	L+ N+PE
	AC Input	220/230/240VAC
	Input voltage range	90-280VAC±3V (Normal mode) 170-280VAC±3\/ (UPS mode)
	Frequency	50/ 60Hz (Adaptive)
Output	Rated Power	5500W	6200W	11000w
	Output voltage	220/ 23 0/ 240VAC ±5%
	Output Frequency	50 / 60Hz ±0.1%
	Output wave	Pure Sine Wave
	Transfer Time (Adjustable)	10ms for Computer Equipment. 20ms for Household Equipment
	Peak Power	11000VA	12400VA	22000VA
	Overload Ability	Battery Mode : 21s 105%~150%Load, 11s 105%~150%Load, 400ms ＞200% Load
Grid connected Operation	Output voltage	220/230/240VAC
	Grid voltage Range	I 95~253VAC
	Grid Frequency Range	49~51±1Hz / 59~61±1Hz
	Output Current	23. 9 A	26. 9A	47.8 A
	Power Factor Range	> 0.9 9
	Conversion Efficiency (DC/ AC)	98%
Battery	Rated Voltage	48 VDC
	Constant Charging voltage (Adjustable)	56.4VDC
	Float Charging Voltage (Adjustable)	54VDC
Charger	PV Charging Method	MPPT		MPPT *2
	MAX PV input	5500W	6200W	2×5500w
	MPPT Tracking Range	120~500VDC		90~5 00 V DC
	Voltage working range of maxmium power point	300~400VDC
	MAX PV input voltage	500 VDC
	MAX PV input Current	18 A		18 A /18 A
	MAX PV Charge Current	100A		150A
	MAX AC Charge Current	60 A	80A	150A
	MAX Charge Current	100 A		150A
Display	LCD	Display operating mode / Ioad / input / output
Intertaceface	RS232	5PIN/ Pitch2.54mm, Baud Rate 2400
	Expansion slot Communication Interface	Lithium Battery BMS Communication Card.WIFI 2×5PiN/Pitch2.54 mm
	Parallel interface	Support parallel
Ambient Parameters	Operating temperature	-10°C~50°C
	Storage Temperature	-10°C~60°C
	Ork AItitude	No more than 1000m, If＞1000m .Rate power will decline, Max 4000m, Refer to IEC62040
	Operating Environment Humidity	20%~95% Non Condensing
	Noise	≤50db
Dimension	L×W×H(mm)	570×500×148
Standards and Certifications		EN-IEC 60335-1; EN-IEC 60335-2-29; IEC 62109-1
