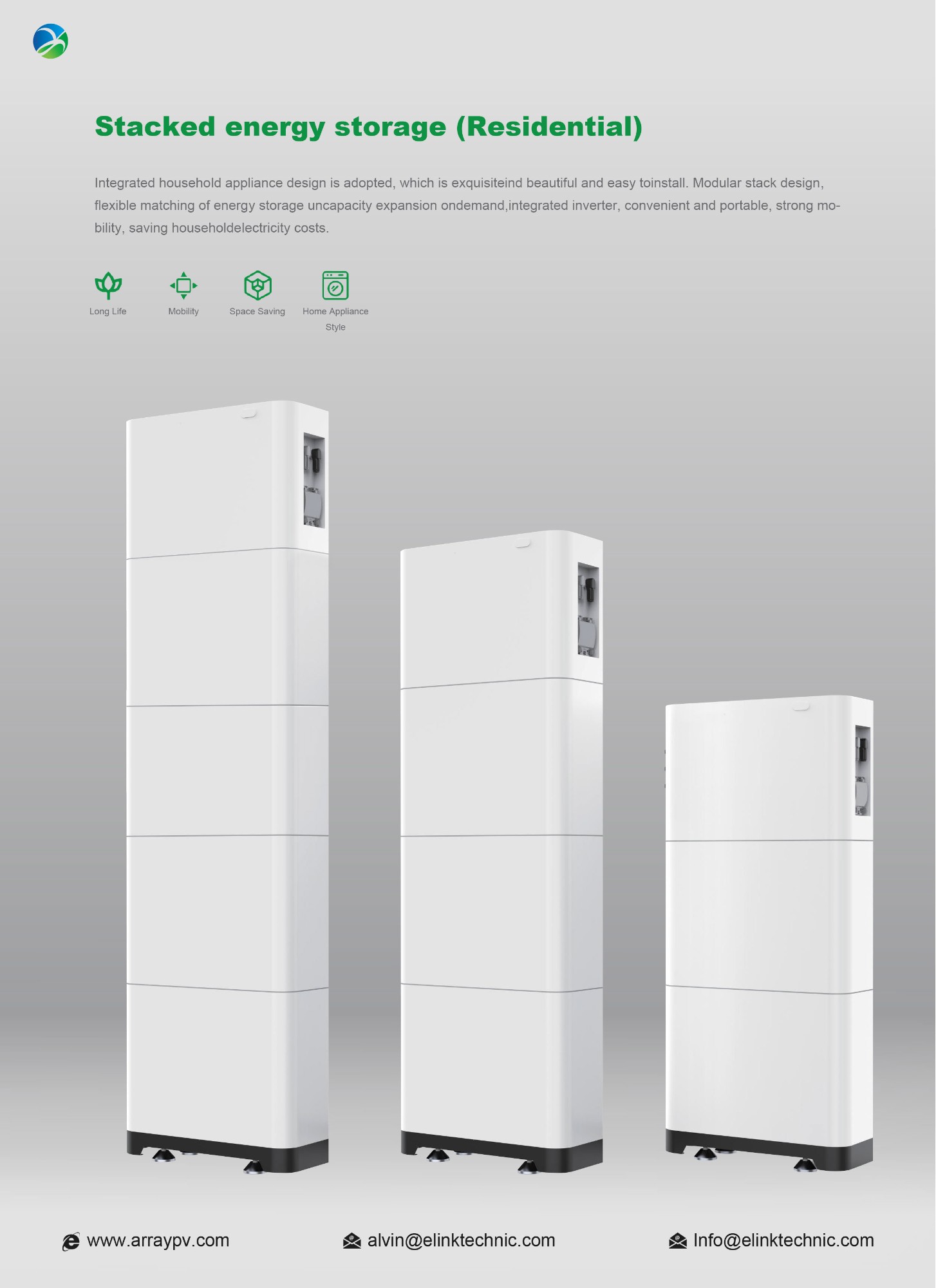

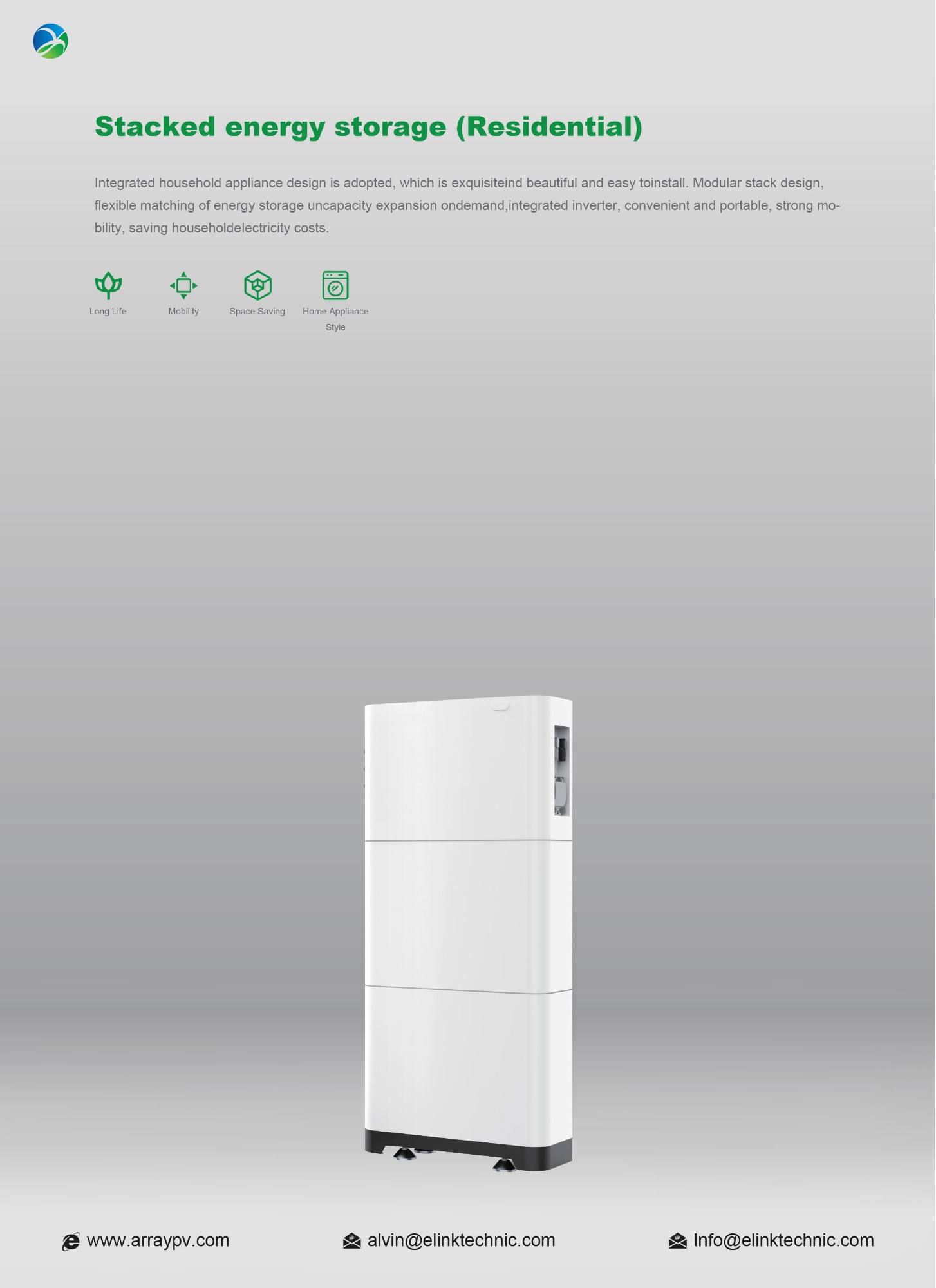

50AH 204.8V 10.24kwh High Voltage Stacked Energy Storage 1

Model		ELKXPSHV20450-1	ELKXPSHV30750-1	ELKXPSHV40950-1
stack quantity		2	3	4
Rated power/kwh		10.24	15.36	20.48
Rated voltage/V		204.8	307.2	409.6
Working voltage range/V		160~233.6	240~350.4	320~467.2
Dimensions/mm (Width × Depth × Height)	high voltage layer	530×190×360
	102.4V 50Ah battery layer	530×190×383
	base	530×190×60
weight/kg	high voltage layer	13
	102.4V 50Ah battery layer	45
	base	8
Discharge rate max		0.8C/40A
Charging rate max		0.5C/25A
Operating temperature	Discharge	-20~55℃
	Charging	0~55℃
Rated Capacity		≥50Ah @23℃ BOL
Protection level		IP54
Charge and discharge efficiency		≥96%
communication method		CAN,RS485
Certification standards
Safety certification certificate		CE, FCC, CCC
Transport safety certification		UN38.3, UN3480, Class 9
