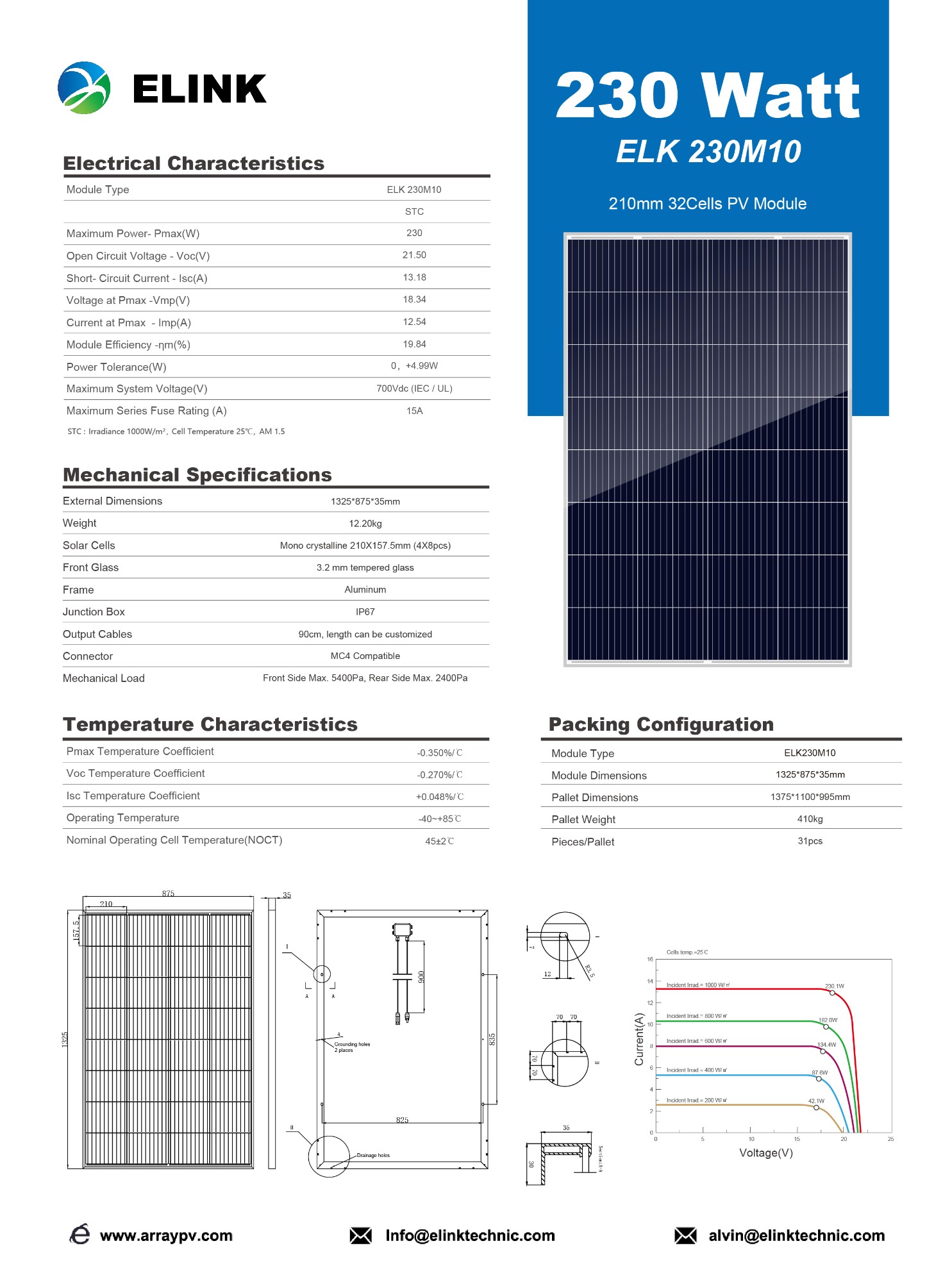

Mechanical Specifications |
|
|
External Dimensions
|
1325x875x35mm
|
|
Weight
|
12.20kg
|
|
Solar Cells
|
Mono crystalline 210x157.5mm (4x8 pcs)
|
|
Front Glass
|
AR Coated 3.2 mm tempered glass
|
|
Frame
|
Anodized aluminum alloy
|
|
Junction Box
|
IP67
|
|
Output Cables
|
4.0mm², 50cm (+), 50cm (-), length can be customized
|
|
Connector
|
MC4 Compatible
|
|
Mechanical Load
|
Front Side Max. 5400Pa, Rear Side Max. 2400Pa
|
Packing Configuration |
||
|
Module Dimensions
|
1325x875x35mm
|
|
|
Pallet Dimensions |
1375x1100x995mm |
|
|
Pallet Weight |
410kg | |
|
Pieces per Pallet
|
31 pcs | |
