100Ah 220V Energy Storage Integrated System

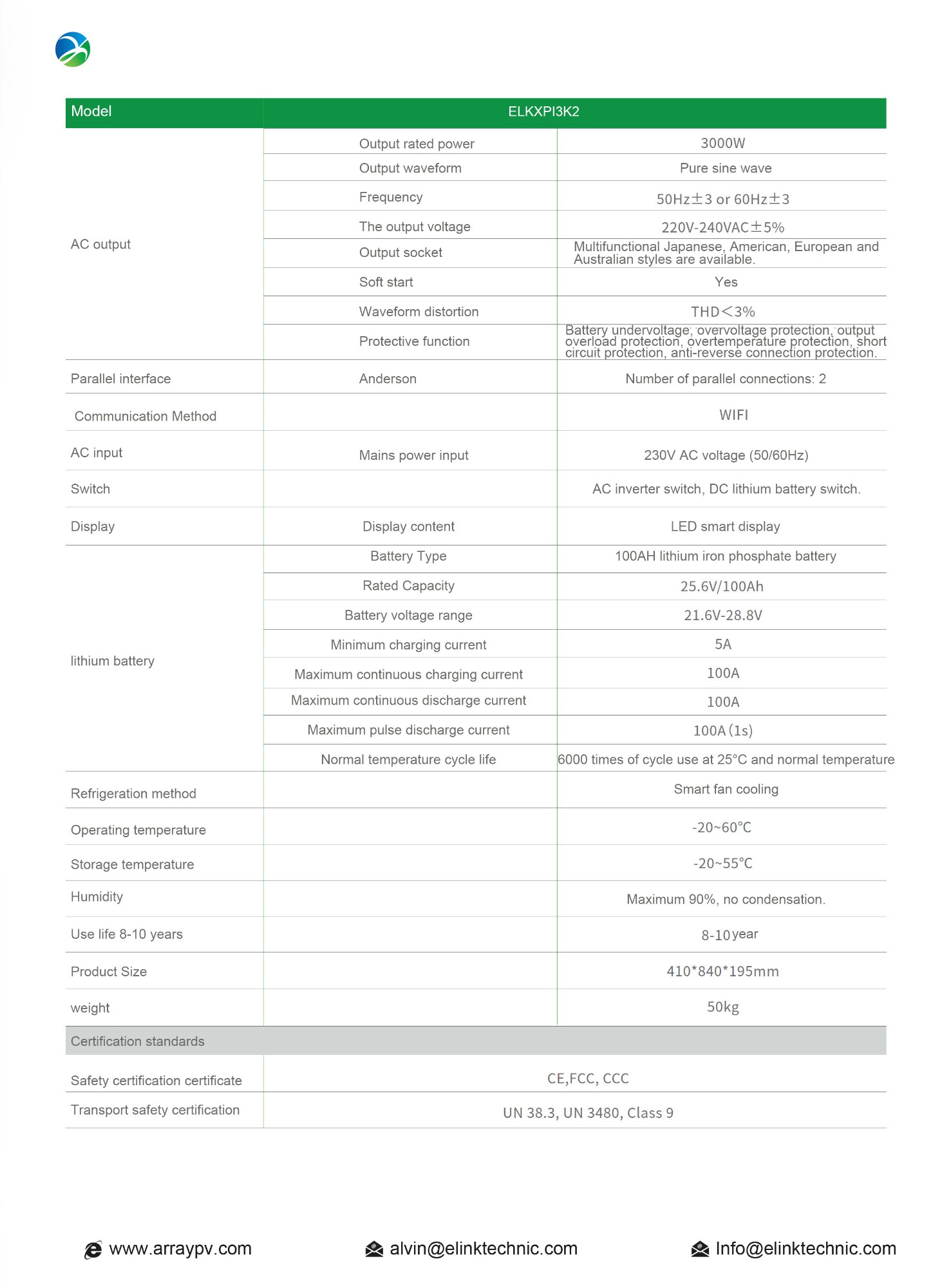

model	ELKXPI3K2
AC output	Output rated power	3000W
	Output waveform	Pure sine wave
	Frequency	(50/60±3)Hz
	The output voltage	220~240VAC±5%
	Output socket	Multifunctional Japanese, American, European and Australian styles are available.
	Soft start	Yes
	Waveform distortion	THD＜3%
	Protective function	Battery undervoltage, overvoltage protection, output overload protection, overtemperature protection, short circuit protection, anti-reverse connection protection.
Parallel interface	Anderson	Number of parallel connections: 2
Communication Method	WIFI
AC input	Mains power input	230V AC voltage (50/60Hz)
Switch		AC inverter switch, DC lithium battery switch.
Display	Display content	LED smart display
lithium battery	Battery Type	100AH lithium iron phosphate battery
	Rated Capacity	25.6V/100Ah
	Battery voltage range	21.6~28.8V
	Minimum charging current	5A
	Maximum continuous charging current	100A
	Maximum continuous discharge current	100A
	Maximum pulse discharge current	100A (1S)
	Normal temperature cycle life	6000 times of cycle use at 25°C and normal temperature
Refrigeration method	Smart fan cooling
Operating temperature	-20~60℃
Storage temperature	-20~55℃
Humidity	Maximum 90%, no condensation.
Use life	8-10 years
Product Size	410×840×195mm
weight	50kg
Certification standards
Safety certification certificate	CE, FCC, CCC
Transport safety certification	UN38.4, UN3480, Class 9
