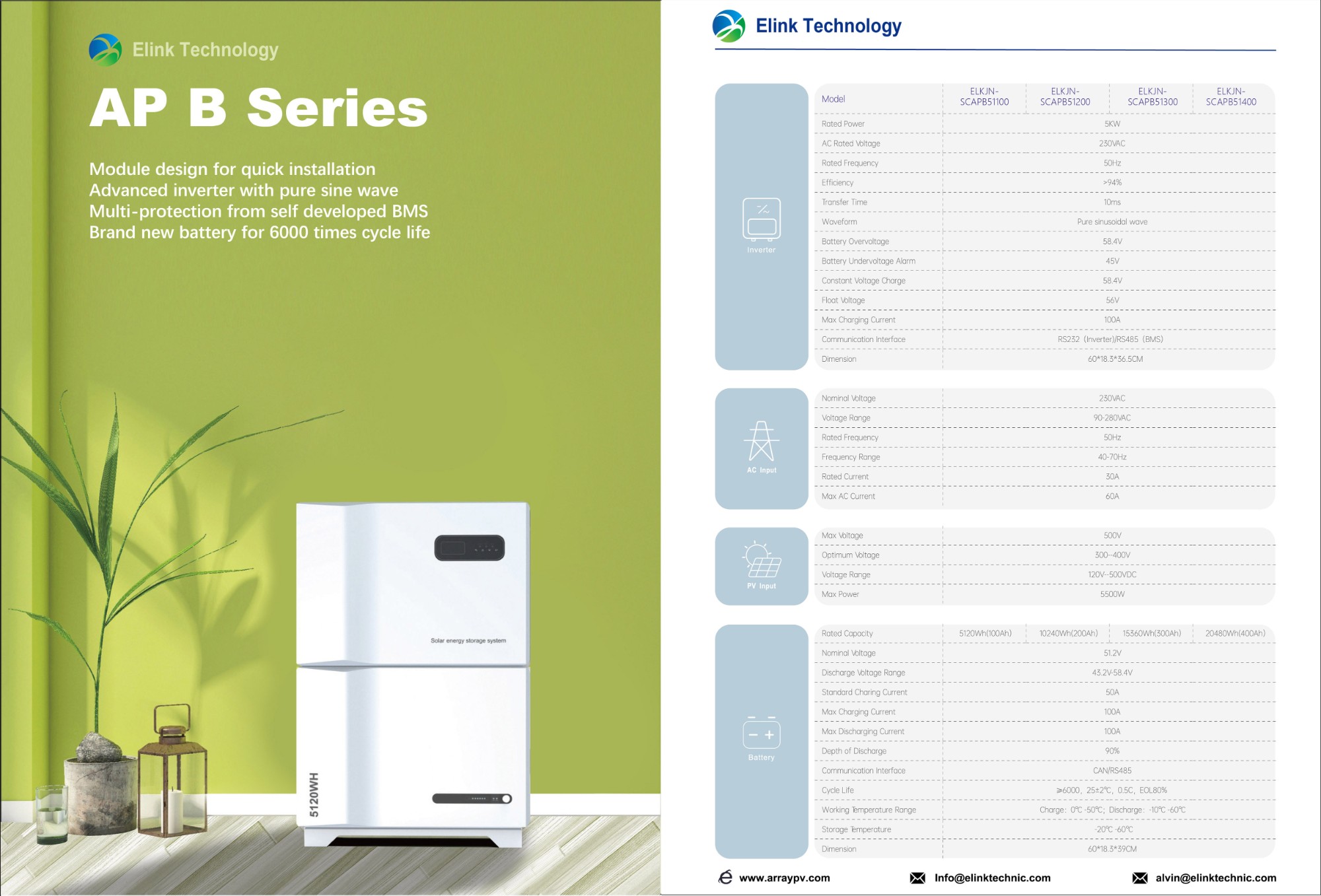

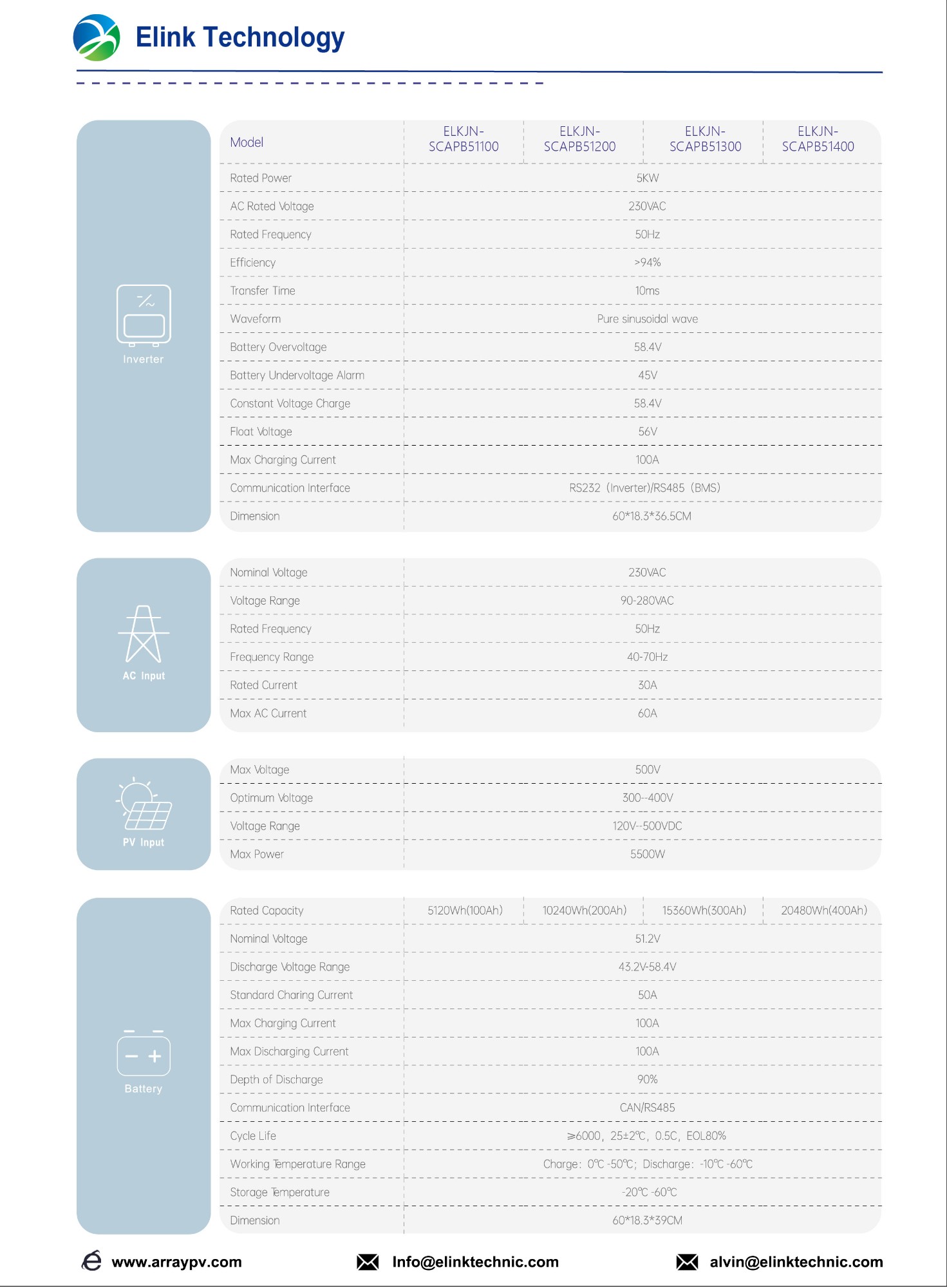

Inverter
|
Model
|
ELKJNSCAPB51100
|
ELKJNSCAPB51200
|
ELKJNSCAPB51300
|
ELKJNSCAPB51400
|
Rated power
|
5kw
|
AC Rated voltage
|
230VAC
|
Rated frequency
|
50Hz
|
Efficiency
|
>94%
|
Transfer time
|
10ms
|
Wave form
|
Pure sine wave
|
Battery overvoltage
|
58.4V
|
Battery undervoltage alarm
|
45V
|
Costant voltage charge
|
58.4V
|
Float voltage
|
56V
|
Max charging current
|
100A
|
Communication interface
|
RS232(Inverter)/RS485(BMS)
|
Dimension
|
60×18.3×36.5cm
|
AC
Input
|
Nominal voltage
|
230VAC
|
Voltage range
|
90~280VAC
|
Rated frequency
|
50Hz
|
Frequency range
|
40~70Hz
|
Rated current
|
30A
|
Max AC current
|
60A
|
PV
Input
|
Max voltage
|
500V
|
Optimum voltage
|
300~400V
|
Voltage range
|
120~500VDC
|
Max power
|
5500w
|
Battery
|
Rated capacity
|
5120wh(100Ah)
|
10240wh(200Ah)
|
15360wh(300Ah)
|
20480wh(400Ah)
|
Nominal voltage
|
51.2V
|
Discharge voltage range
|
43.2~58.4V
|
Standard charging current
|
50A
|
Max charging current
|
100A
|
Max Discharging current
|
100A
|
Depth of discharge
|
90%
|
Communication interface
|
CAN/RS485
|
Cycle life
|
≥6000,25±2℃,0.5C,EOL80%
|
Working temperature Range
|
Charge:0~50℃;Discharge:-10~60℃.
|
Storage temperature
|
-20~60℃.
|
Dimension
|
60×18.3×39cm
|
