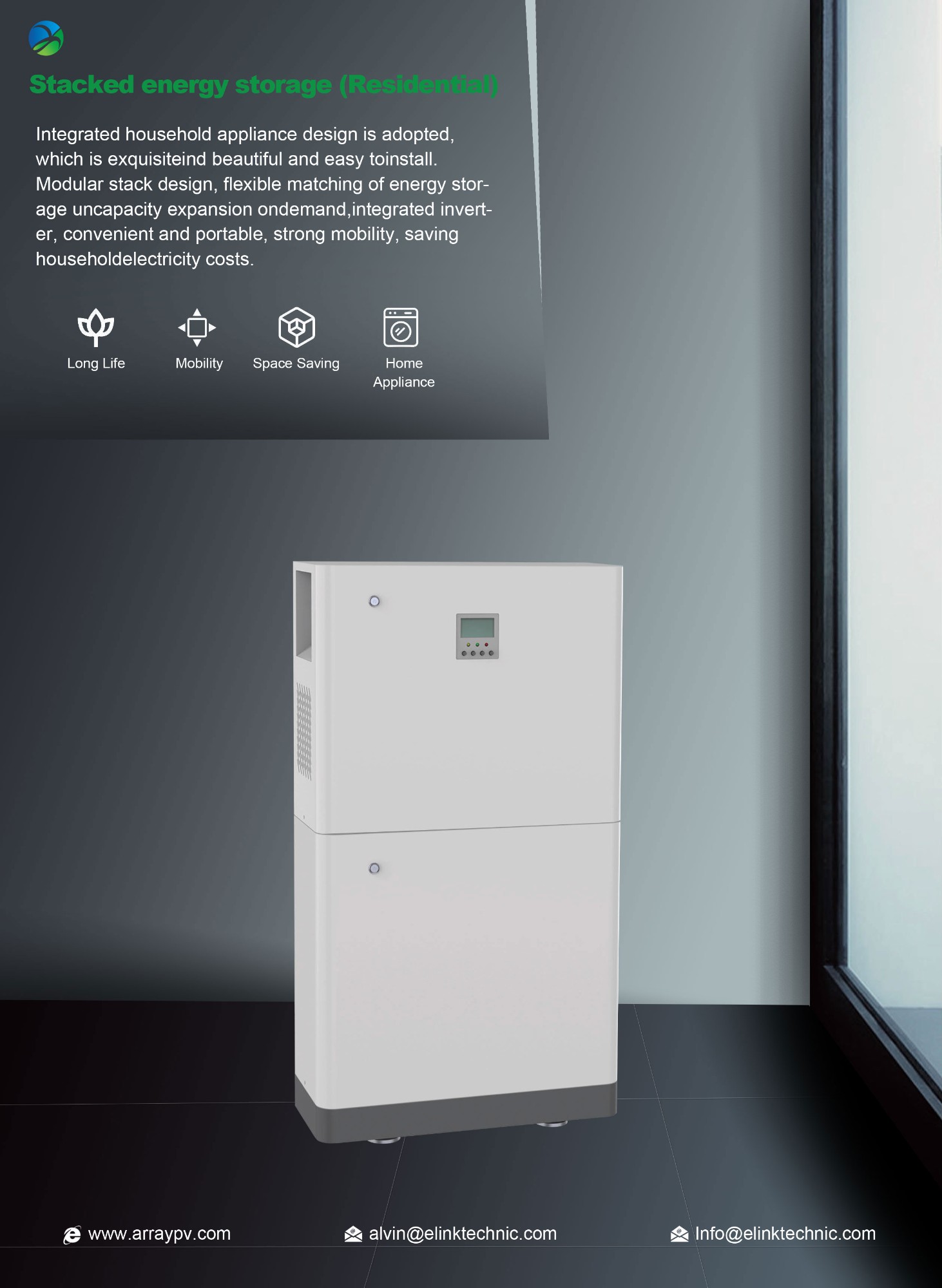

Stacked LV100

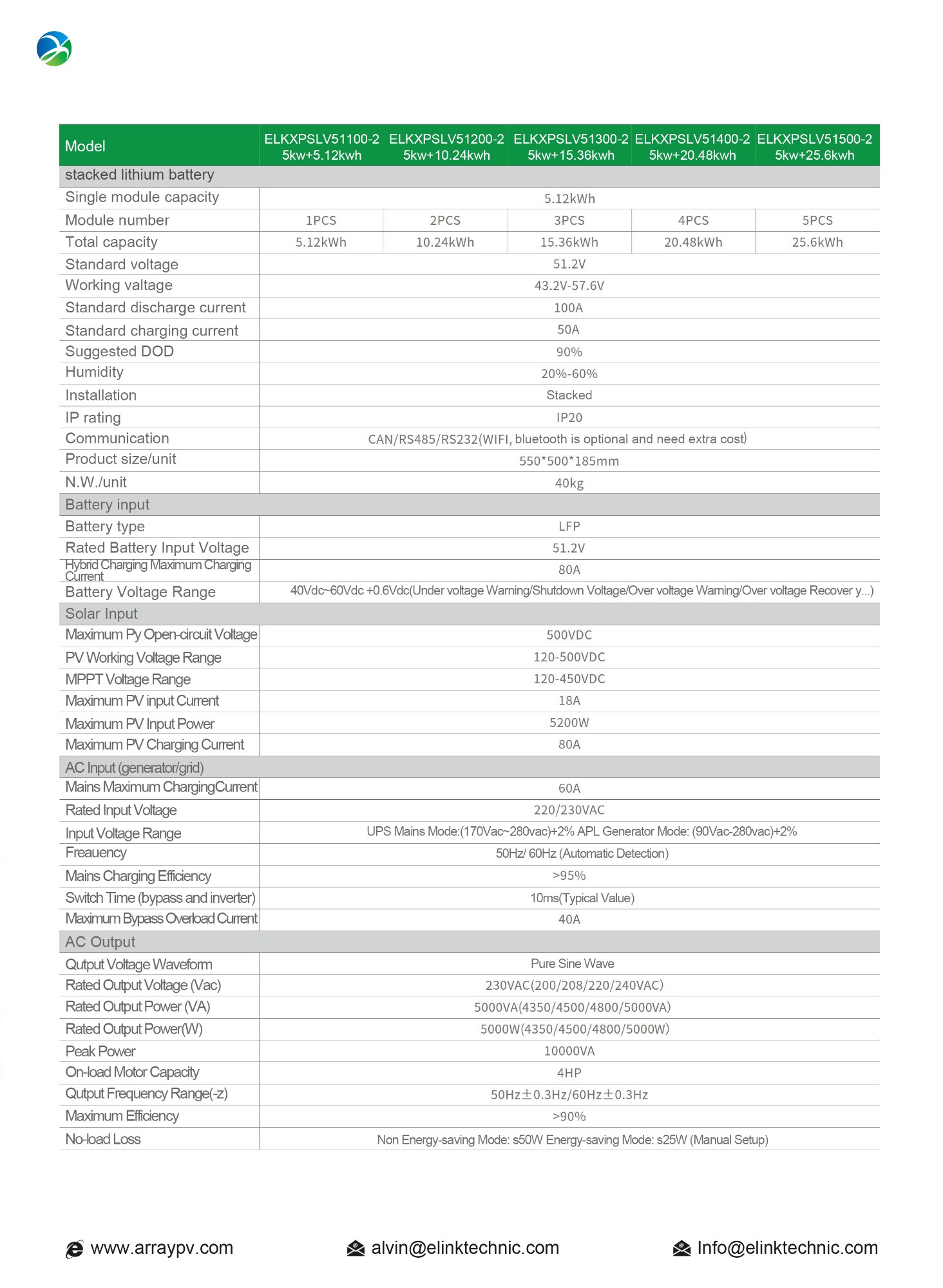

Model		ELKXPSLVI51100-2	ELKXPSLVI51200-2	ELKXPSLVI51300-2	ELKXPSLVI51400-2	ELKXPSLVI51500-2
Stacked lithium battery
Single module capacity		5.12kwh
Module number		1pcs	2pcs	3pcs	4pcs	5pcs
Total capacity		5.12kwh	10.24kwh	15.32kwh	20.48kwh	25.6kwh
Standard voltage		51.2VDC
Working Voltage		43.2~57.6VDC
Standard discharge current		100A	200A	300A	400A	500A
Standard charging current		50A	100A	150A	200A	250A
Suggested DOD		80%
Humidity		20~60%
Installation		stacked
IP rating		IP20
Communication protocol		CAN/RS485/WiFi/4G/Blue Tooth
Dimenstions(mm) (Width × Depth × Height)	Inverter	555×210×510
	Battery	555×210×473	555×210×946	555×210×1419	555×210×1892	555×210×2365
	Base	555×210×110
N.W./unit (kg)	Inverter	15
	Battery	48	96	144	192	240
	Base	15
Battery Input
Battery type		LiFePO4
Rated Battery Input Voltage		51.2V(Minimum Star up voltage 43.2V)
Hybrid Charging Maximum Charging Current		80A
Battery Voltage Range		40~60±0.6VDC(Under Voltage Warning/Shutdown Voltage/Over Voltage Warning/Over Voltage Recovery...)
Solar Input
Maximum PV Open-circult Voltage		500VDC
PV Working Voltage Range		120~500VDC
MPPT Voltage Range		120~450VDC
Maximum PV Input Current		18A
Maximum PV Input Power		5200W
Maximum PV Charging Current		80A
AC Input(generator/grid)
Mains Maximum Charging Current		60A
Rated Input Voltage		220/230VAC
Input Voltage Range		UPS Mains Mode:(170~280VAC)±2%
		APL Generator Mode:(90~280VAC)±2%
Frequency		50/60Hz(Automatic Detection)
Mains Charging Efficiency		>95%
Switch Time(oypass and inverter)		10ms(Typical Value)
Maximum Bypass Overload Current		40A
AC Output
Output Voltage Waveform		Pure Sine Wave
Rated Output Voltage(VAC)		230(200/208/220/240)VAC
Rated Output Power(w)		5000(4350/4500/4800/5000)w
Peak Power		10000w
On-load Motor Capacity		4HP
Output Frequency Range(Hz)		50/60±0.3Hz
Maximum Efficiency		>90%
No-load Loss		Non Energy Saving Mode:≤50w
		Energy Saving Mode:≤25w(Manual Setup)
