Backup Battery

Backup Battery 12.8V 100Ah

  • Product Detail

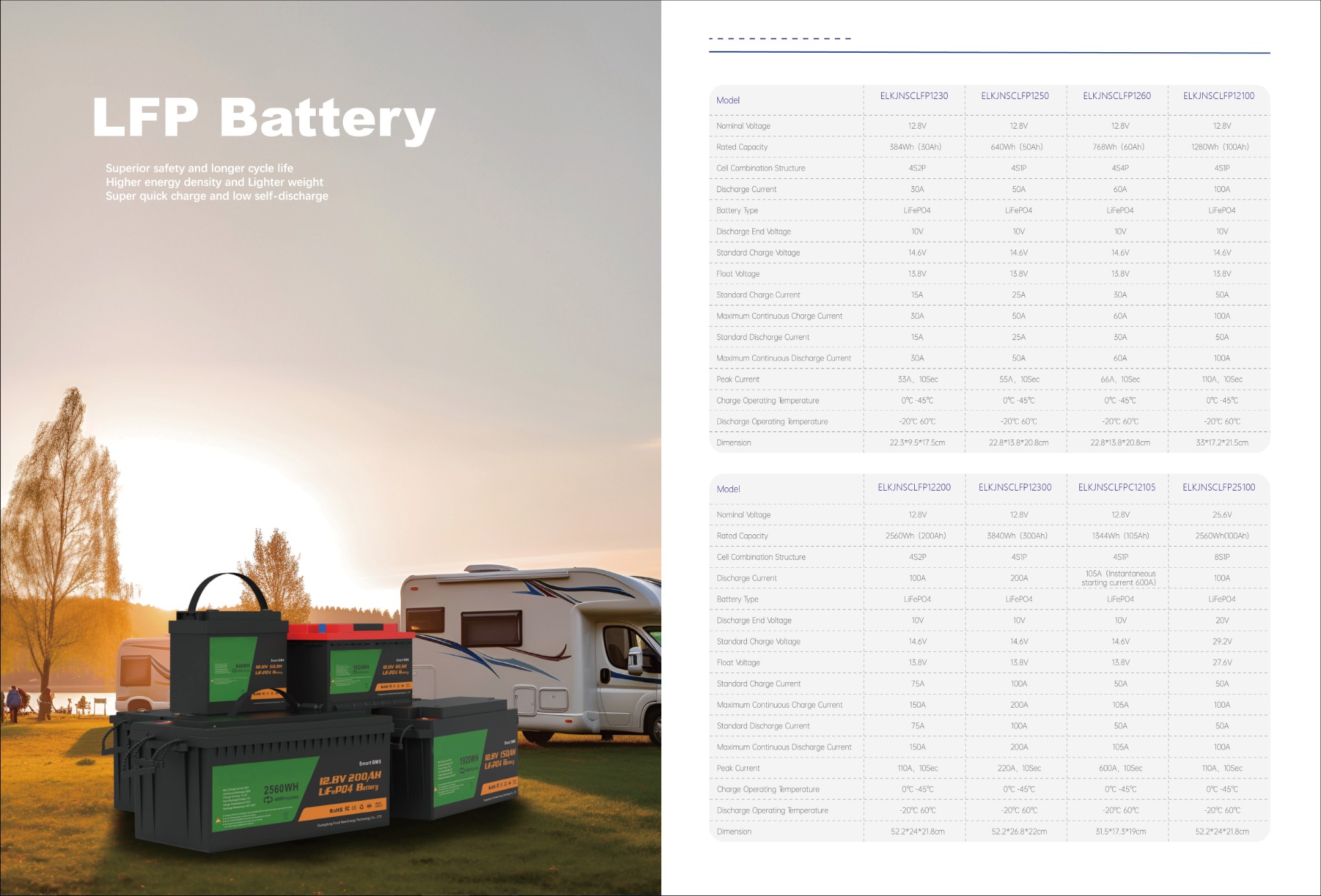

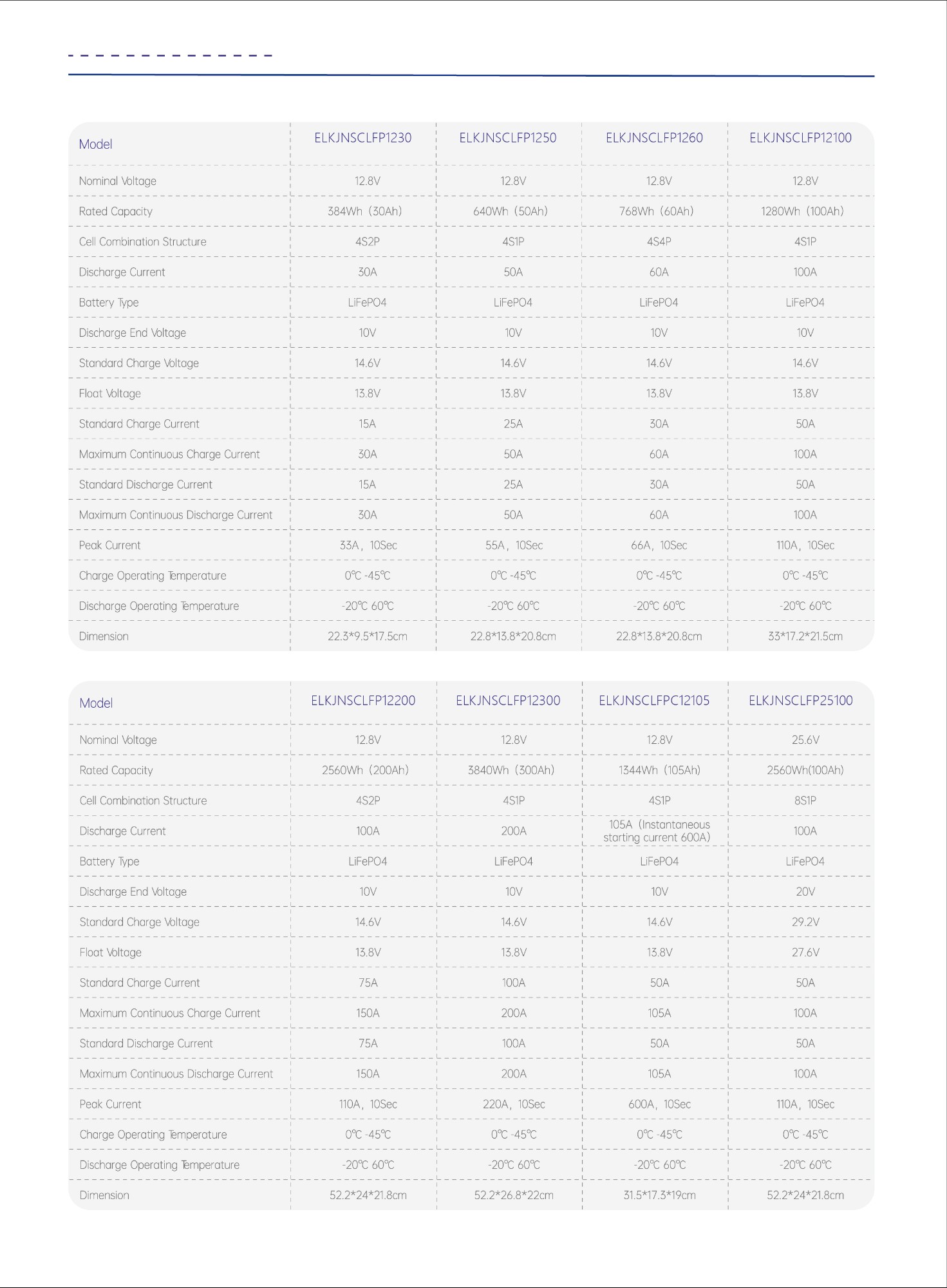

Model ELKJNSCLFP1230 ELKJNSCLFP1250 ELKJNSCLFP1260 ELKJNSCLFP12100
Nominal voltage 12.8V
Rated capacity 384wh(30Ah) 640wh(50Ah) 768wh(60Ah) 1280wh(100Ah)
Cell combinate structrue 4S2P 4S1P 4S4P 4S1P
Discharging current 30A 50A 60A 100A
Battery type LFP4
Discharge end voltage 10V
Standard charging voltage 14.6V
Float voltage 13.8V
Standard charging current 15A 25A 30A 50A
Maximum continuous charge current 30A 50A 60A 100A
Standard discharging current 15A 25A 30A 50A
Maximum continuous discharge current 30A 50A 60A 100A
Peak current 33A,10Sec 55A,10Sec 66A,10Sec 100A,10Sec
Charge operating temperature 0~45℃
Discharge operating temperature -20~60℃
Dimension 22.3×9.5×17.5cm 22.8×13.8×20.8cm 22.8×13.8×20.8cm 33×17.2×21.5cm
