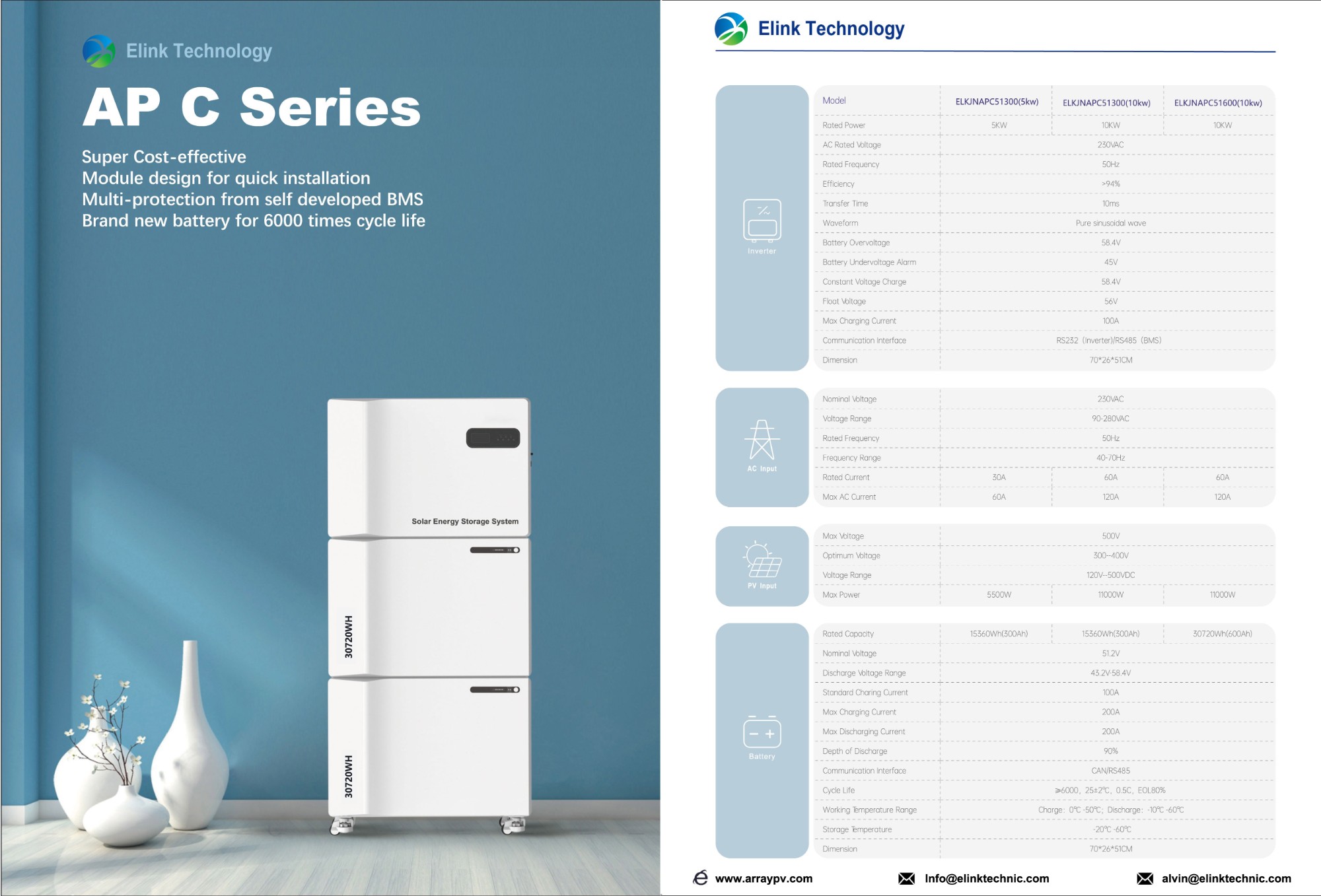

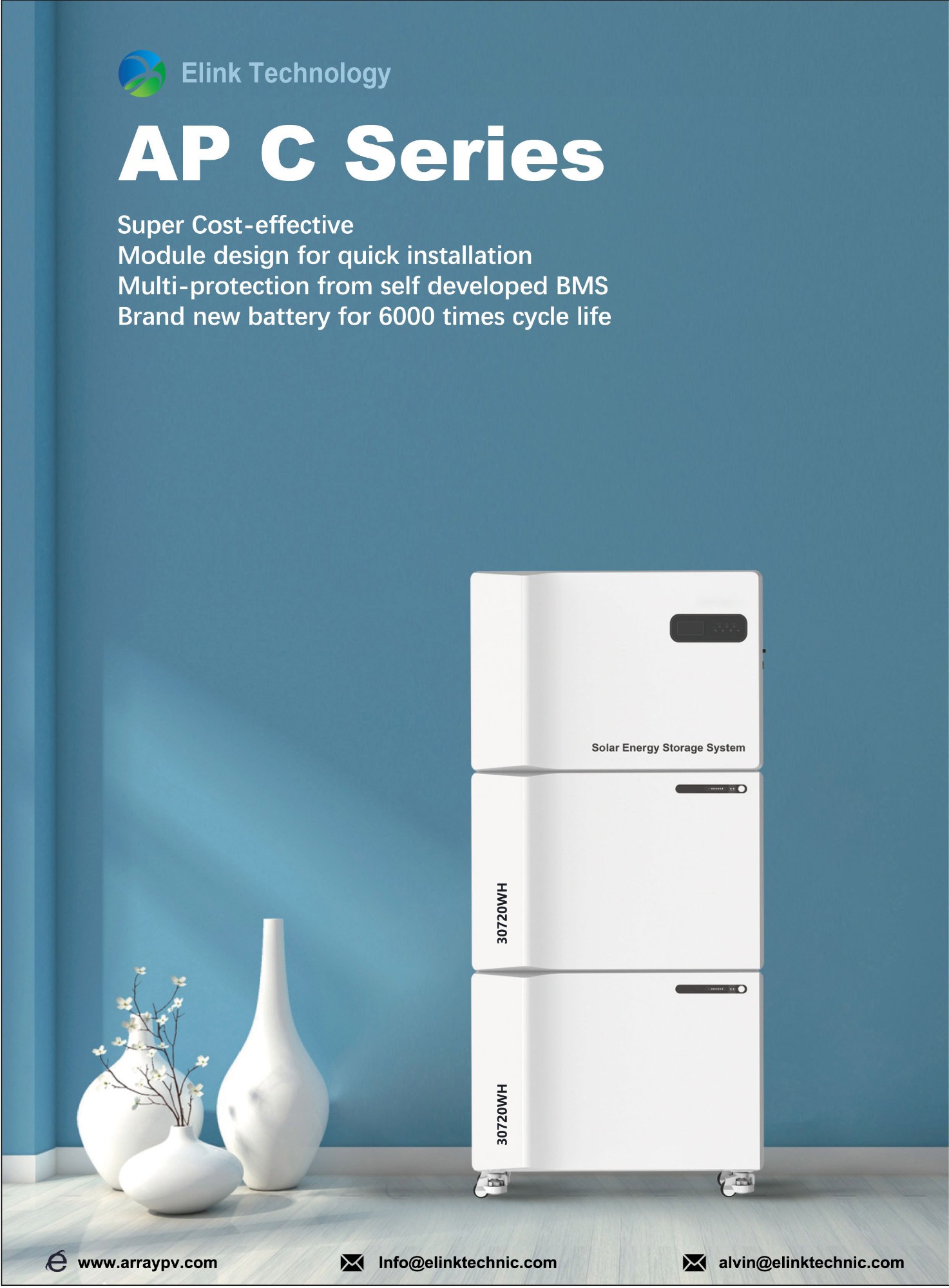

Stacked 51.2V 600AH-1

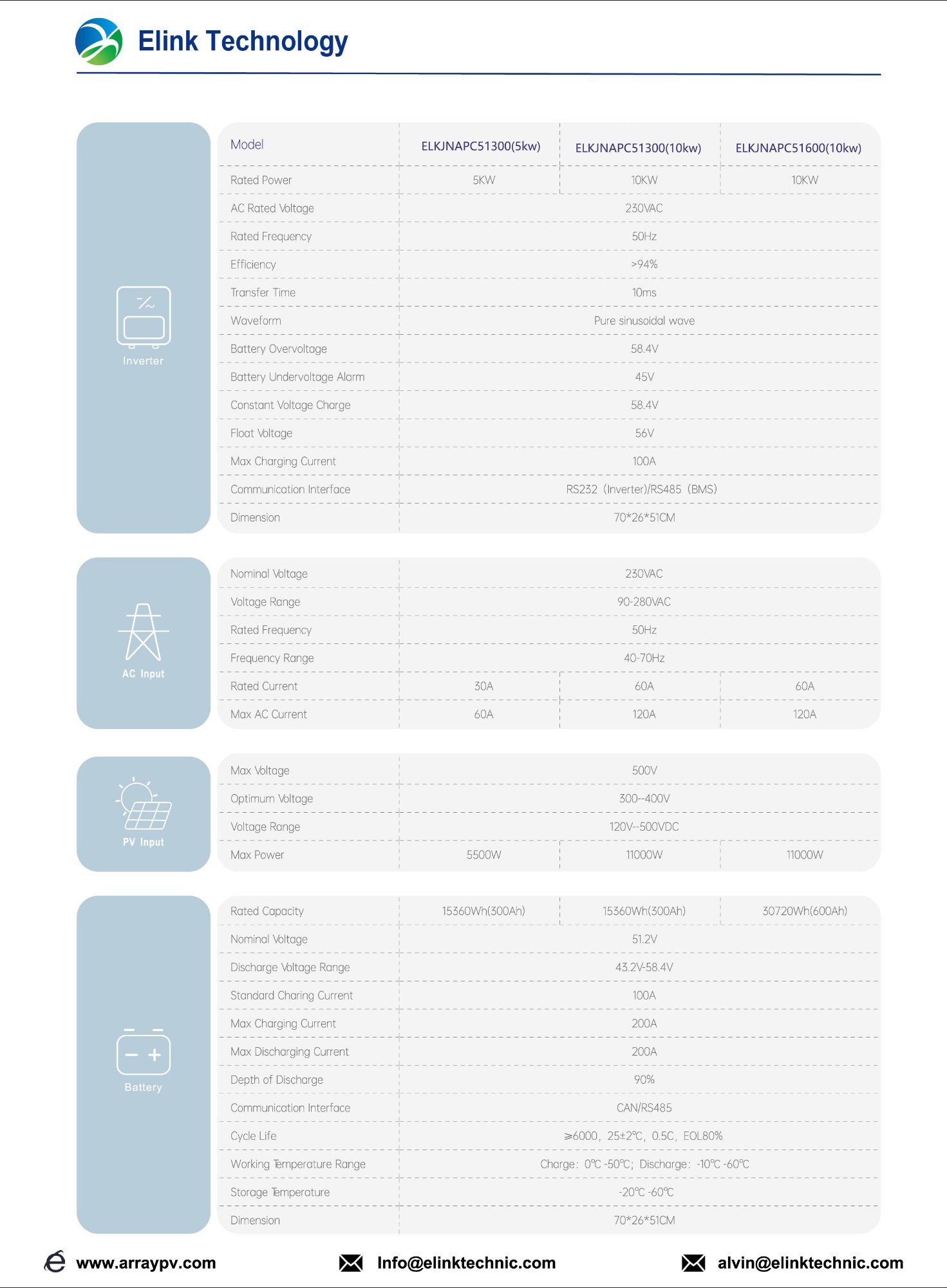

Inverter	Model	ELKJNSCAPC51300(5kw)	ELKJNSCAPB51300(10kw)	ELKJNSCAPB51600(10kw)
	Rated power	5kw	10kw	10kw
	AC Rated voltage	230VAC
	Rated frequency	50Hz
	Efficiency	＞94%
	Transfer time	10ms
	Wave form	Pure sine wave
	Battery overvoltage	58.4V
	Battery undervoltage alarm	45V
	Costant voltage charge	58.4V
	Float voltage	56V
	Max charging current	100A
	Communication interface	RS232(Inverter)/RS485(BMS)
	Dimension	70×26×51cm
AC Input	Nominal voltage	230VAC
	Voltage range	90～280VAC
	Rated frequency	50Hz
	Frequency range	40～70Hz
	Rated current	30A	60A	60A
	Max AC current	60A	120A	120A
PV Input	Max voltage	500V
	Optimum voltage	300～400V
	Voltage range	120～500VDC
	Max power	5500w	11000w	11000w
Battery	Rated capacity	15360wh(300Ah)	15360wh(300Ah)	30720wh(600Ah)
	Nominal voltage	51.2V
	Discharge voltage range	43.2～58.4V
	Standard charging current	100A
	Max charging current	200A
	Max Discharging current	200A
	Depth of discharge	90%
	Communication interface	CAN/RS485
	Cycle life	≥6000,25±2℃，0.5C，EOL80%
	Working temperature Range	Charge:0～50℃；Discharge:-10～60℃.
	Storage temperature	-20～60℃.
	Dimension	70×26×51cm
