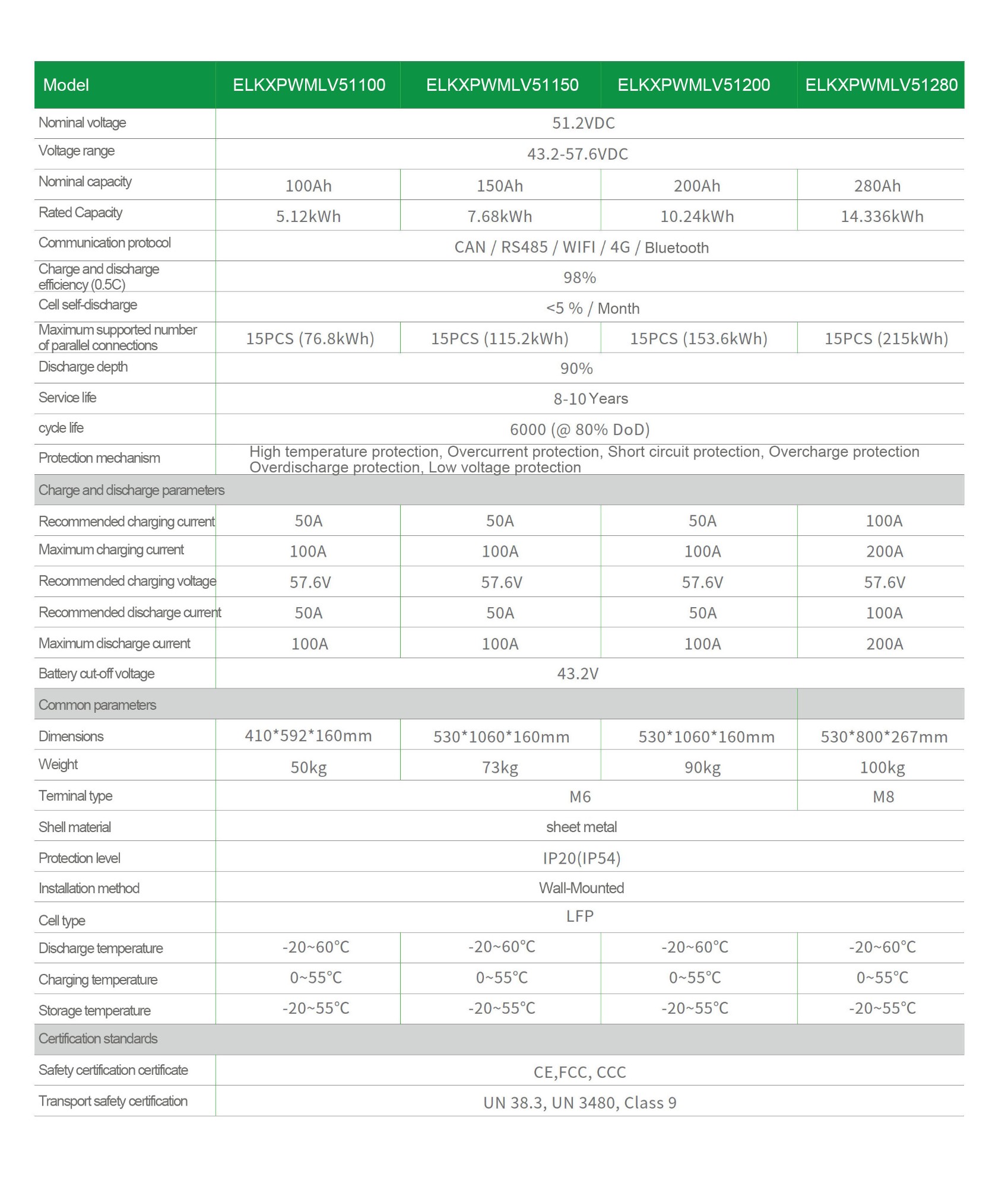

Model ELKXPWMLV51150-1 |
|
|
Standard voltage |
51.2VDC |
| Voltage |
43.2~57.6VDC |
|
Nominal Capacity |
150AH |
|
Rate Capacity |
7.68KWh |
|
Communication protocol |
CAN/RS485/WiFi/4G/Blue Tooth |
|
Efficiency (at 0.5C) |
98% |
|
Cell self-discharge |
<5%/Month |
|
Maximum Allowed Module in Parallet |
15(115.2KWh) |
|
Depth of Discharge |
up to 100% |
|
Useful Life |
8~10 Years |
|
Cycle Life |
6000(80% DoD) |
|
Protection |
Over temperature, over current, short circuit, over-charging, over-discharging, Low voltage. |
Charge Specifications |
|
|
Recommended Charge Current |
50A |
|
Maximum Charge Current |
100A |
|
Recommended Charge Voltage |
51.2V |
| Maximum Charging Voltage | 57.6V |
Discharge Specifications |
|
|
Recommended Discharge Current |
50A |
|
Maximum Discharge Current |
100A |
|
Recommended Low Voltage Discorrent |
43.2V |
|
Battery Low Voltage Protection |
39.75V |
|
Battery Recovery Voltage |
45V |
Mechanical Specifications |
|
|
Dimenstions |
530×1060×160mm |
|
Weight |
73kg |
|
Terminal Type |
M6 |
|
Case Material |
Industrial Grade Iron |
|
Ingress Protection |
IP20 |
|
Installation |
Cabinet or Wall installation |
|
Cell Typo Chemistry |
LiFePO4 |
Compliance Specifications |
|
|
Certifications |
CE, FCC, CCC |
|
Shipping Classification |
UN38.3, UN3480, Class 9 |
Temperature Specifications |
|
|
Discharge Temperature |
-20~65℃ |
| Charge Temperature |
0~55℃ |
|
Storage Temperature |
-20~45℃ |
