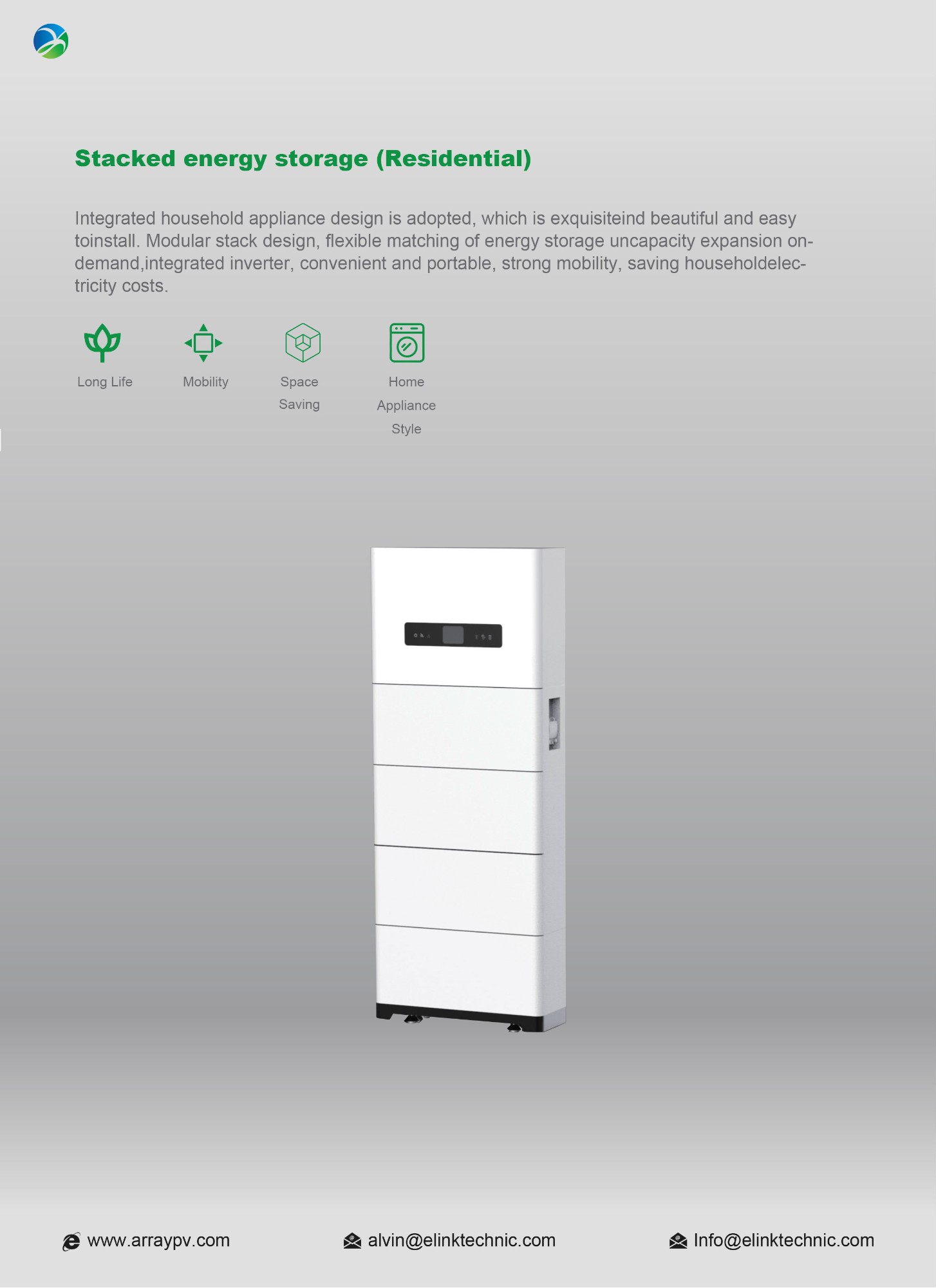

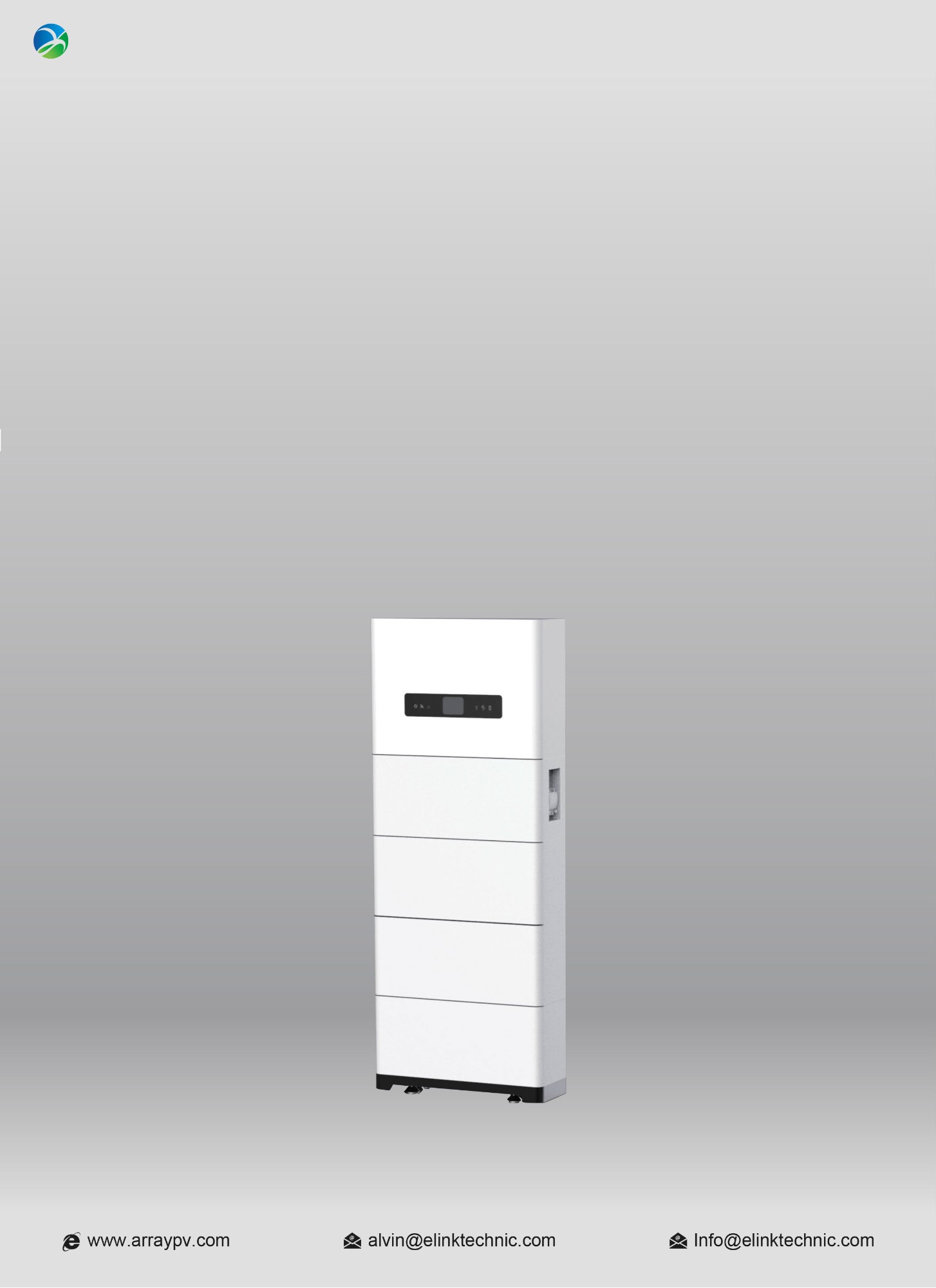

Stacked HV30750-2

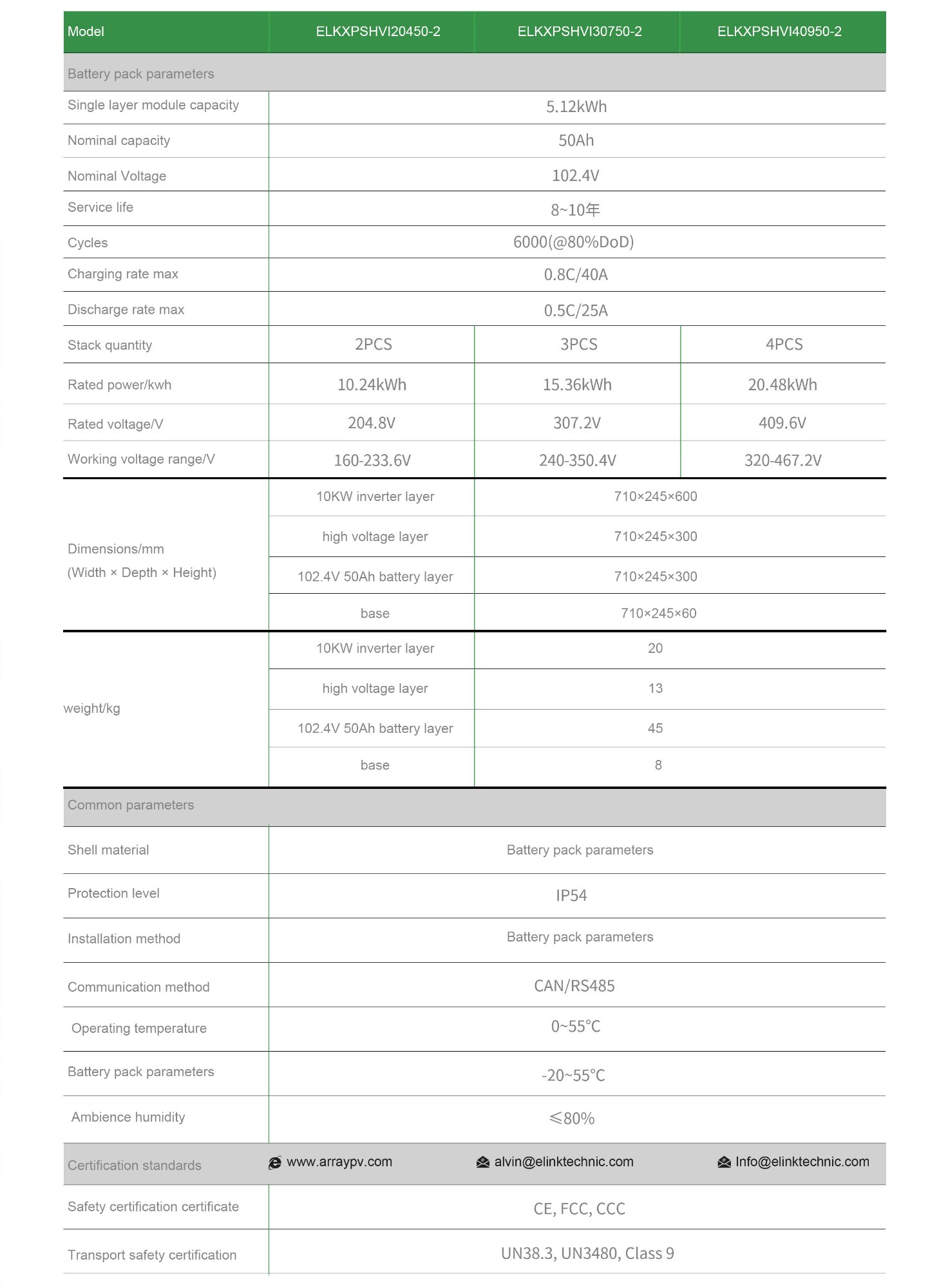

Model		ELKXPSHVI20450-2	ELKXPSHVI30750-2	ELKXPSHVI40950-2
Battery pack parameters
Single layer module capacity		5.12kwh
Nominal capacity		50Ah
Nominal Voltage		102.4V
Service life		8~10Years
Cycles		6000(@80%DoD)
Charging rate max		0.8C/40A
Discharge rate max		0.5C/25A
Stack quantity		2	3	4
Rated power/kwh		10.24	15.36	20.48
Rated voltage/V		204.8	307.2	409.6
Working voltage range/V		160~233.6	240~350.4	320~467.2
Dimensions/mm (Width × Depth × Height)	10KW inverter layer	710×245×600
	high voltage layer	710×245×300
	102.4V 50Ah battery layer	710×245×300
	base	710×245×60
weight/kg	10KW inverter layer	20
	high voltage layer	13
	102.4V 50Ah battery layer	45
	base	8
Common parameters
Shell material		Sheet Metal
Protection level		IP54
Installation method		Stacked
Communication method		CAN,RS485
Operating temperature		0~55℃
Storage temperature		-20~55℃
Ambience humidity		≤80%
Certification standards
Safety certification certificate		CE, FCC, CCC
Transport safety certification		UN38.3, UN3480, Class 9
