Jilin Elink Technology Co.,Ltd.

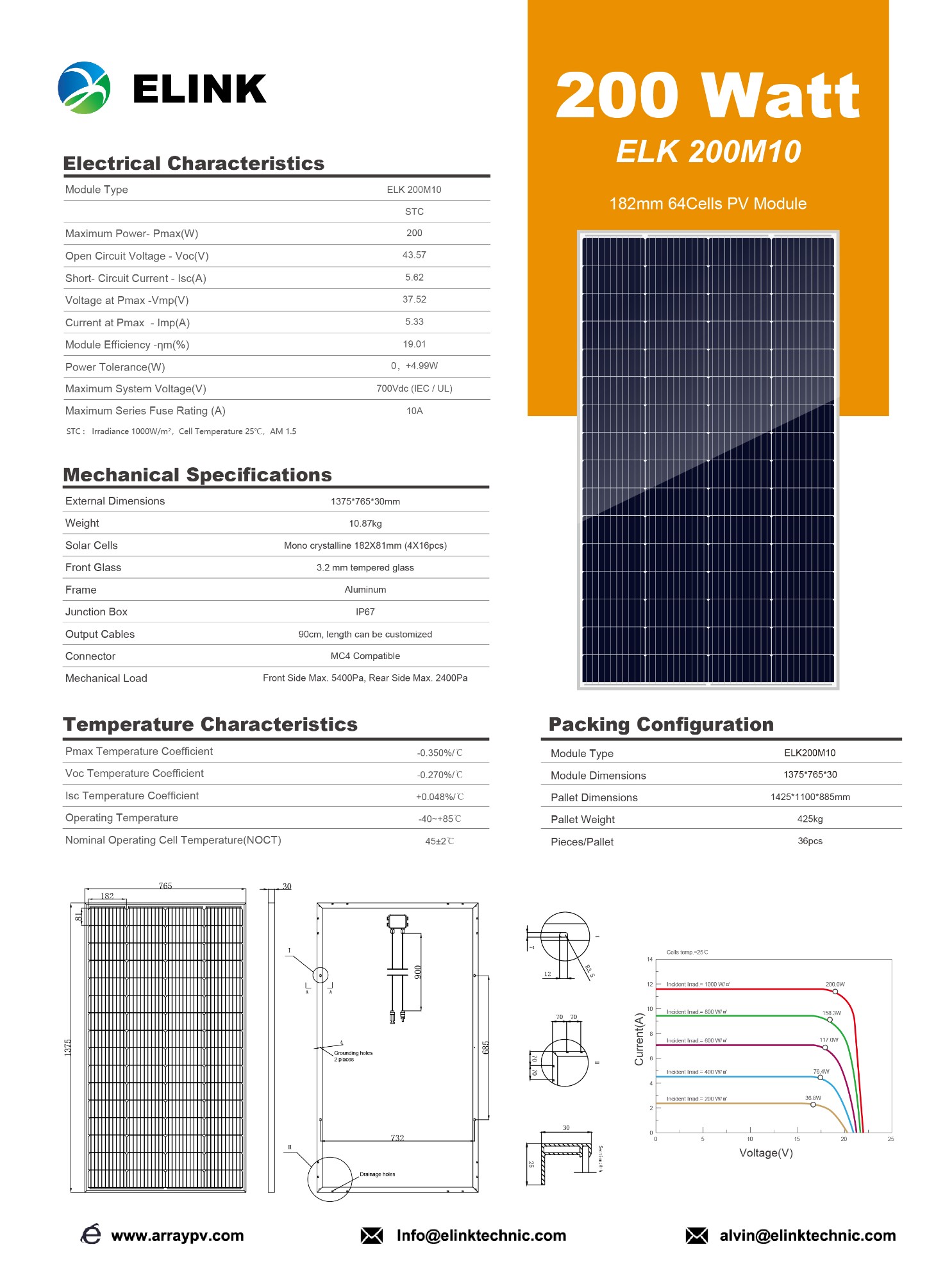

Mechanical Specifications |
|
|
External Dimensions
|
1375x765x30mm
|
|
Weight
|
10.87kg
|
|
Solar Cells
|
Mono crystalline 182x81mm (4x16pcs)
|
|
Front Glass
|
AR Coated 3.2 mm tempered glass
|
|
Frame
|
Anodized aluminum alloy
|
|
Junction Box
|
IP67
|
|
Output Cables
|
4.0mm², 50cm (+), 50cm (-), length can be customized
|
|
Connector
|
MC4 Compatible
|
|
Mechanical Load
|
Front Side Max. 5400Pa, Rear Side Max. 2400Pa
|
Packing Configuration |
||
|
Module Dimensions
|
1375x765x30mm
|
|
|
Pallet Dimensions |
1425x1100x885mm |
|
|
Pallet Weight |
425kg | |
|
Pieces per Pallet
|
36 | |
