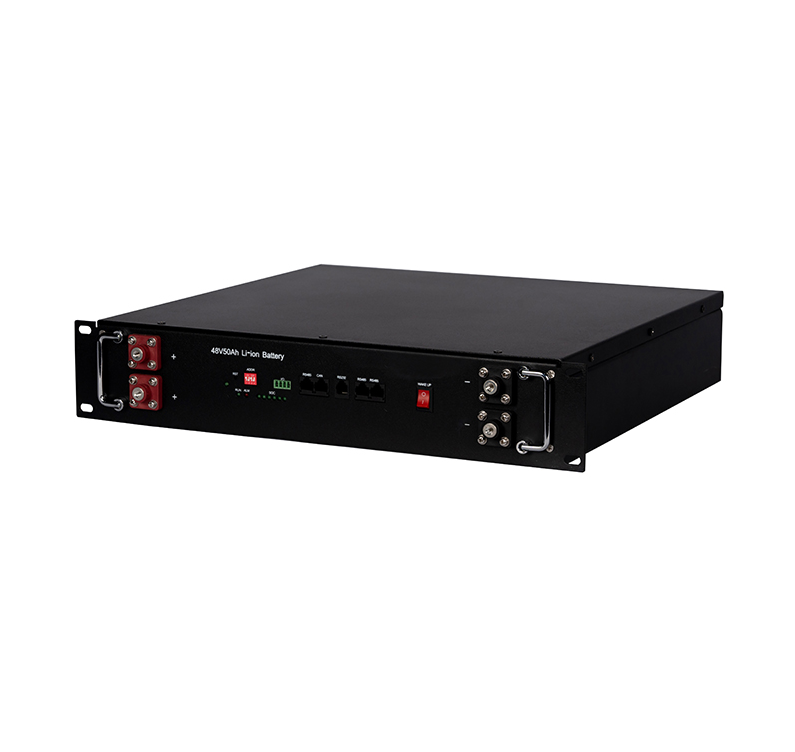

Rack-mounted 51100

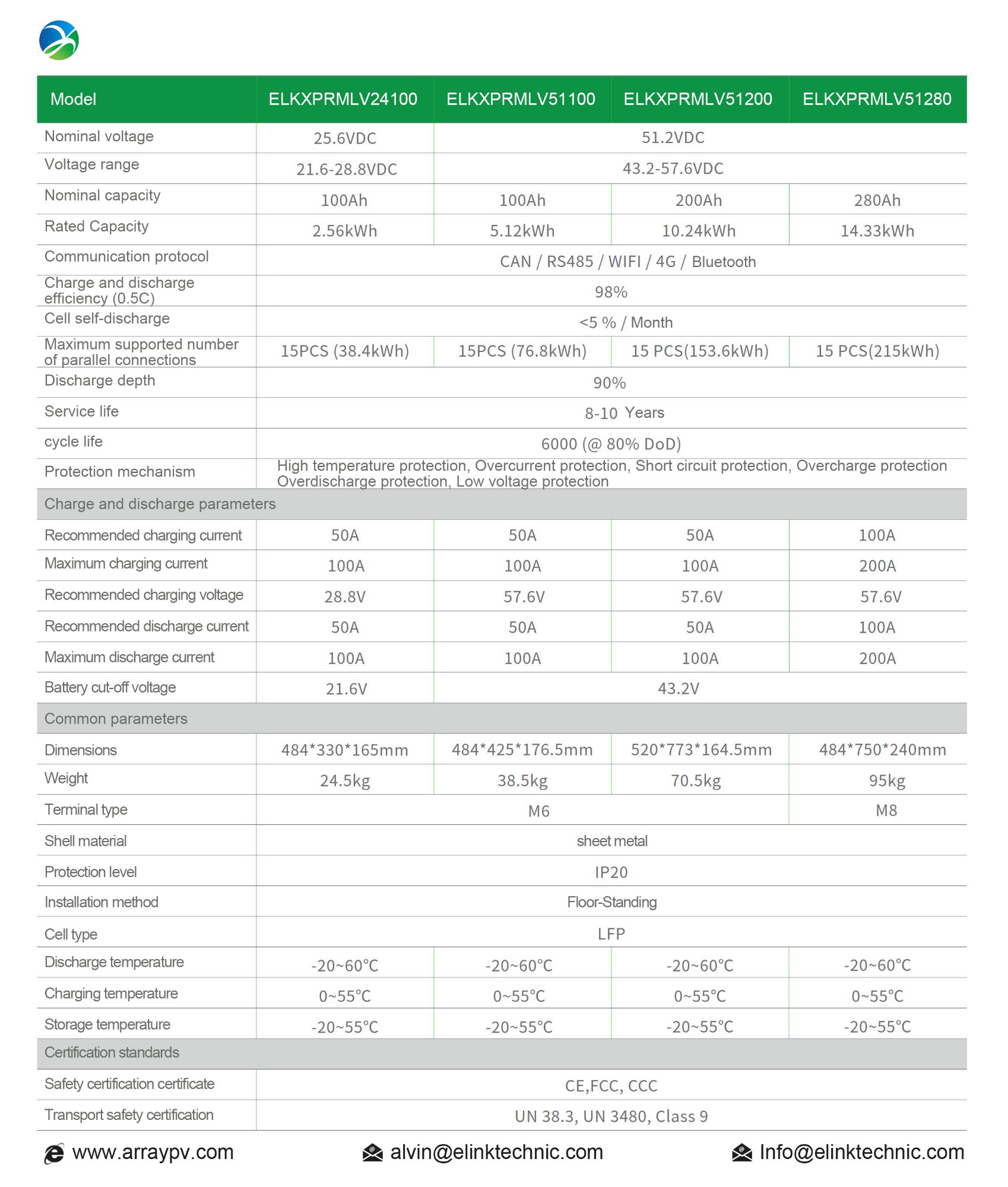

Model	ELKXPRMLV24100	ELKXPRMLV51100	ELKXPRMLV51200	ELKXPRMLV51280
Nominal voltage	25.6VDC	51.2VDC
Voltage range	21.6~28.8VDC	43.2~57.6VDC
Nominal capacity	100Ah	100Ah	200Ah	280Ah
Rated Capacity	2.56kwh	5.12kwh	10.24kwh	14.33kwh
Communication protocol	CAN/RS485/WIFI/4G/Bluetooth
Charge and discharge efficiency (0.5C)	98%
Cell self-discharge	＜5%/Month
Maximum supported number of parallel connections	15PCS(38.4kwh)	15PCS(76.8kwh)	15PCS(153.6kwh)	15PCS(215kwh)
Discharge of depth	90%
Service life	8~10Years
cycle life	6000( @80% DoD )
Protection mechanism	High temperature protection, Overcurrent protection, Short circuit protection, Overcharge protection, Overdischarge protection, Low voltage protection
Charge and discharge parameters
Recommended charging current	50A	50A	50A	100A
Maximum charging current	100A	100A	100A	200A
Recommended charging voltage	28.8V	57.6V	57.6V	57.6V
Recommended discharge current	50A	50A	50A	100A
Maximum discharge current	100A	100A	100A	200A
Battery cut-off voltage	21.6V	43.2V
Common parameters
Dimensions	484×330×165mm	484×425×176.5mm	520×773×164.5mm	484×750×240mm
Weight	24.5kg	38.5kg	70.5kg	95kg
Terminal type	M6			M8
Shell material	Sheet metal
Protection level	IP20

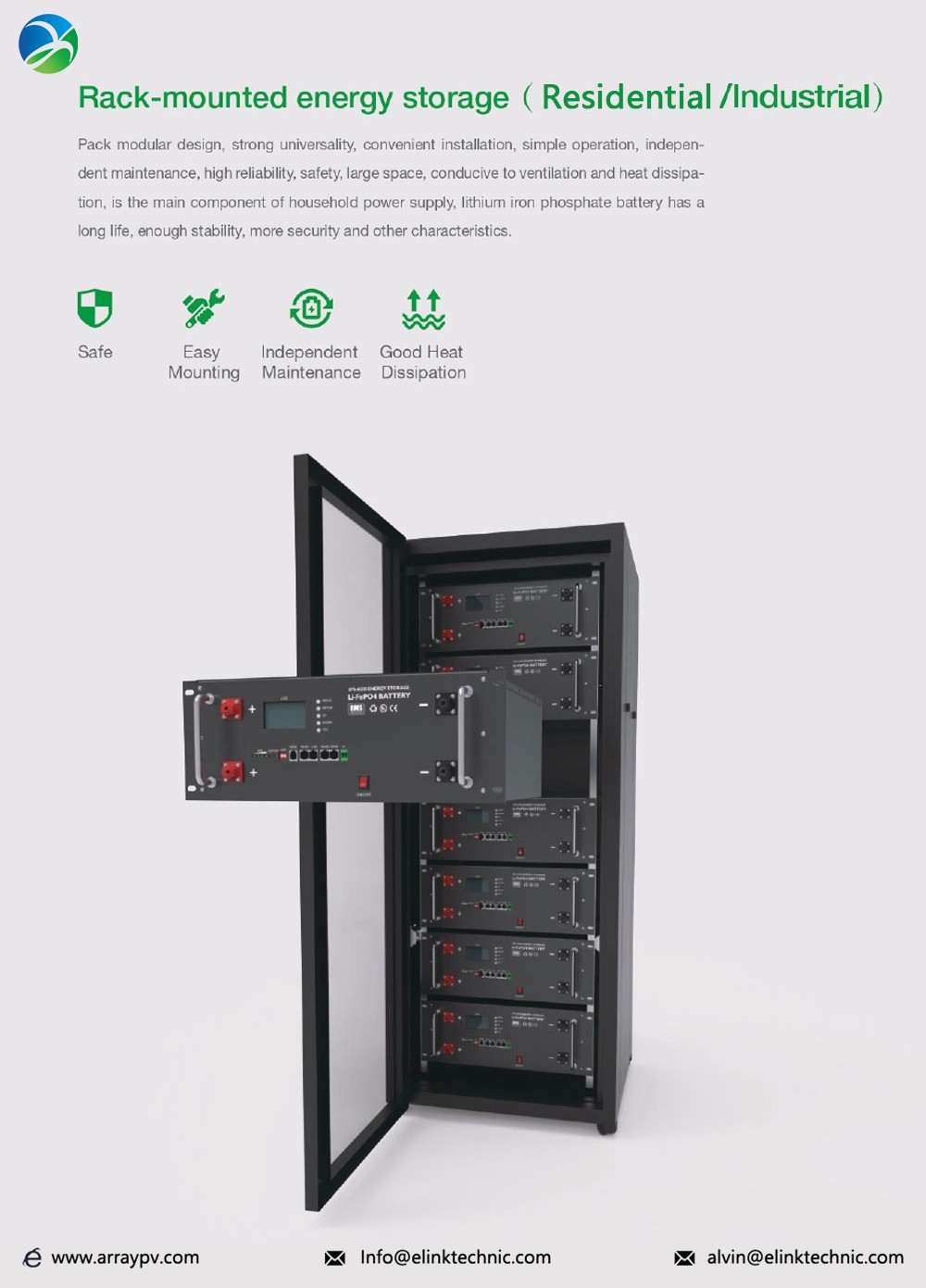

Installation method	Rack-mounted
Cell type	LFP
Discharge temperature	-20~60℃
Charging temperature	0~55℃
Storage temperature	-20~55℃
Certification standards
Safety certification certificate	CE, FCC, CCC
Transport safety certification	UN38.3, UN3480, Class 9
