182mm 440~460Wp PERC

182mm 440~460Wp PERC

PERC 182mm Solar Cell with Solar Panel's efficiency up to 21.47%.

182mm solar panel use 182mm 10BB/11BB solar cell, increases the wafer size, optimizes the layout profoundly and decreases the invalid power gereration area.

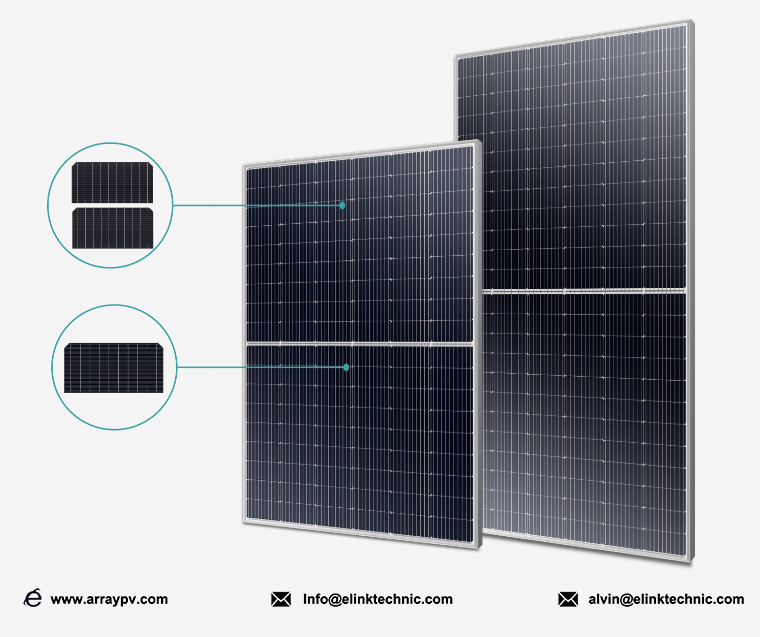

1.Half Cell Technology
The half-cut cell design can decrease the power loss by the shadow effectively.The optimized circuit design not only realizes the maxium power output but also assures the reliability of solar panels.

2.MBB Technology
182mm Solar Panel adopts multi-busbar technology. More busbar of the cell decrease the current transverse propagation path by 50%, effectively reduce the internal loss, and improve power of solar panels.

Product Detail

Mechanical Specifications
External Dimensions	1909x1134x35mm
Weight	24kg
Solar Cells	Mono crystalline 182mm (2x54pcs)
Front Glass	AR Coated 3.2 mm tempered glass
Frame	Anodized aluminum alloy
Junction Box	IP68
Output Cables	4.0mm², 50cm (+), 50cm (-), length can be customized
Connector	MC4 EVO2
Mechanical Load	Front Side Max. 5400Pa, Rear Side Max. 2400Pa
