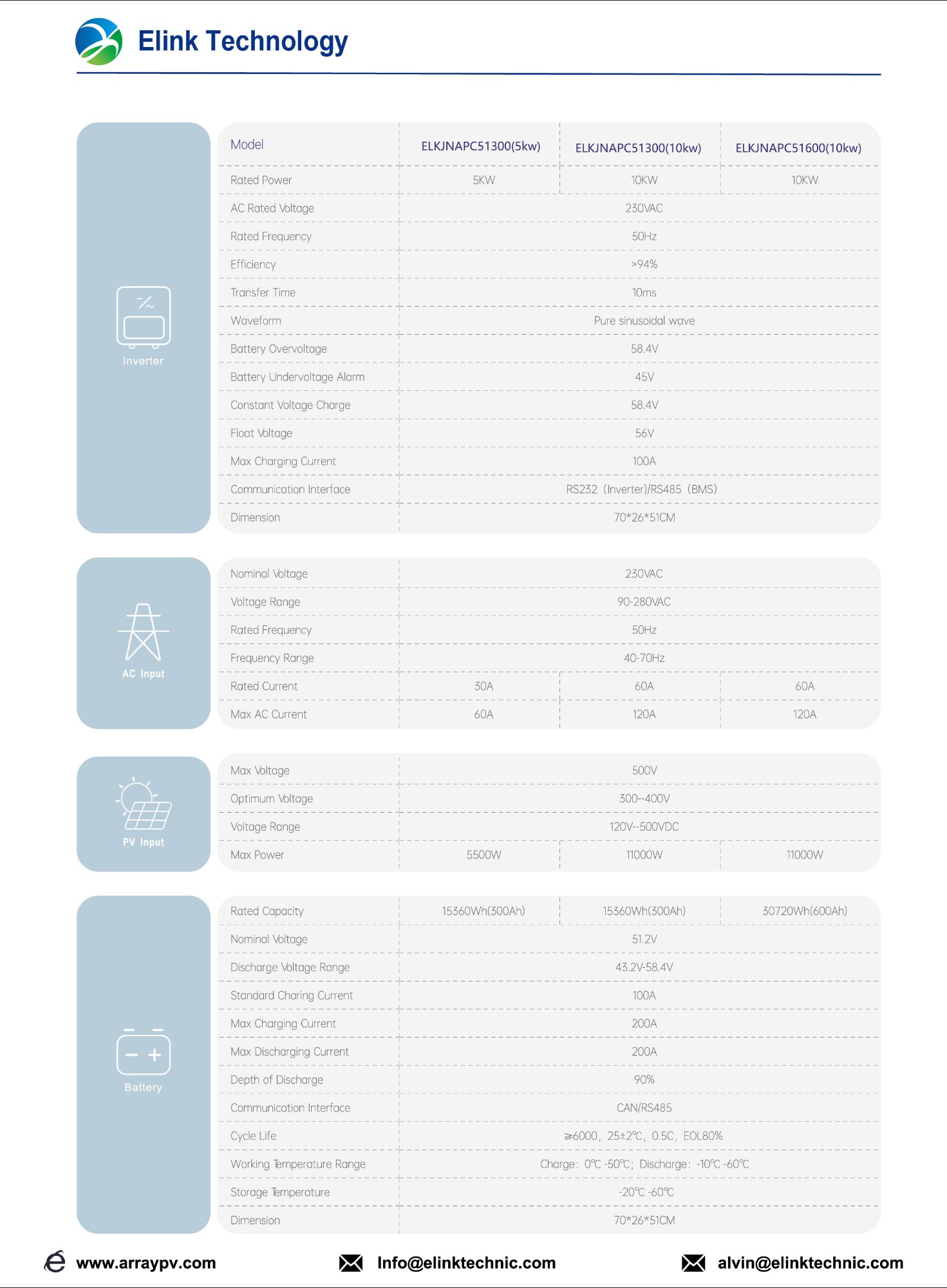

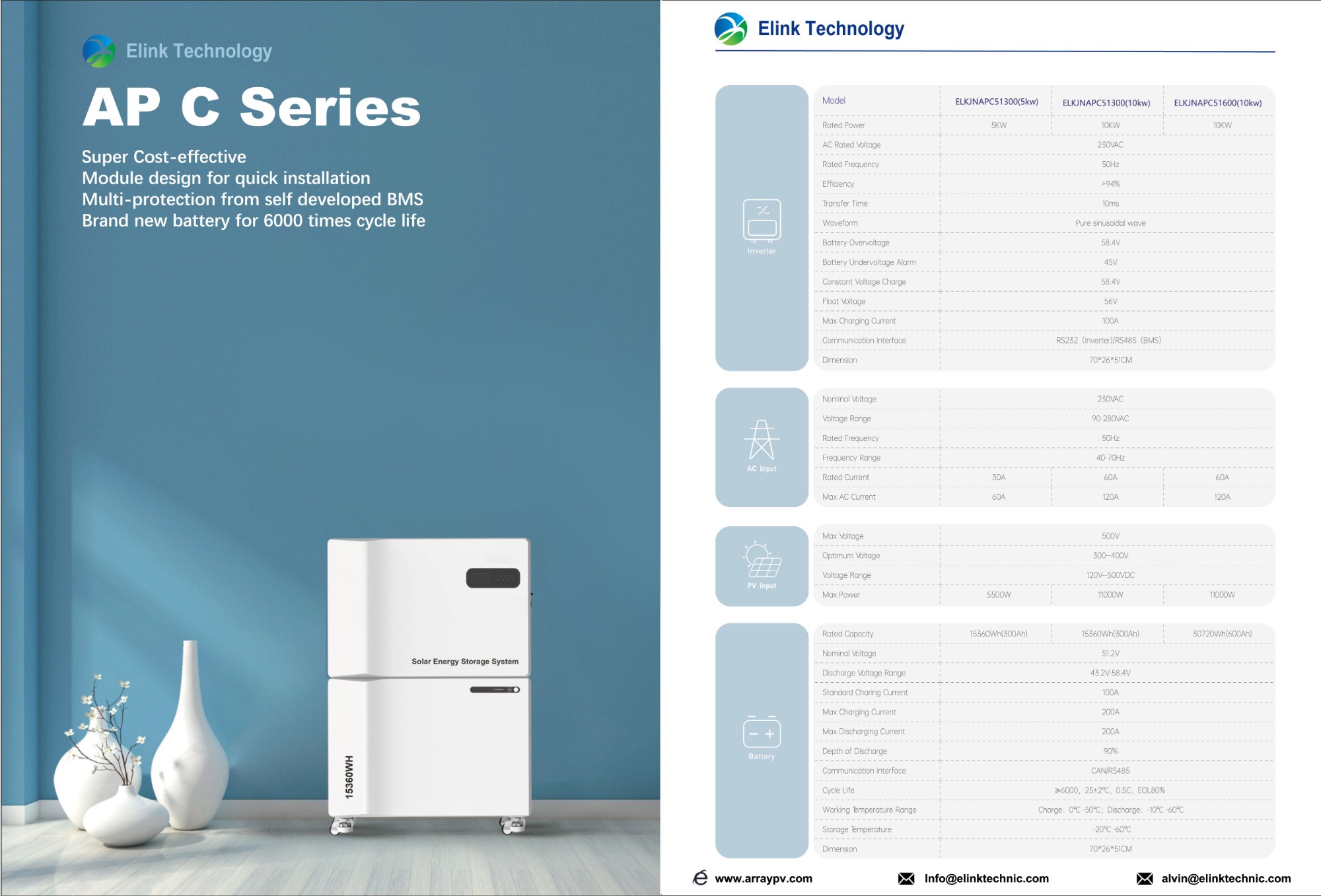

Inverter
|
Model
|
ELKJNSCAPC51300(5kw)
|
ELKJNSCAPB51300(10kw)
|
ELKJNSCAPB51600(10kw)
|
|
Rated power
|
5kw
|
10kw
|
10kw
|
|
AC Rated voltage
|
230VAC
|
|
Rated frequency
|
50Hz
|
|
Efficiency
|
＞94%
|
|
Transfer time
|
10ms
|
|
Wave form
|
Pure sine wave
|
|
Battery overvoltage
|
58.4V
|
|
Battery undervoltage alarm
|
45V
|
|
Costant voltage charge
|
58.4V
|
|
Float voltage
|
56V
|
|
Max charging current
|
100A
|
|
Communication interface
|
RS232(Inverter)/RS485(BMS)
|
|
Dimension
|
70×26×51cm
|
|
AC
Input
|
Nominal voltage
|
230VAC
|
|
Voltage range
|
90～280VAC
|
|
Rated frequency
|
50Hz
|
|
Frequency range
|
40～70Hz
|
|
Rated current
|
30A
|
60A
|
60A
|
|
Max AC current
|
60A
|
120A
|
120A
|
|
PV
Input
|
Max voltage
|
500V
|
|
Optimum voltage
|
300～400V
|
|
Voltage range
|
120～500VDC
|
|
Max power
|
5500w
|
11000w
|
11000w
|
|
Battery
|
Rated capacity
|
15360wh(300Ah)
|
15360wh(300Ah)
|
30720wh(600Ah)
|
|
Nominal voltage
|
51.2V
|
|
Discharge voltage range
|
43.2～58.4V
|
|
Standard charging current
|
100A
|
|
Max charging current
|
200A
|
|
Max Discharging current
|
200A
|
|
Depth of discharge
|
90%
|
|
Communication interface
|
CAN/RS485
|
|
Cycle life
|
≥6000,25±2℃，0.5C，EOL80%
|
|
Working temperature Range
|
Charge:0～50℃；Discharge:-10～60℃.
|
|
Storage temperature
|
-20～60℃.
|
|
Dimension
|
70×26×51cm
|
Jilin Elink Technology Co.,Ltd.
