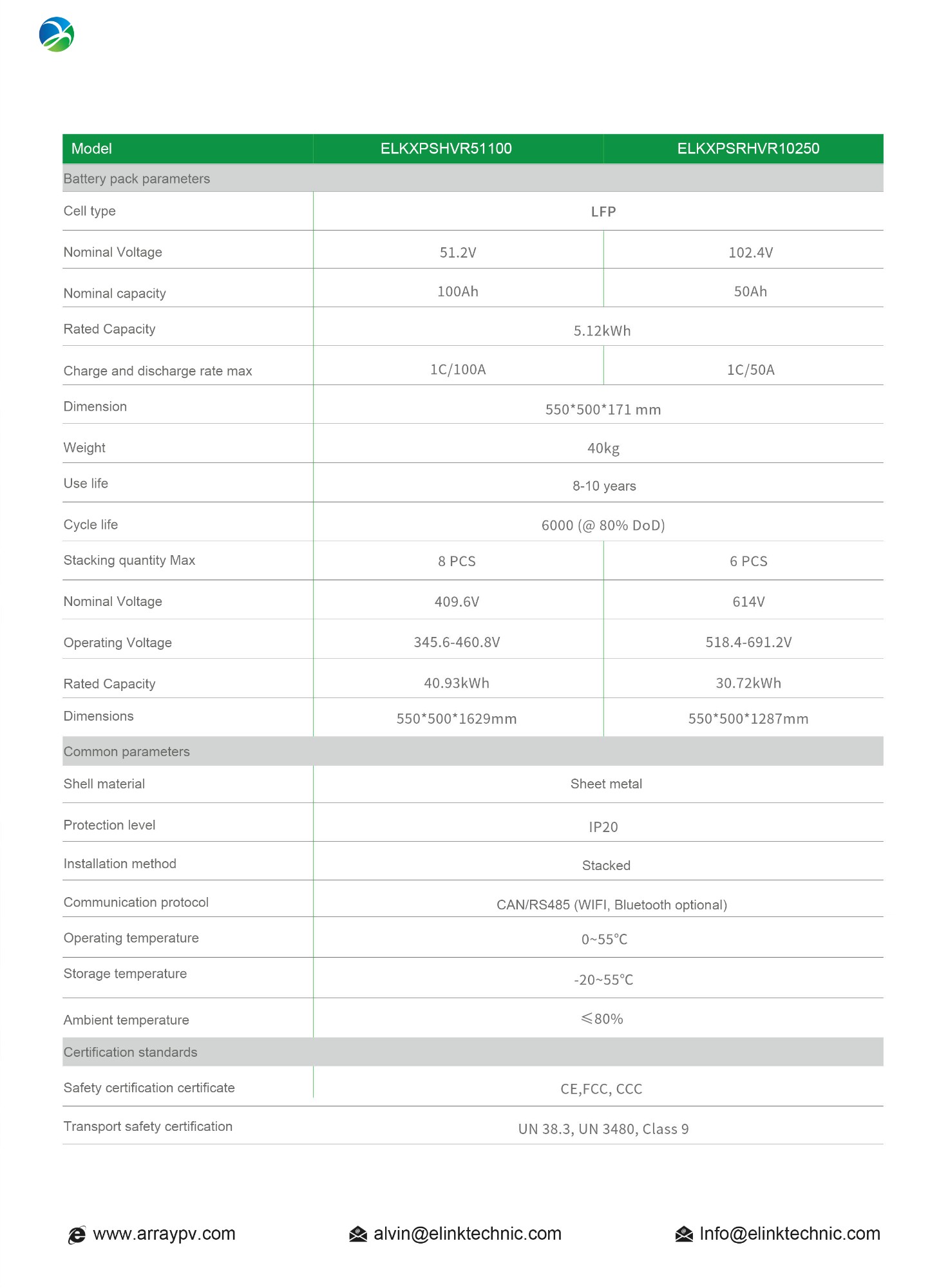

Model
|
ELKXPSHVR51100
|
ELKXPSRHVR10250
|
|
Battery pack parameters
|
|
Cell type
|
LFP
|
|
Nominal Voltage
|
51.2V
|
102.4V
|
|
Nominal capacity
|
100Ah
|
50Ah
|
|
Rated Capacity
|
5.12kwh
|
|
max Charge and discharge rate max
|
1C/100A
|
1C/50A
|
|
Dimension
|
550×500×171mm
|
|
Weight
|
40kg
|
|
Use life
|
8-10 years
|
|
Cycle life
|
6000( @80% DoD )
|
|
Stacking quantity Max
|
8PCS
|
6PCS
|
|
Nominal Voltage
|
409.6V
|
614.4V
|
|
Operating Voltage
|
345.6~460.8V
|
518.4~691.2V
|
|
Rated Capacity
|
40.96kwh
|
30.72kwh
|
|
Dimensions
|
550×500×1629mm
|
550×500×1287mm
|
|
Common parameters
|
|
Shell material
|
Sheet metal
|
|
Protection level
|
IP20
|
|
Installation method
|
Stacked
|
|
Communication protocol
|
CAN/RS485 (WIFI, Bluetooth optional)
|
|
Operating temperature
|
0~55℃
|
|
Storage temperature
|
-20~55℃
|
|
Ambient Humidity
|
≤80%
|
|
Certification standards
|
|
Safety certification certificate
|
CE, FCC, CCC
|
|
Transport safety certification
|
UN38.3, UN3480, Class 9
|
Jilin Elink Technology Co.,Ltd.
