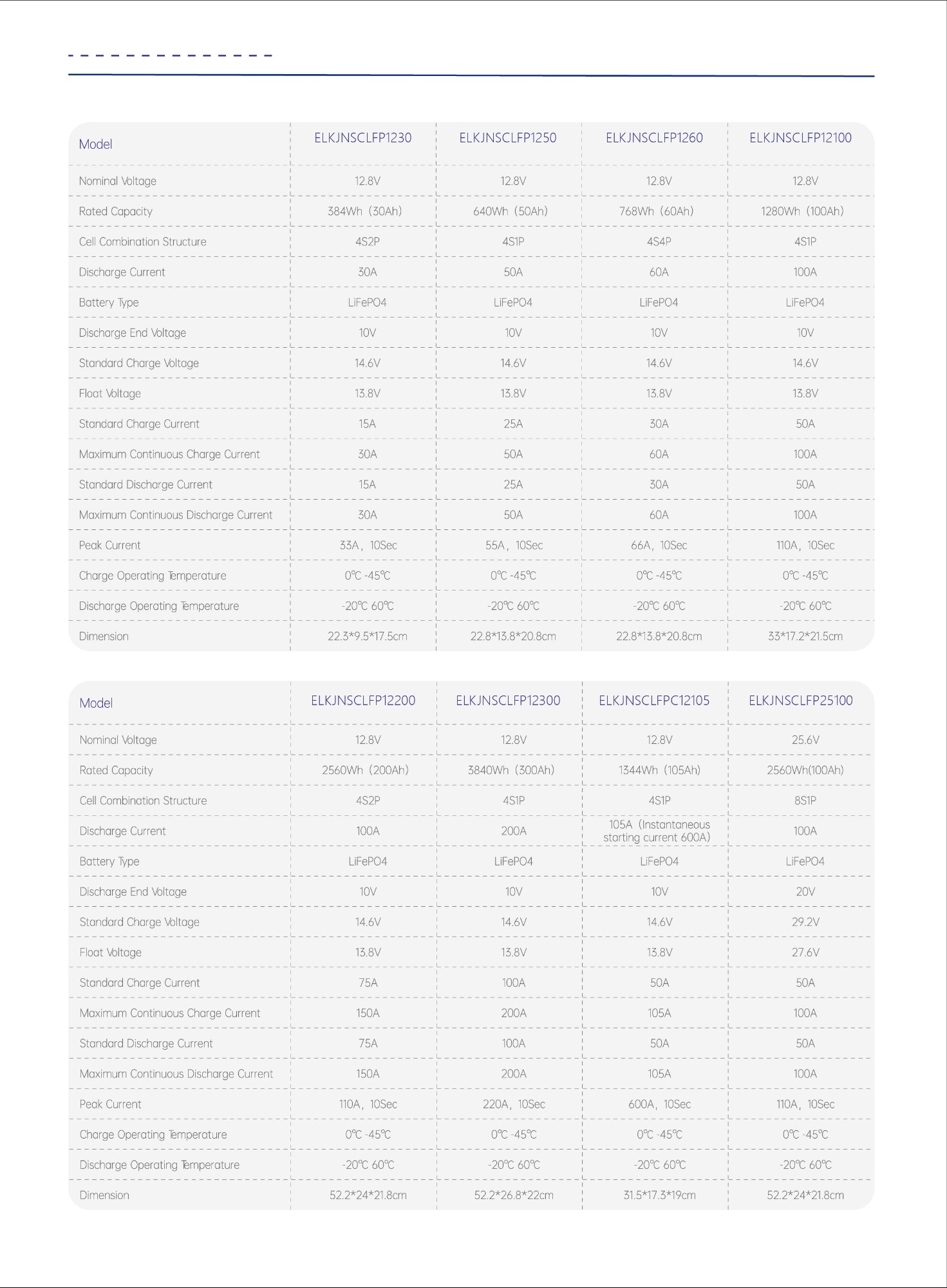

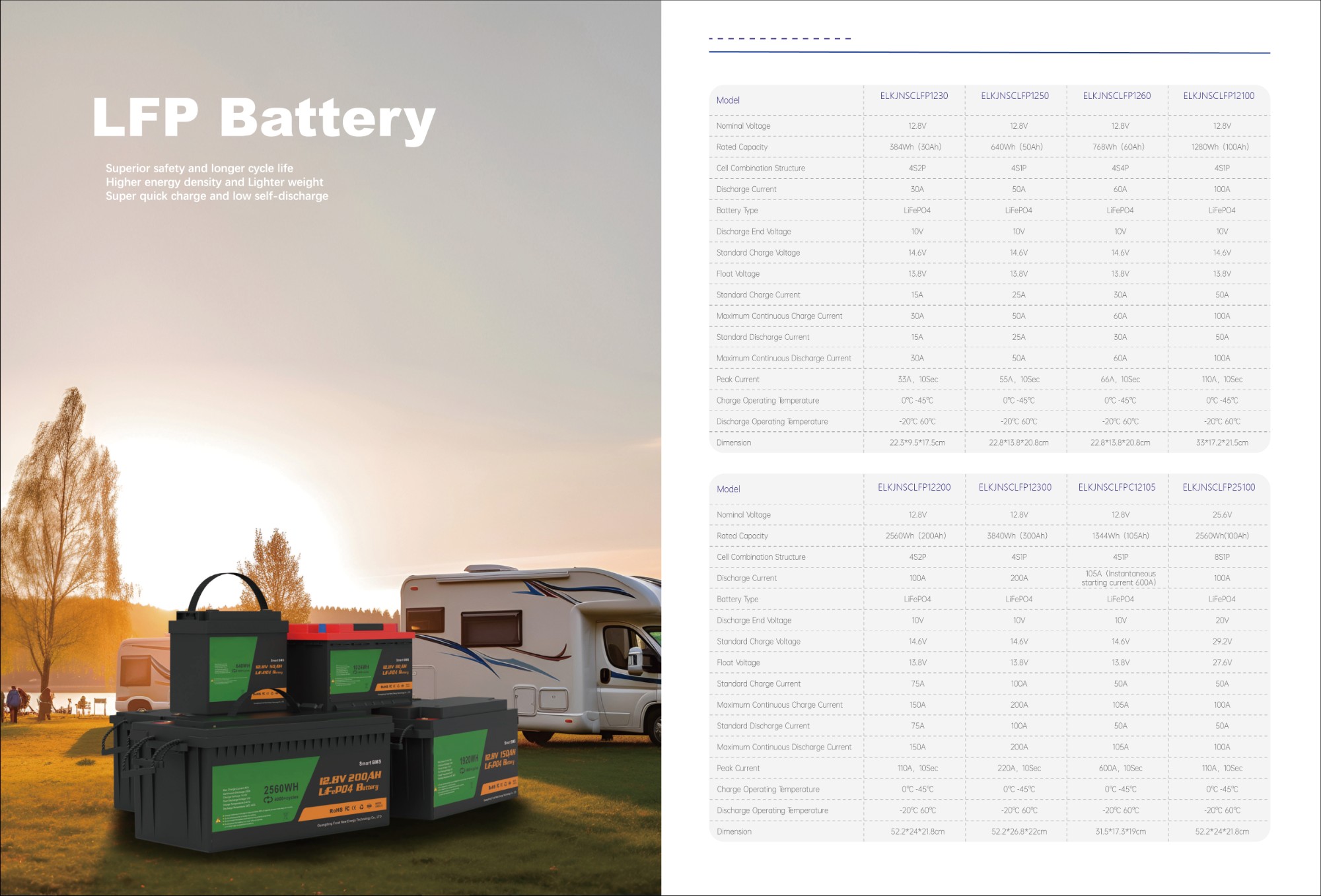

Model
|
ELKJNSCLFP1230
|
ELKJNSCLFP1250
|
ELKJNSCLFP1260
|
ELKJNSCLFP12100
|
|
Nominal
voltage
|
12.8V
|
|
Rated
capacity
|
384wh(30Ah)
|
640wh(50Ah)
|
768wh(60Ah)
|
1280wh(100Ah)
|
|
Cell
combinate structrue
|
4S2P
|
4S1P
|
4S4P
|
4S1P
|
|
Discharging
current
|
30A
|
50A
|
60A
|
100A
|
|
Battery type
|
LFP4
|
|
Discharge end
voltage
|
10V
|
|
Standard
charging voltage
|
14.6V
|
|
Float voltage
|
13.8V
|
|
Standard
charging current
|
15A
|
25A
|
30A
|
50A
|
|
Maximum
continuous charge current
|
30A
|
50A
|
60A
|
100A
|
|
Standard
discharging current
|
15A
|
25A
|
30A
|
50A
|
|
Maximum
continuous discharge current
|
30A
|
50A
|
60A
|
100A
|
|
Peak current
|
33A,10Sec
|
55A,10Sec
|
66A,10Sec
|
100A,10Sec
|
|
Charge
operating temperature
|
0～45℃
|
|
Discharge
operating temperature
|
-20～60℃
|
|
Dimension
|
22.3×9.5×17.5cm
|
22.8×13.8×20.8cm
|
22.8×13.8×20.8cm
|
33×17.2×21.5cm
|
