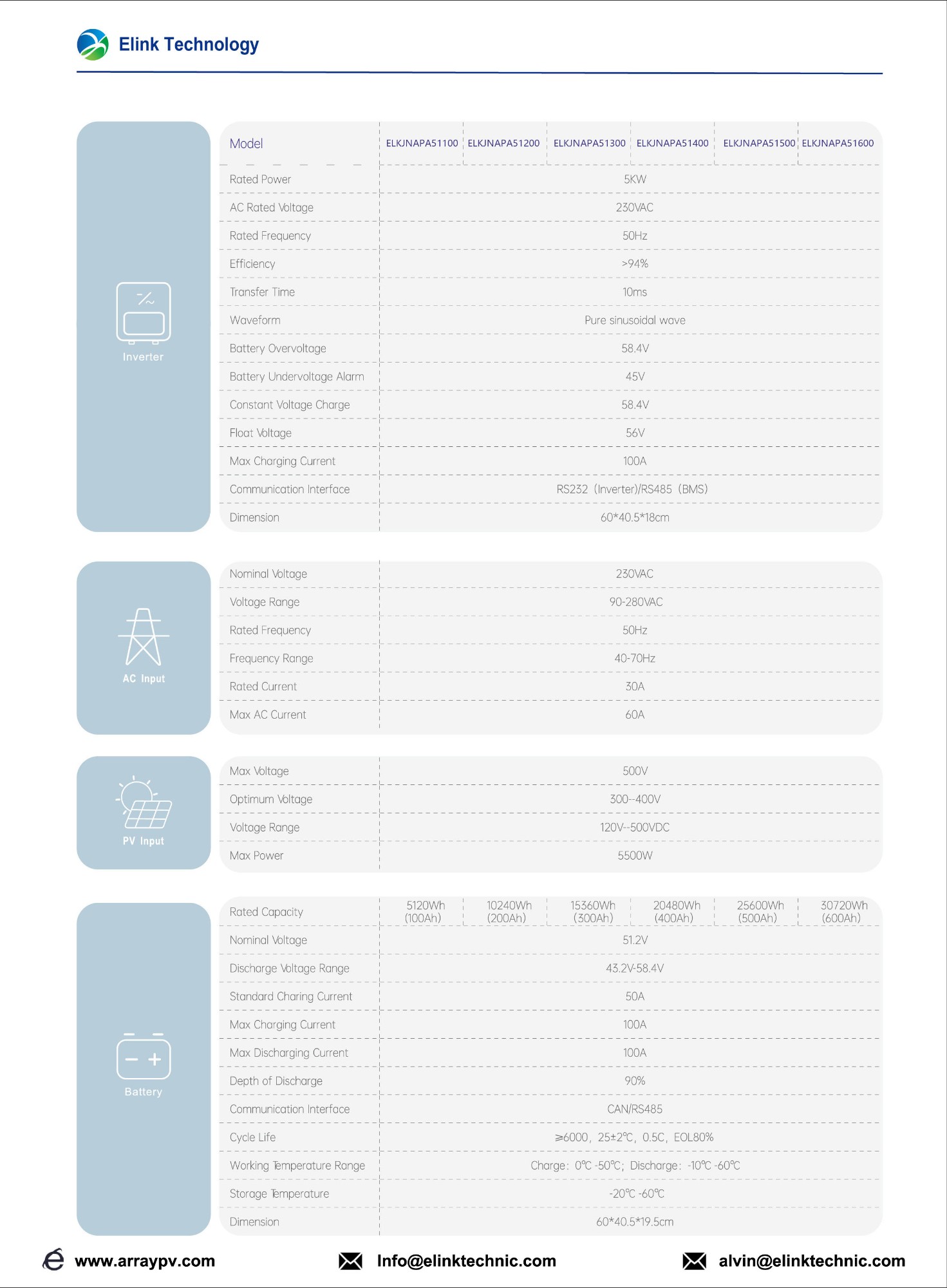

| Inverter | Model | ELKJNSCAPA51100 | ELKJNSCAPA51200 | ELKJNSCAPA51300 | ELKJNSCAPA51400 | ELKJNSCAPA51500 | ELKJNSCAPA51600 |
| Rated power | 5kw | ||||||
| AC Rated voltage | 230VAC | ||||||
| Rated frequency | 50Hz | ||||||
| Efficiency | ＞94% | ||||||
| Transfer time | 10ms | ||||||
| Wave form | Pure sine wave | ||||||
| Battery overvoltage | 58.4V | ||||||
| Battery undervoltage alarm | 45V | ||||||
| Costant voltage charge | 58.4V | ||||||
| Float voltage | 56V | ||||||
| Max charging current | 100A | ||||||
| Communication interface | RS232(Inverter)/RS485(BMS) | ||||||
| Dimension | 60×40.5×18cm | ||||||
| AC Input | Nominal voltage | 230VAC | |||||
| Voltage range | 90～280VAC | ||||||
| Rated frequency | 50Hz | ||||||
| Frequency range | 40～70Hz | ||||||
| Rated current | 30A | ||||||
| Max AC current | 60A | ||||||
| PV Input | Max voltage | 500V | |||||
| Optimum voltage | 300～400V | ||||||
| Voltage range | 120～500VDC | ||||||
| Max power | 5500w | ||||||
| Battery | Rated capacity | 5120wh(100Ah) | 10240wh(200Ah) | 15360wh(300Ah) | 20480wh(400Ah) | 25600wh(500Ah) | 30720wh(600Ah) |
| Nominal voltage | 51.2V | ||||||
| Discharge voltage range | 43.2～58.4V | ||||||
| Standard charging current | 50A | ||||||
| Max charging current | 100A | ||||||
| Max Discharging current | 100A | ||||||
| Depth of discharge | 90% | ||||||
| Communication interface | CAN/RS485 | ||||||
| Cycle life | ≥6000,25±2℃，0.5C，EOL80% | ||||||
| Working temperature Range | Charge:0～50℃；Discharge:-10～60℃. | ||||||
| Storage temperature | -20～60℃. | ||||||
| Dimension | 60×40.5×19.5cm | ||||||

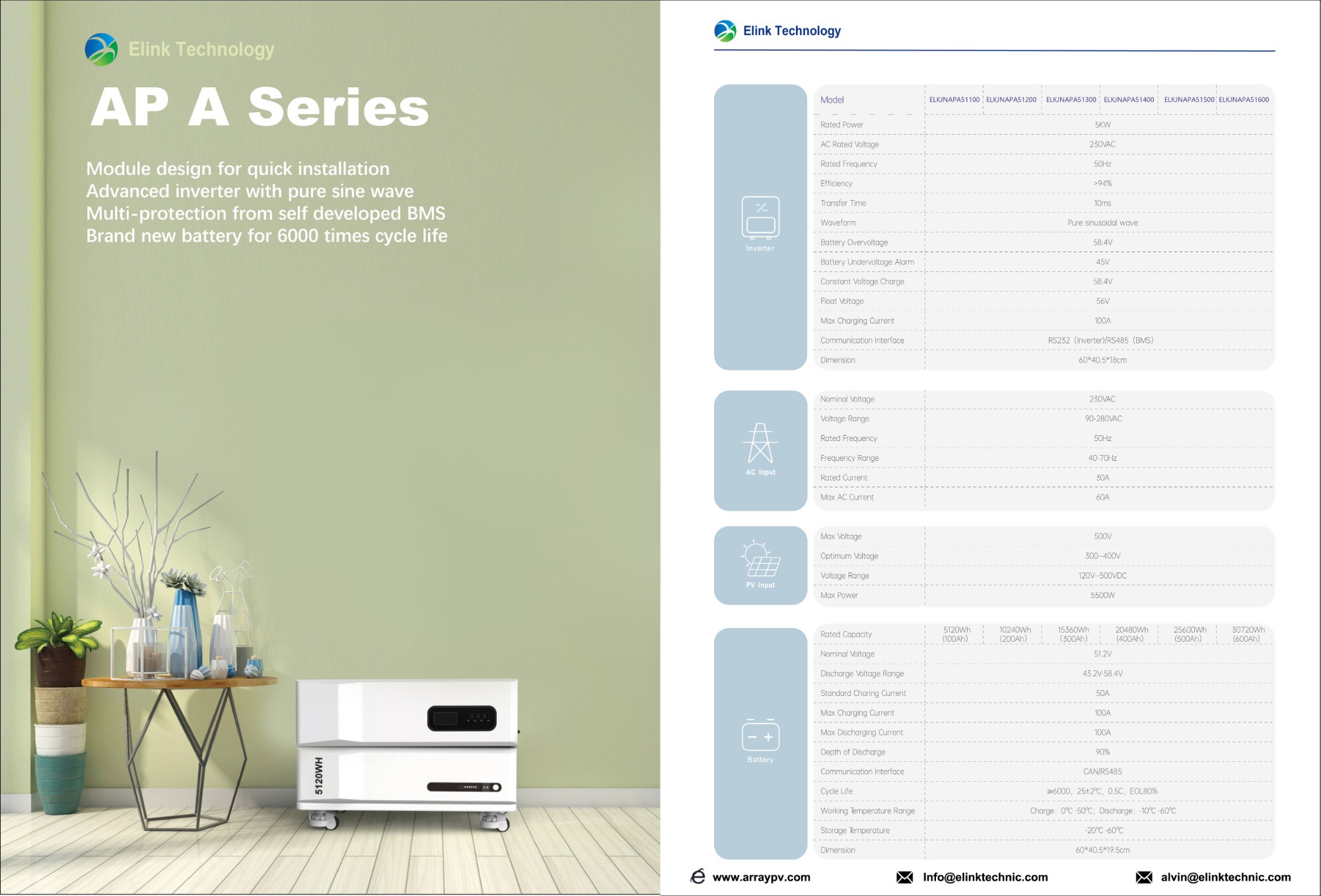

APA5.12kwh 51.2V 100Ah Stacked Energy Storage
