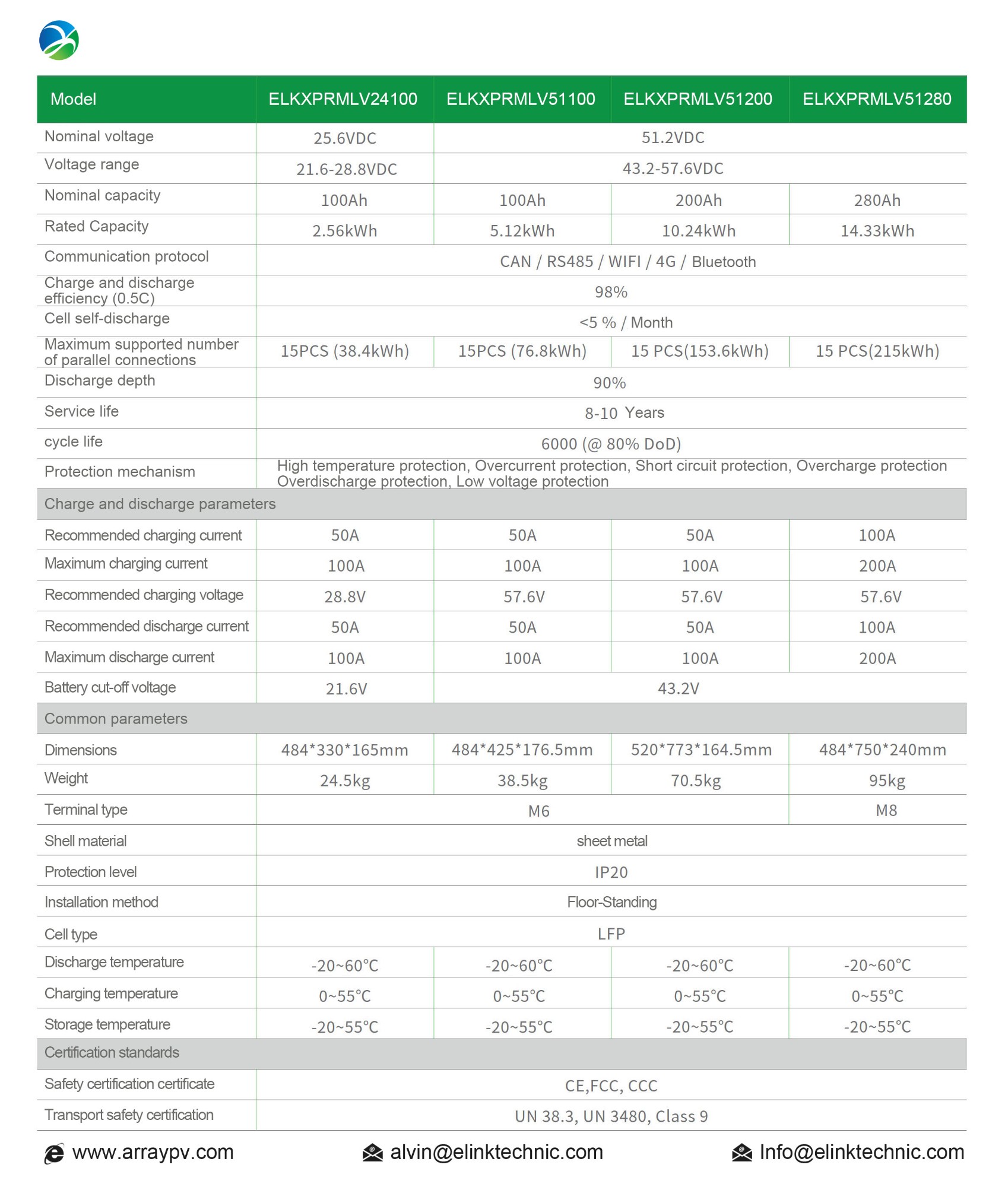

Model
|
ELKXPRMLV24100
|
ELKXPRMLV51100
|
ELKXPRMLV51200
|
ELKXPRMLV51280
|
|
Nominal voltage
|
25.6VDC
|
51.2VDC
|
|
Voltage range
|
21.6~28.8VDC
|
43.2~57.6VDC
|
|
Nominal capacity
|
100Ah
|
100Ah
|
200Ah
|
280Ah
|
|
Rated Capacity
|
2.56kwh
|
5.12kwh
|
10.24kwh
|
14.33kwh
|
|
Communication protocol
|
CAN/RS485/WIFI/4G/Bluetooth
|
|
Charge and discharge efficiency (0.5C)
|
98%
|
|
Cell self-discharge
|
＜5%/Month
|
|
Maximum supported number of parallel connections
|
15PCS(38.4kwh)
|
15PCS(76.8kwh)
|
15PCS(153.6kwh)
|
15PCS(215kwh)
|
|
Discharge of depth
|
90%
|
|
Service life
|
8~10Years
|
|
cycle life
|
6000( @80% DoD )
|
|
Protection mechanism
|
High temperature protection, Overcurrent protection, Short circuit protection, Overcharge protection, Overdischarge protection, Low voltage protection
|
|
Charge and discharge parameters
|
|
Recommended charging current
|
50A
|
50A
|
50A
|
100A
|
|
Maximum charging current
|
100A
|
100A
|
100A
|
200A
|
|
Recommended charging voltage
|
28.8V
|
57.6V
|
57.6V
|
57.6V
|
|
Recommended discharge current
|
50A
|
50A
|
50A
|
100A
|
|
Maximum discharge current
|
100A
|
100A
|
100A
|
200A
|
|
Battery cut-off voltage
|
21.6V
|
43.2V
|
|
Common parameters
|
|
Dimensions
|
484×330×165mm
|
484×425×176.5mm
|
520×773×164.5mm
|
484×750×240mm
|
|
Weight
|
24.5kg
|
38.5kg
|
70.5kg
|
95kg
|
|
Terminal type
|
M6
|
M8
|
|
Shell material
|
Sheet metal
|
|
Protection level
|
IP20
|
|

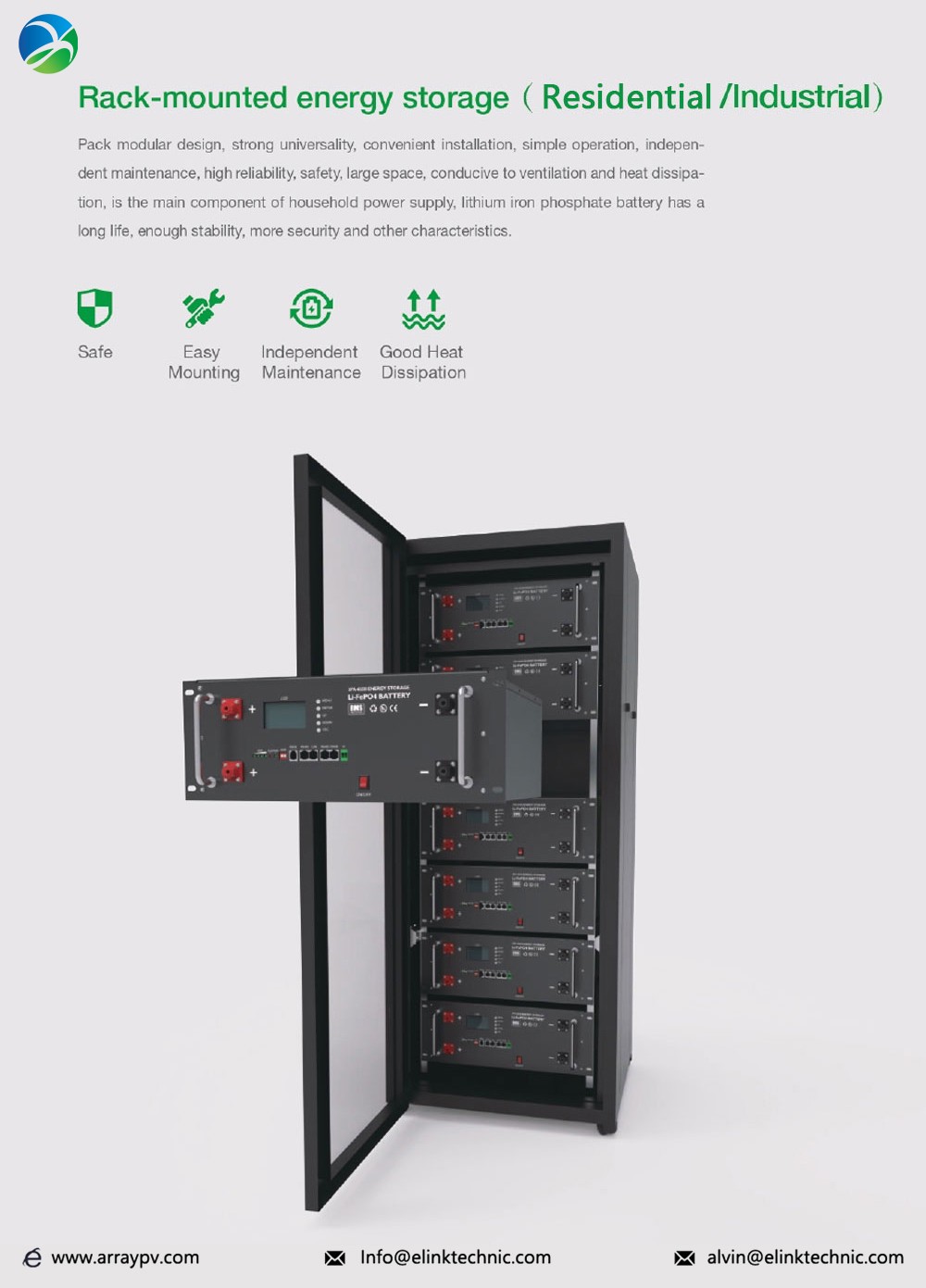

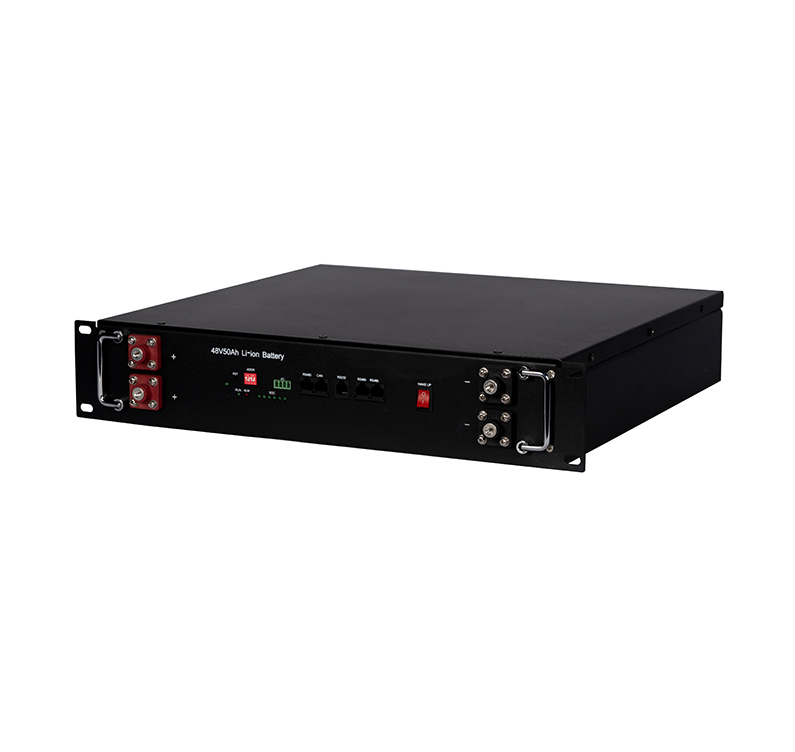

Installation method
|
Rack-mounted
|
|
Cell type
|
LFP
|
|
Discharge temperature
|
-20~60℃
|
|
Charging temperature
|
0~55℃
|
|
Storage temperature
|
-20~55℃
|
|
Certification standards
|
|
Safety certification certificate
|
CE, FCC, CCC
|
|
Transport safety certification
|
UN38.3, UN3480, Class 9
|
