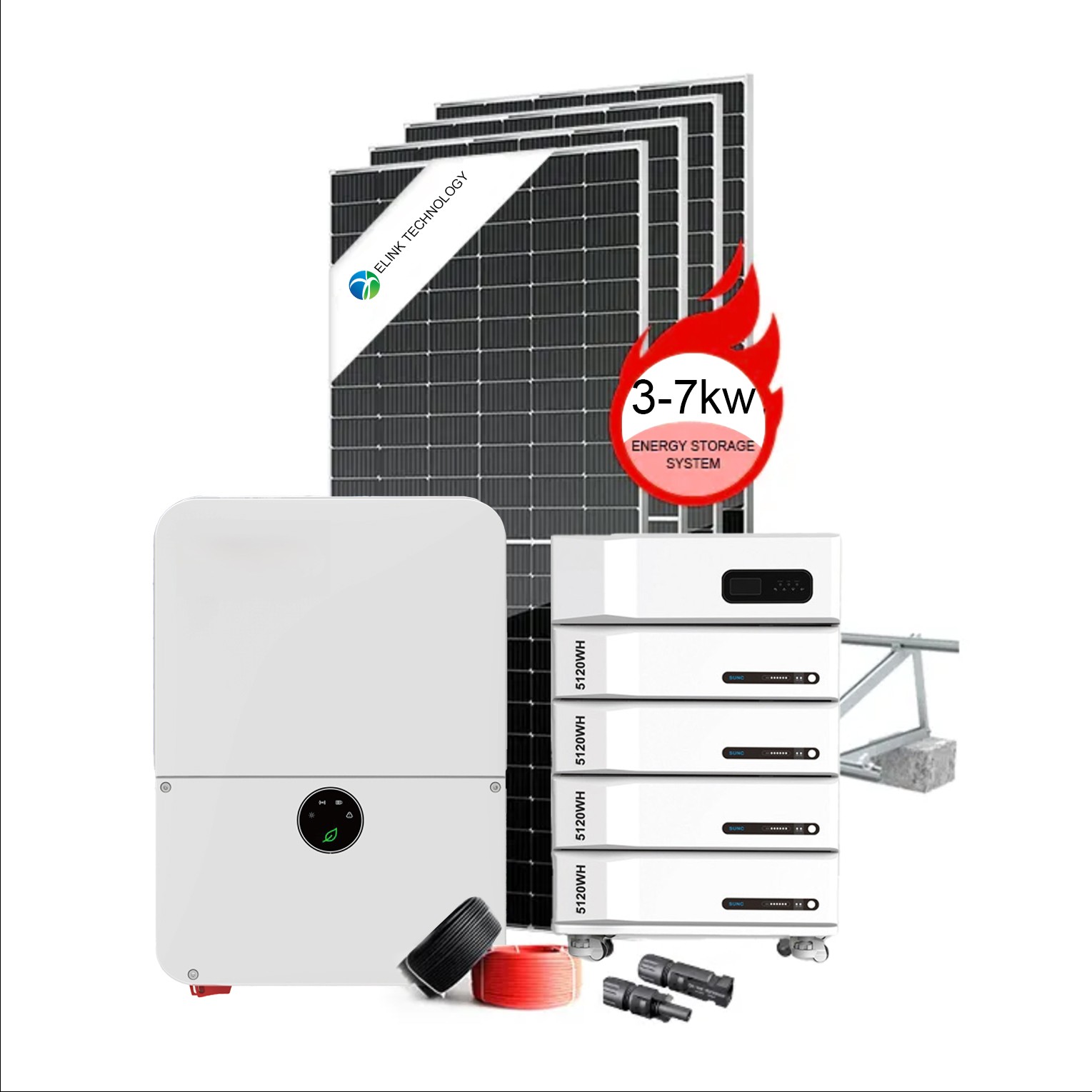

3~7kW Hybrid System with Brand Inverter for Residential
The 3~7kW hybrid solar system is an ideal solution for small to medium-sized residential properties. With a premium brand inverter, this system provides efficient solar energy generation, reliable battery storage, and seamless integration with grid power. Designed for compact energy needs, it is perfect for homeowners seeking sustainable and cost-effective energy independence.
| Electrical characteristics | ||||||
| Module type | ELKSKT590M10 | ELKSKT595M10 | ELKSKT600M10 | |||
| STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum power-Pmax(w) | 590 | 439 | 595 | 443 | 600 | 447 |
| Open circuit voltage-Voc(V) | 53.76 | 50.75 | 53.87 | 50.86 | 53.98 | 50.97 |
| Short circuit current-Isc(A) | 13.97 | 11.27 | 14.05 | 11.35 | 14.13 | 11.43 |
| Voltage at Pmax-Vmp(V) | 44.49 | 41.46 | 44.57 | 41.67 | 44.65 | 41.88 |
| Current at Pmax-Imp(A) | 13.27 | 10.59 | 13.36 | 10.63 | 13.45 | 10.67 |
| Module Efficiency-ηm(%) | 21.12 | / | 21.29 | / | 21.47 | / |
| Power Tolerance (w) | (0,+4.99W) | |||||
| Maximum System Voltage(V) | 1500VDC(IEC,UL) | |||||
| Maximum Series Fuse Rating(A) | 25A | |||||
| Mechanical Specifications | ||||||
| External Dimensions | 2464x1134x35mm | |||||
| Weight | 32kg | |||||
| Solar Cells | Mono crystalline 182mm (2x78pcs) | |||||
| Front Glass | AR Coated 3.2 mm tempered glass | |||||
| Frame | Anodized aluminum alloy | |||||
| Junction Box | IP68 | |||||
| Output Cables | 4.0mm², 50cm (+), 50cm (-), length can be customized | |||||
| Connector | MC4 EVO2 | |||||
| Mechanical Load | Front Side Max. 5400Pa, Rear Side Max. 2400Pa | |||||

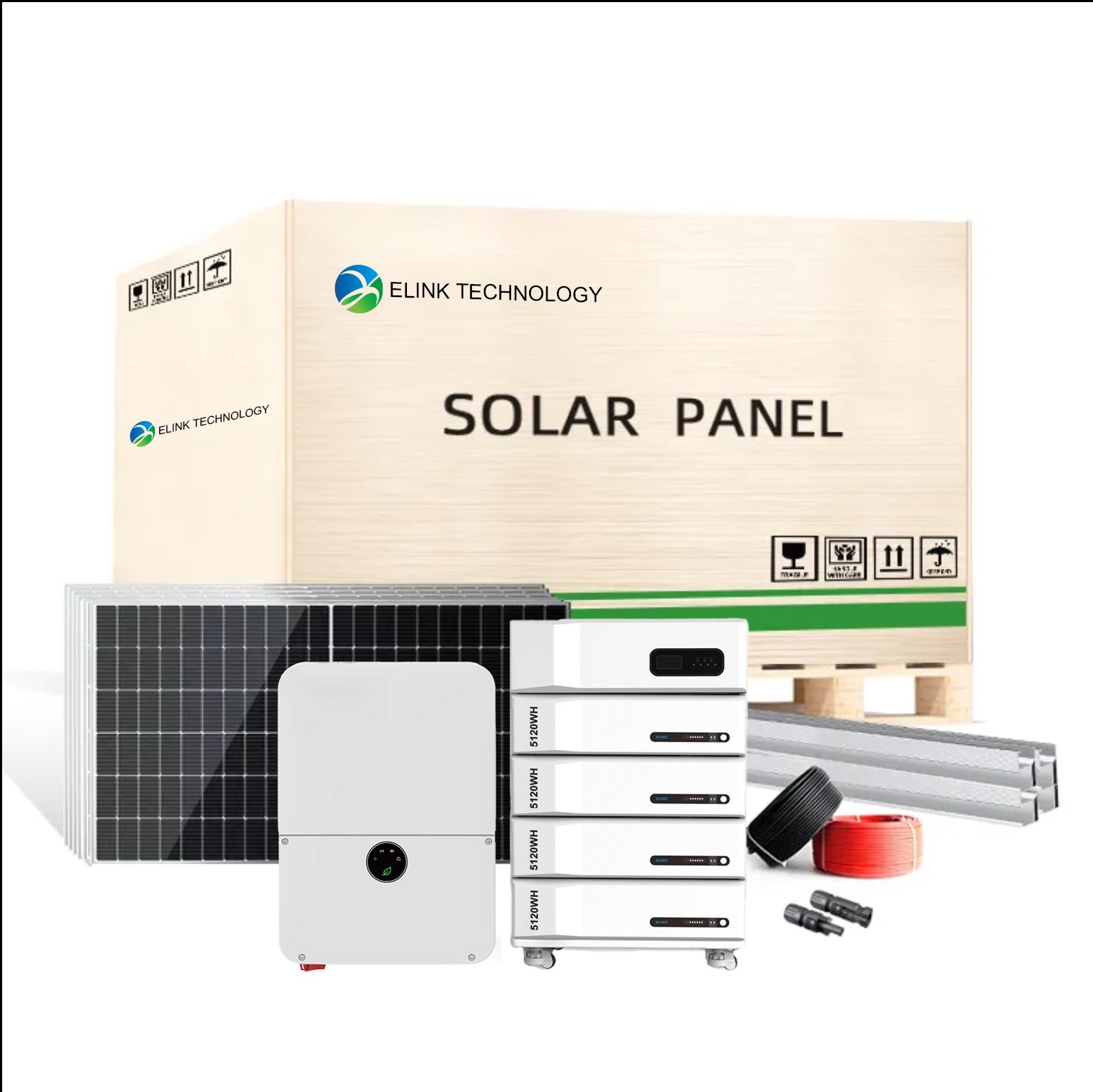

| Packing Configuration | ||
| Dimensions | 2464x1134x35mm | |
| Container | 20’GP | 40’HQ |
| Pieces per Pallet | 31 | 31 |
| Pallets per Container | 4 | 16 |
| Pieces per Container | 124 | 496 |
| Model | ELKTCFUD6348MB | ELKTCFUD12548MB |
| AC Input Voltage | 220VAC (standard) | |
| Input voltage range | (90~275)VAC±3V (Normal mode) (170~275)VAC±3\/ (UPS mode) | |
| Input Frequency | (50 / 60)Hz ±5% | |
| Output Power | 5kw | 10kw |
| AC model output Voltage | The output voltage of mains is the same as the input voltage. | |
| AC model outout frequency | The output frequency of the mains is the same as the input frequency. | |
| Battery model output voltage | 220 VAC±10% | |
| Battery model output frequency | (50 / 60)Hz ±1% | |
| Battery model output wave | Pure sine wave | |
| Battery type | External lead -acid battery, Gel battery or Lithium battery. | |
| Battery voltage | 48VDC | |
| Battery charging voltage | 56.4VDC( 48V-61V ) | |
| Maximum PV array power | 3200W | 6400W |
| Solar input voltage range | 48V: MPPT 60v~150VDC (200VDC) | |
| Maximum PV Display Open Circuit Voltage | 48V: MPPT 150VDC(200VDC) | |
| Maximum solar charging current | 60A | 120A |
| Maximum AC Charge Current | 30A | 60A |
| Transfer Time | 10ms for UPS, 20ms for INV | |
| Load peak ratio | MAX 3 :1 | |
| Protective function |
Mains :
input overcurrent fuse. Inverter: overload protection.short circuit protection, low voltage protection. (with battery anti-reverse connection, board). |
|
| Status Display | You can view parameters such as AC voltage, Ac frequency. PVvoltage, PV current. output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys. | |
| Voice prompt |
Low battery
protection buzzer long
beep
Low bottery buzzer beeps every second
Machine fault buzzer
beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second, and the output will be turned off after 30s. When the overload is greater than l50%, the output wlll be turned off after 300ms. |
|
| Operating temperature | -10°C~50°C | |
| Storage temperature | -15°C~45°C | |
| Relative temperature | 20%~95% no condensation | |
| Noise | ≤45db | |
| Dimension L×W×H(mm) | 527×330×149 | 545×400×200 |
Key Features:
- Capacity: 3~7kW output, suitable for small to medium residential properties.
- Hybrid Functionality: Combines solar, battery storage, and grid power for reliable energy supply.
- Inverter: High-quality brand inverter ensures maximum efficiency and durability.
- Battery Storage: Advanced energy storage provides uninterrupted power during outages or peak demand.
- Solar Panels: High-efficiency solar panels optimize energy generation.
- Customizable: Flexible configurations tailored to specific energy needs and property layouts.
Applications:
- Small to Medium Residential Homes
- Properties in Areas with Unstable Power Supply
- Homes with Light to Moderate Energy Demands
- Eco-Friendly Residential Solutions
- Cost-Effective Energy Independence for Homes
Why Choose This Hybrid System?
- Efficiency: Designed for optimized energy output and smart energy management.
- Reliability: Brand inverter and battery storage ensure consistent power supply.
- Sustainability: Reduces reliance on grid electricity and minimizes carbon footprint.
- Flexibility: Integrates solar, battery, and grid power seamlessly for reliable operation.
Customization Options:
We provide tailored options, including battery capacities, solar panel types, and preferred inverter brands, to meet your specific energy requirements.
Contact Us:
For detailed specifications, pricing, and customized solutions, contact our sales team. We are committed to delivering high-quality hybrid solar systems for residential properties.
