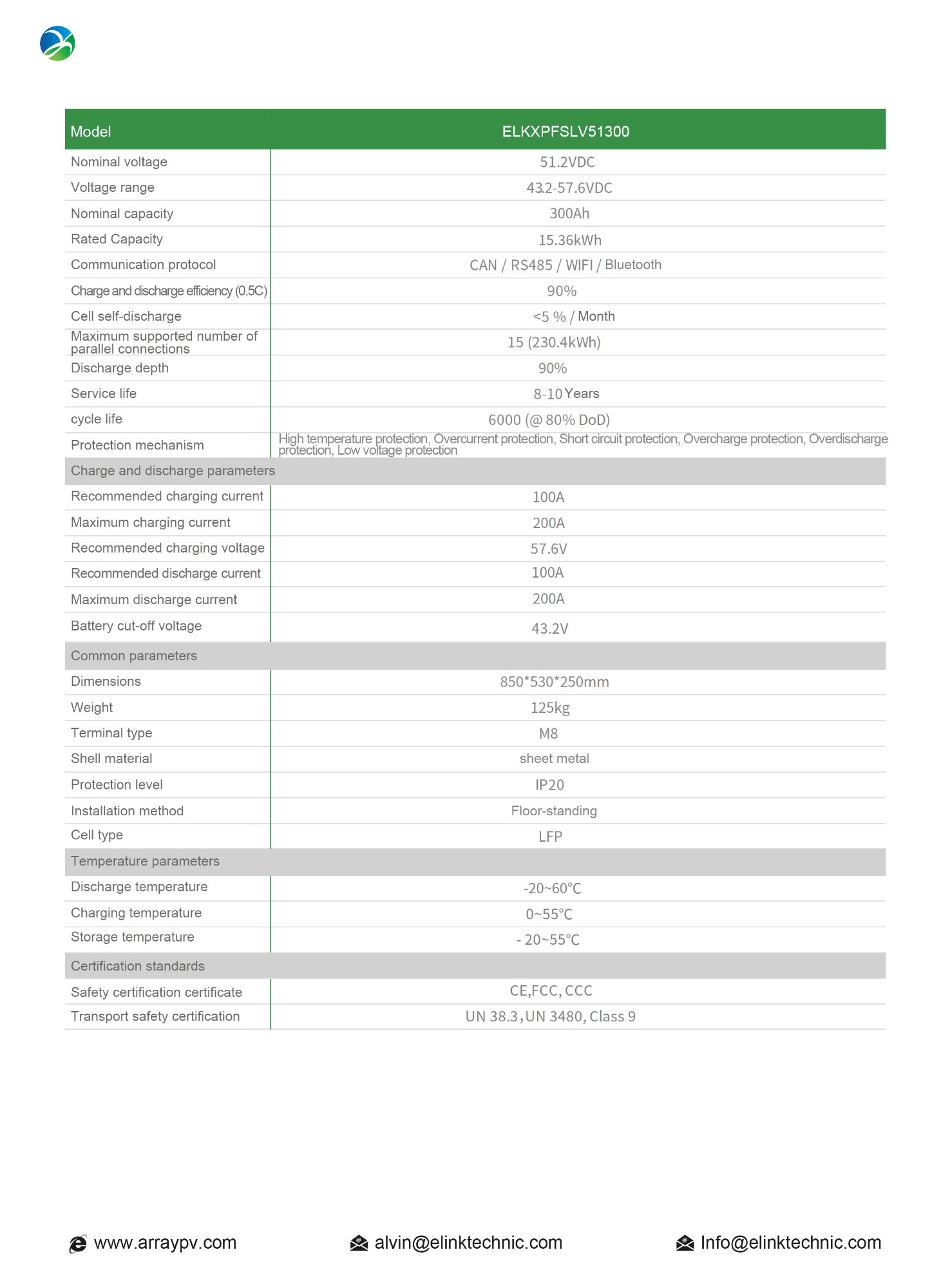

Model
|
ELKXPFSLV51300
|
|
Nominal voltage
|
51.2VDC
|
|
Voltage range
|
43.2-57.6VDC
|
|
Nominal capacity
|
300Ah
|
|
Rated Capacity
|
15.36kwh
|
|
Communication protocol
|
CAN/RS485/WIFI/Bluetooth
|
|
Charge and discharge efficiency (0.5C)
|
0.9
|
|
Cell self-discharge
|
＜5%Month
|
|
Maximum supported number of parallel connections
|
15｛230.4kwh｝
|
|
Discharge depth
|
0.9
|
|
Service life
|
8-10Years
|
|
Cycle life
|
6000{@80%DOD}
|
|
Protection mechanism
|
High temperature protection, Overcurrent protection, Short circuit protection, Overcharge protection, Overdischarge protection, Low voltage protection
|
|
Charge and discharge parameters
|
|
Recommended charging current
|
100A
|
|
Maximum charging current
|
200A
|
|
Recommended charging voltage
|
57.6V
|
|
Recommended discharge current
|
100A
|
|
Maximum discharge current
|
200A
|
|
Battery cut-off voltage
|
43.2V
|
|
Common parameters
|
|
|
Dimensions
|
850×530×250mm
|
|
Weight
|
125kg
|
|
Terminal type
|
M8
|
|
Shell material
|
Sheet metal
|
|
Protection level
|
IP20
|
|
Installation method
|

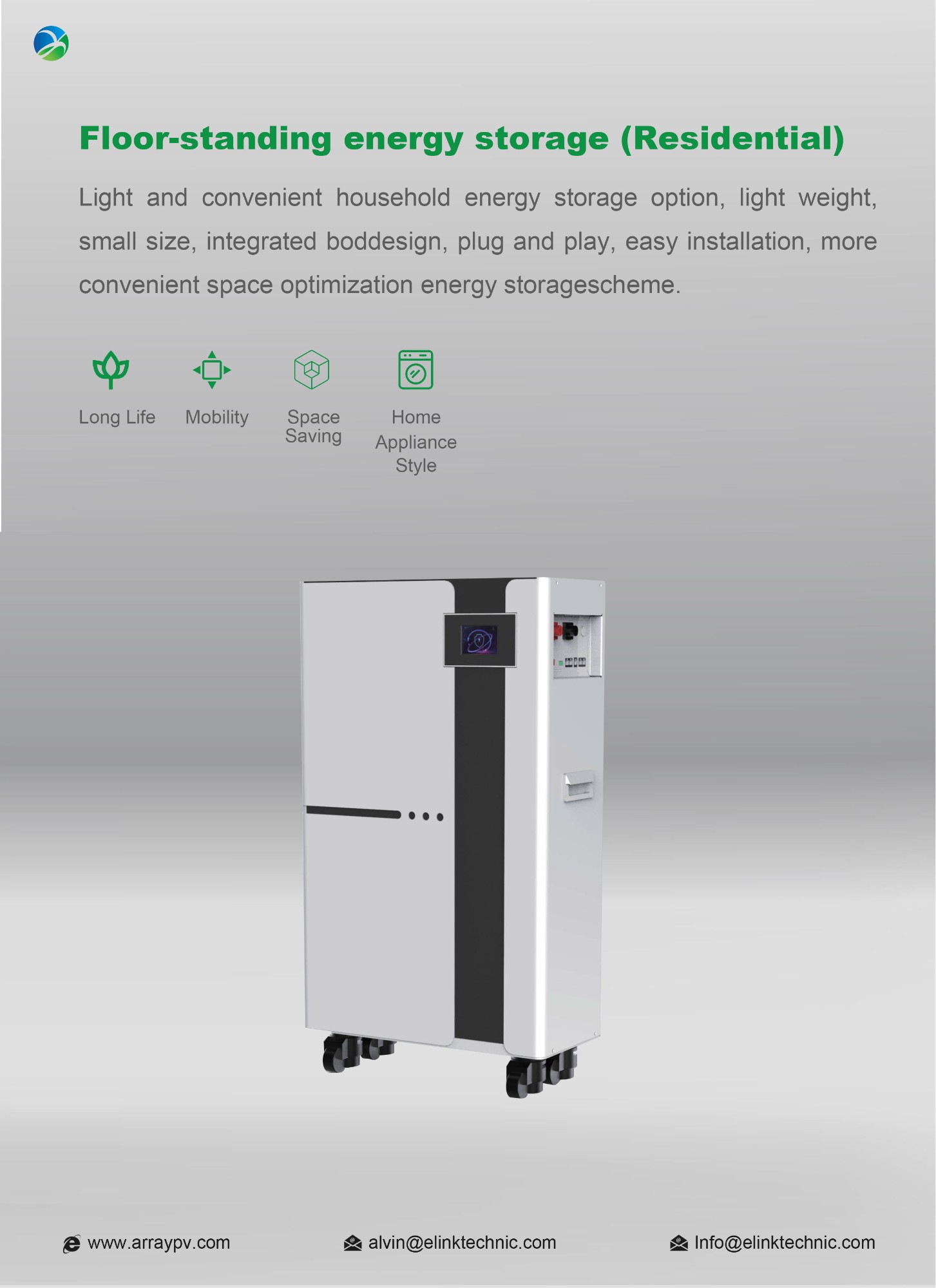

Floor-standing
|
|
Cell type
|
LFP
|
|
Temperature parameters
|
|
Discharge temperature
|
-20~60℃
|
|
Charging temperature
|
0~55℃
|
|
Storage temperature
|
-20~55℃
|
|
Certification standards
|
|
Safety certification certificate
|
CE, FCC, CCC
|
|
Transport safety certification
|
UN38.4, UN3480, Class 9
|
