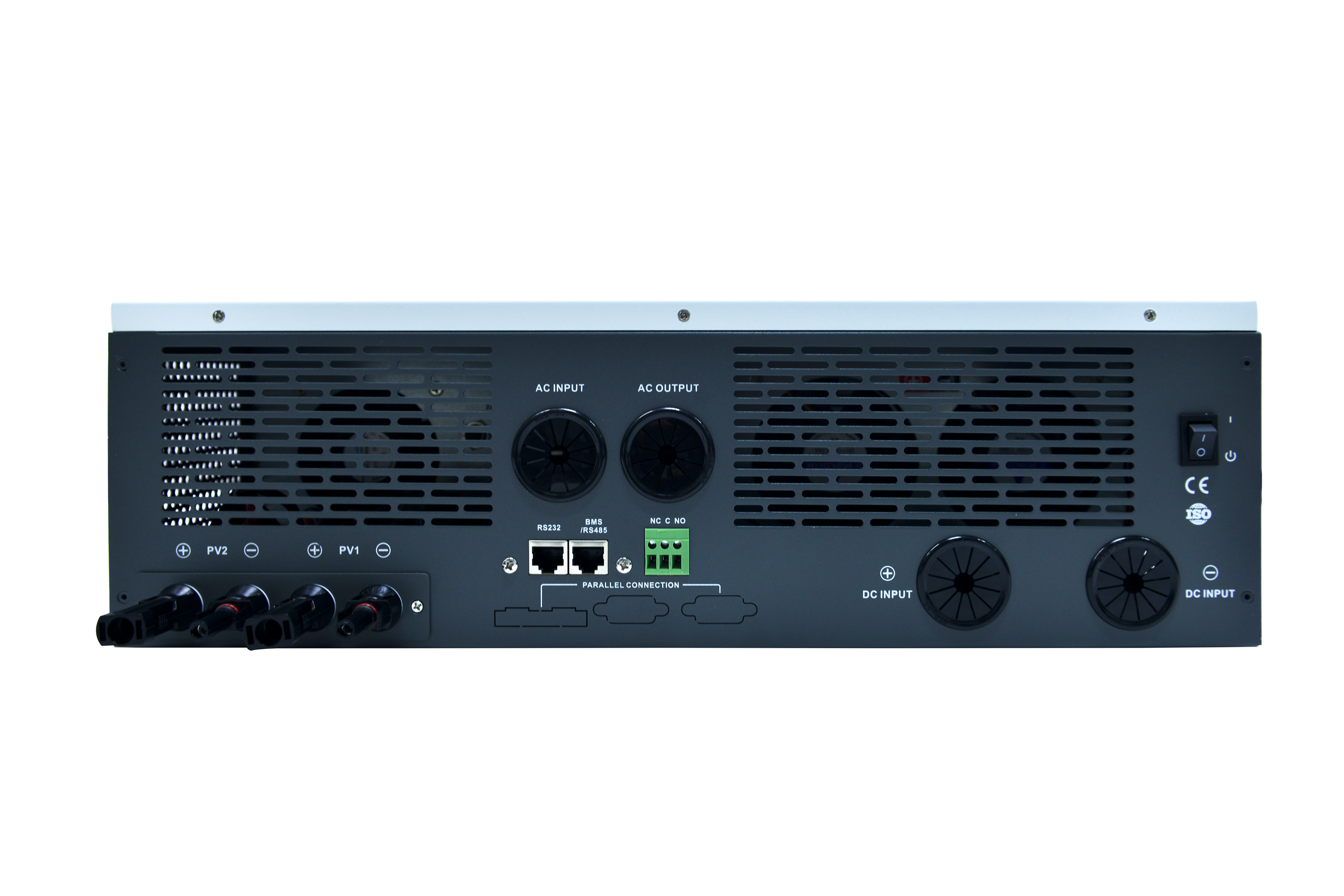

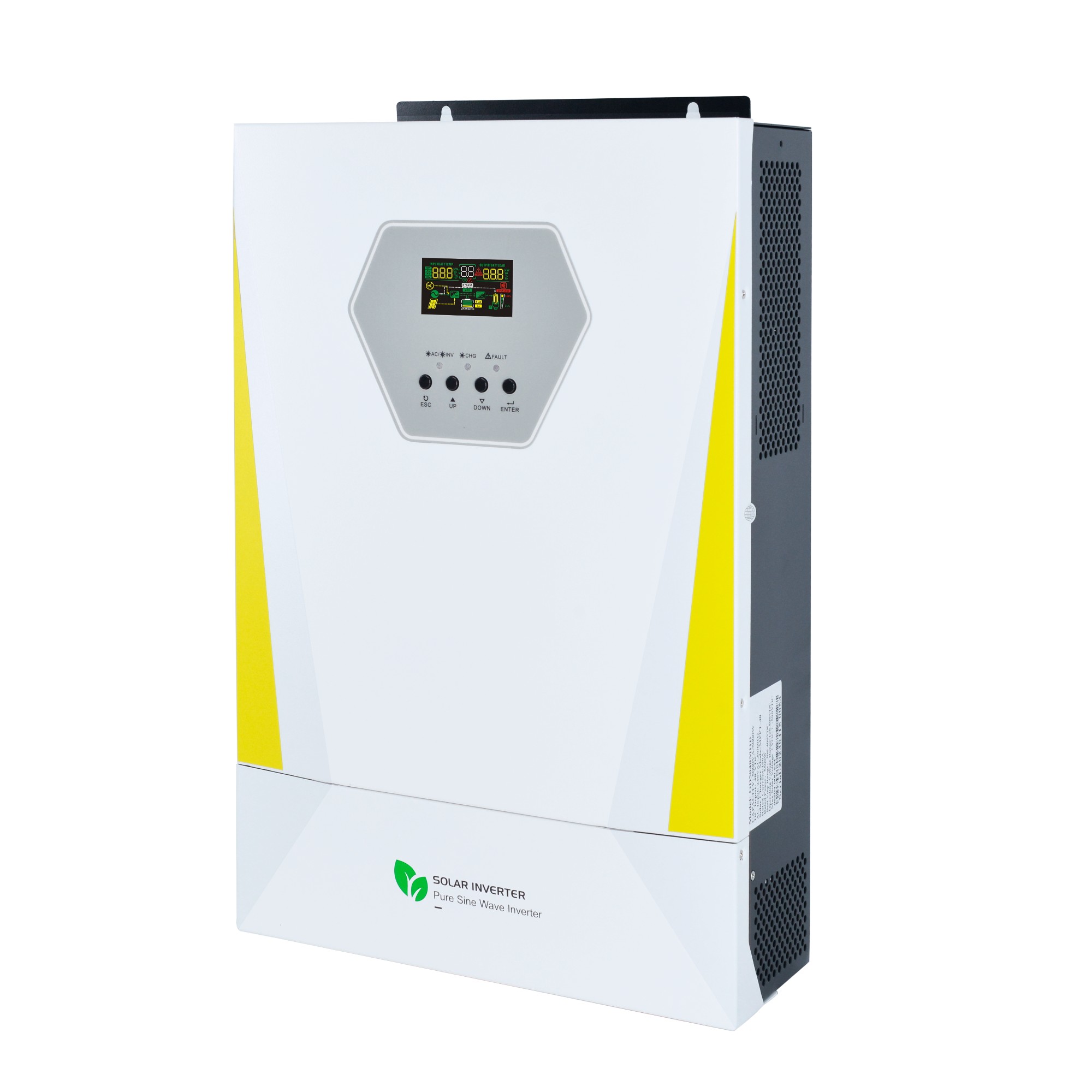

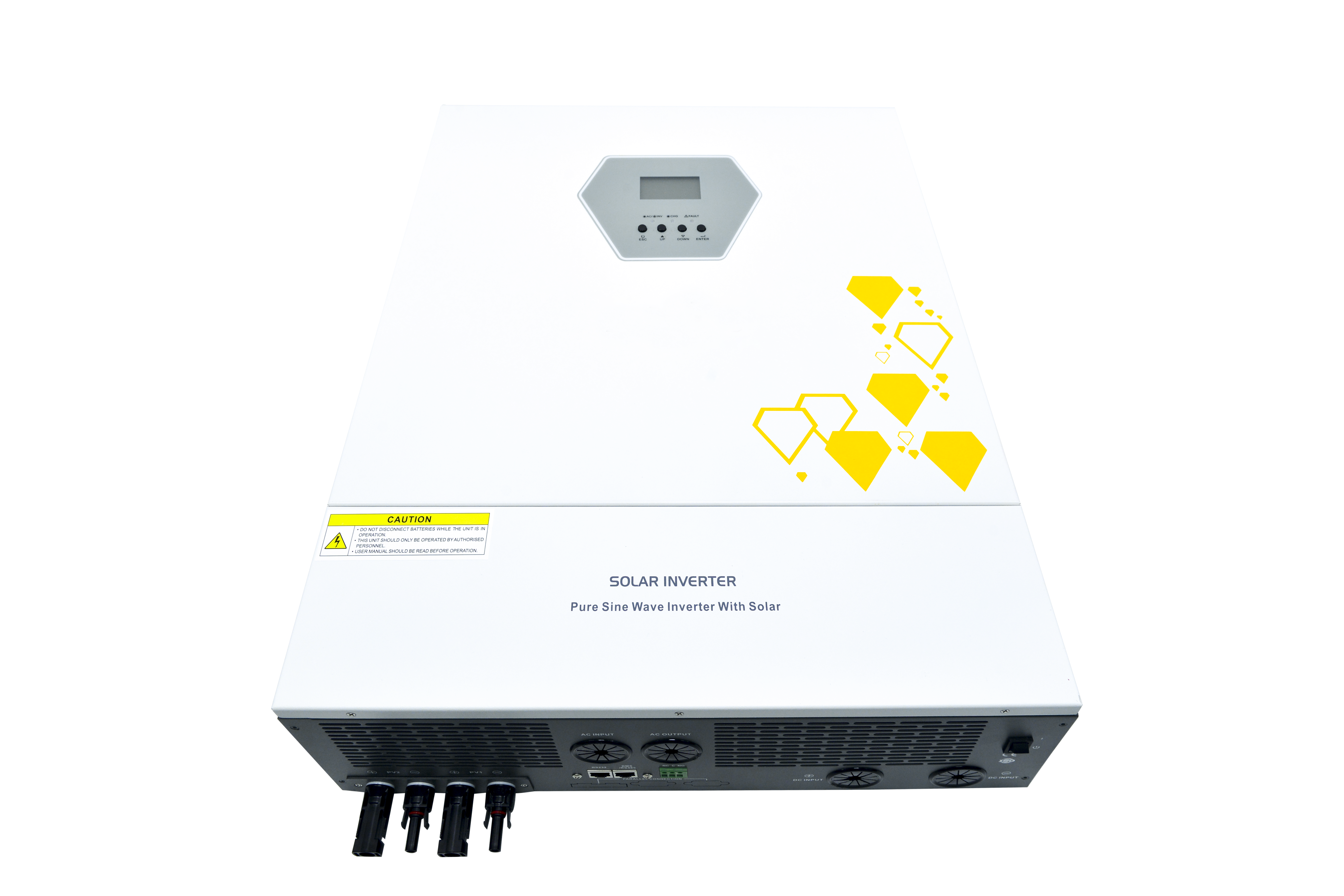

Solar Inverter GD Series 3kw 3.6kw 5.5kw 6.2kw 11kw

Model		ELKTCFGD3024JMH	ELKTCFGD3624JMH	ELKTCFGD5548JMH	ELKTCFGD6248JMH	ELKTCFGD11048JMH
AC Input	Input Formation	L+ N +PE
	AC Input	220/230/240VAC
	Input voltage range	90-280VAC±3V (Normal mode) 170-280VAC±3\/ (UPS mode)
	Frequency	50/ 60Hz (Adaptive)
Output	Rated Power	3kw	3.6kw	5.5kw	6.2kw	11kw
	Output voltage	220/ 23 0/ 240VAC ±5%
	Output Frequency	50 / 60Hz ±0.1%
	Output wave	Pure Sine Wave
	Transfer Time (Adjustable)	10ms for Computer Equipment. 20ms for Household Equipment
	Peak Power	6000 VA	7200 VA	10000 VA	12400VA	22000 VA
	Overload Ability	Battery Mode : 21s 105%~150%Load, 11s 105%~150%Load, 400ms ＞200% Load
	Rated Voltage	24VDC		48 VDC
charger	Constant Charging voltage (Adjustable)	28.2V DC		56.4 VDC
	Float Charging Voltage (Adjustable)	27 VDC		54 VDC
	PV Charging Method	MPPT				MPPT*2
Charger	MAX PV input	4200 W		5500W	6200W	2×5500W
	MPPT Tracking Range	120~500 VDC				90~500VDC
	Voltage working range of maxmium power point	300~400VDC
	MAX PV input voltage	500 VDC
	MAX PV inpuI Current	18 A				18A / 18A
	Max Pv Charge Current	100A				150A
	MAX AC Charge Current	60A			80A	150A
	MAX Charge CurrenI	100A				150A
Display	LCD	Display operating mode/Ioad/input/output
Communication	RS232	5PIN/ Pitch2.54mm, Baud Rate 2400
	Expansion Slot Communication Interface	Lithium Battery BMS Communication Card.WIFI 2×5PiN/Pitch2.54 mm
	Parallel Interface	Not support parallel		Support parallel
Ambient Parameters	Operating Temperature	-10°C~50°C
	Storage Temperature	-10°C~60°C
	Ork Altitude	No more than 1000m, If＞1000m .Rate power will decline, Max 4000m, Refer to IEC62040
	Operating Environment Humidity	20%~95% Non Condensing
	Noise	≤50db
Dimension	L×W×H(mm)	495×312×146m m				570×550×148
Standards and Certifications		EN-IEC 60335-1; EN-IEC 60335-2-29; IEC 62109-1
