Jilin Elink Technology Co.,Ltd.

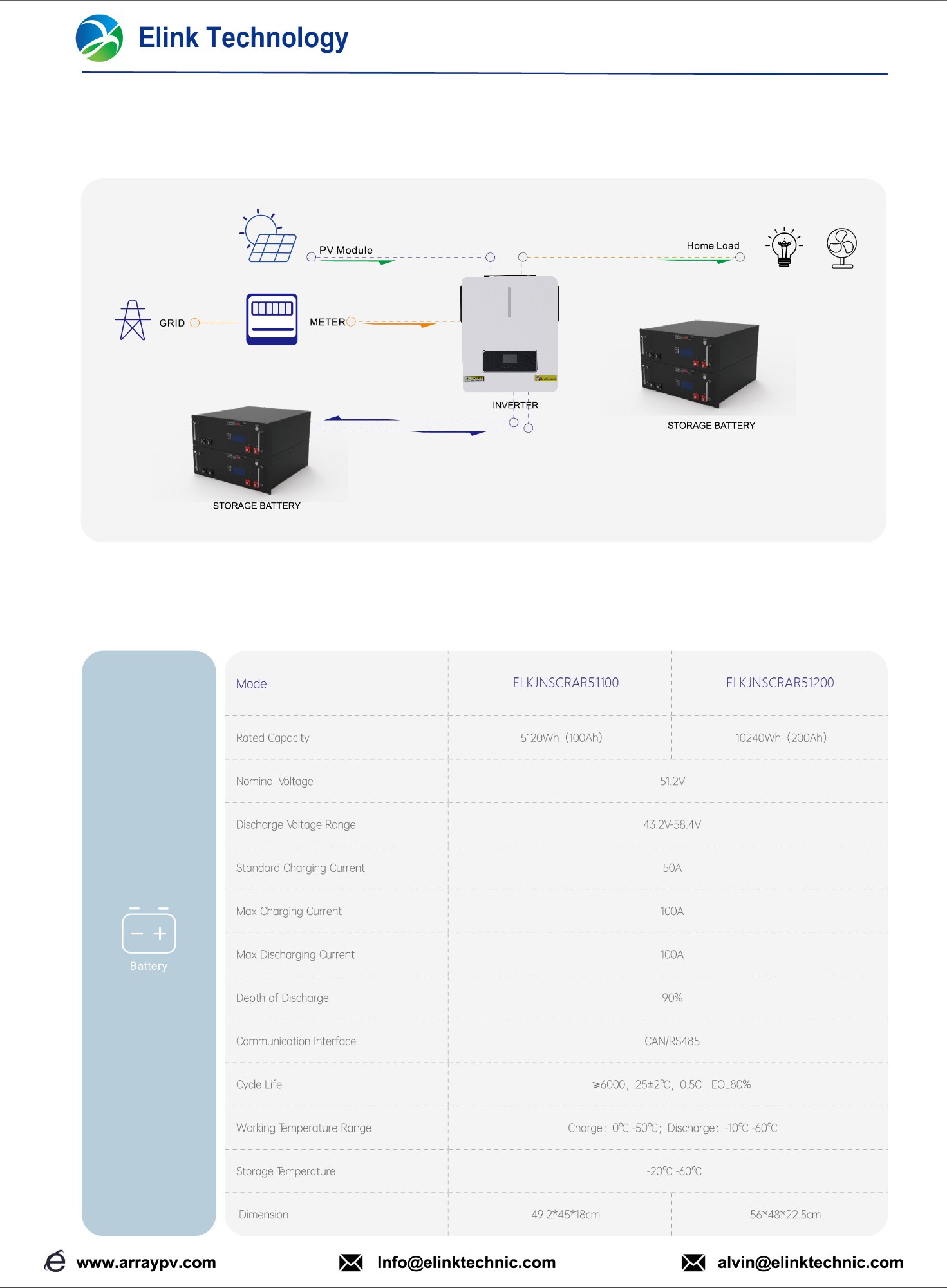

| Model | ELKJNSCRAR51100 | ELKJNSCRAR51200 |
| Rated capacity | 5120wh(100Ah) | 10240wh(200Ah) |
| Nominal voltage | 51.2V | |
| Discharge voltage range | 43.2～58.4V | |
| Standard charging current | 50A | |
| Max charging current | 100A | |
| Max Discharging current | 100A | |
| Depth of discharge | 90% | |
| Communication interface | CAN/RS485 | |
| Cycle life | ≥6000,25±2℃，0.5C，EOL80% | |
| Working temperature Range | Charge:0～50℃；Discharge:-10～60℃. | |
| Storage temperature | -20～60℃. | |
| Dimension | 49.2×45×18cm | 56×48×22.5cm |

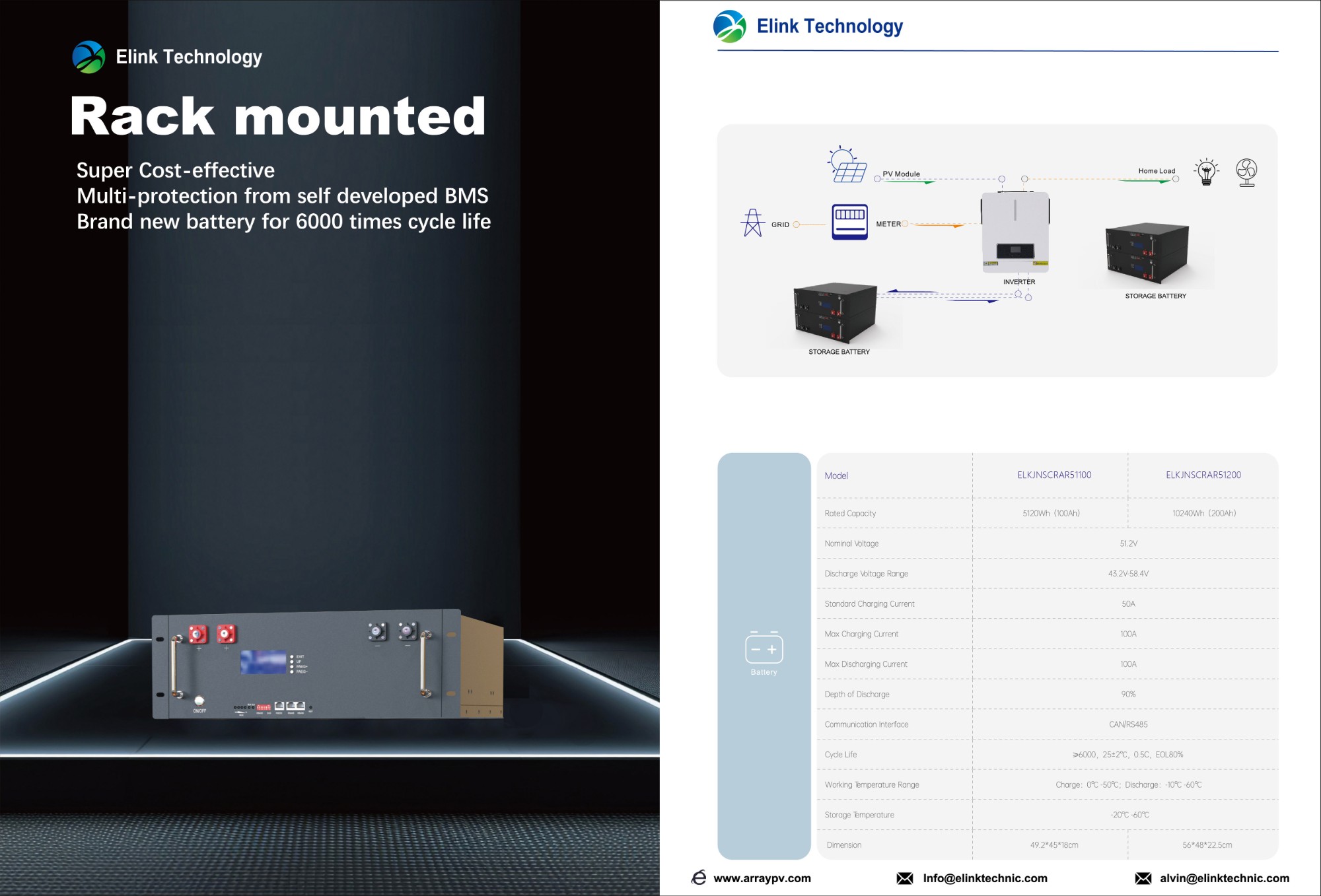

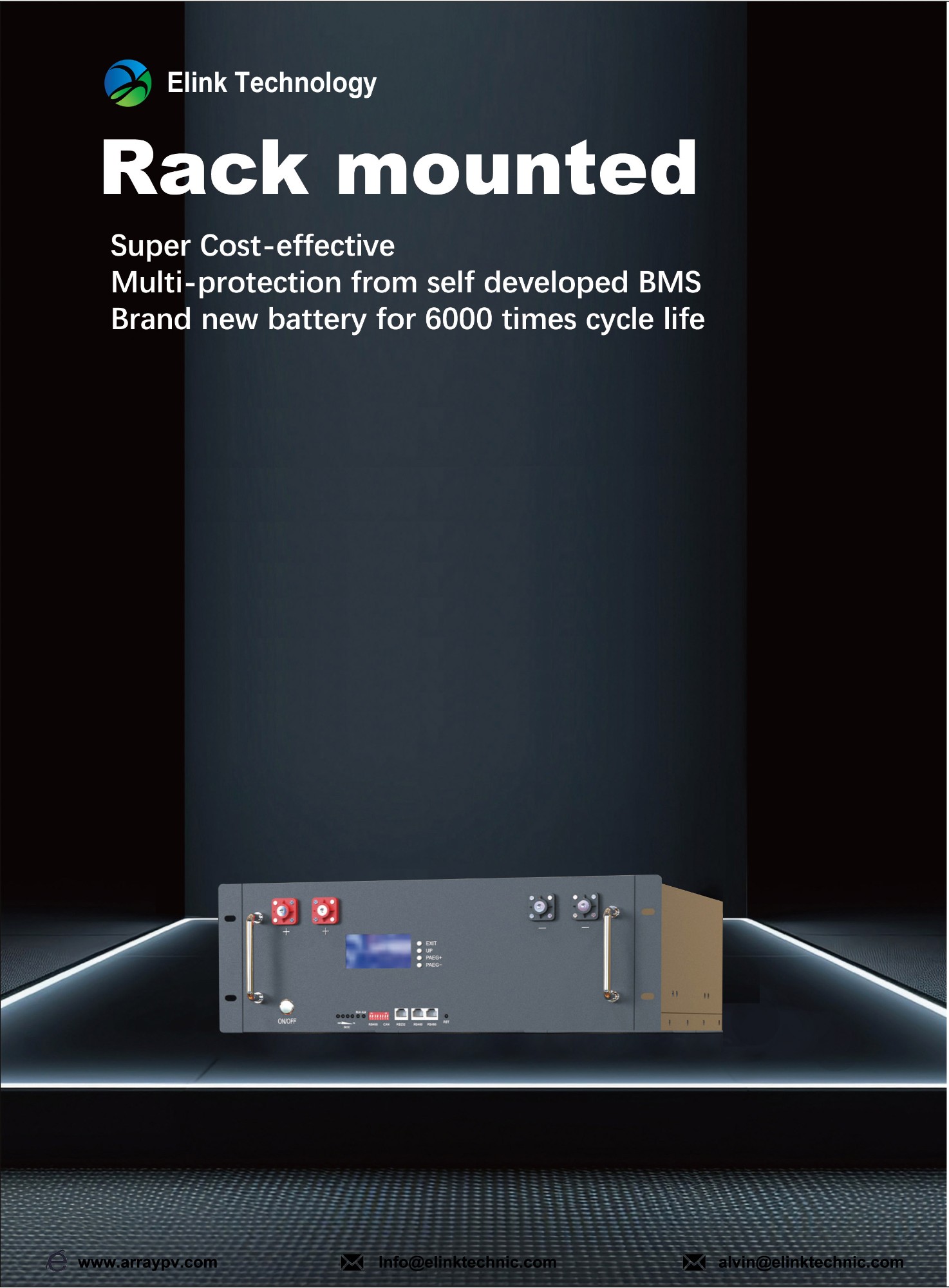

100AH 51.2V Rack-mounted Energy Storage
