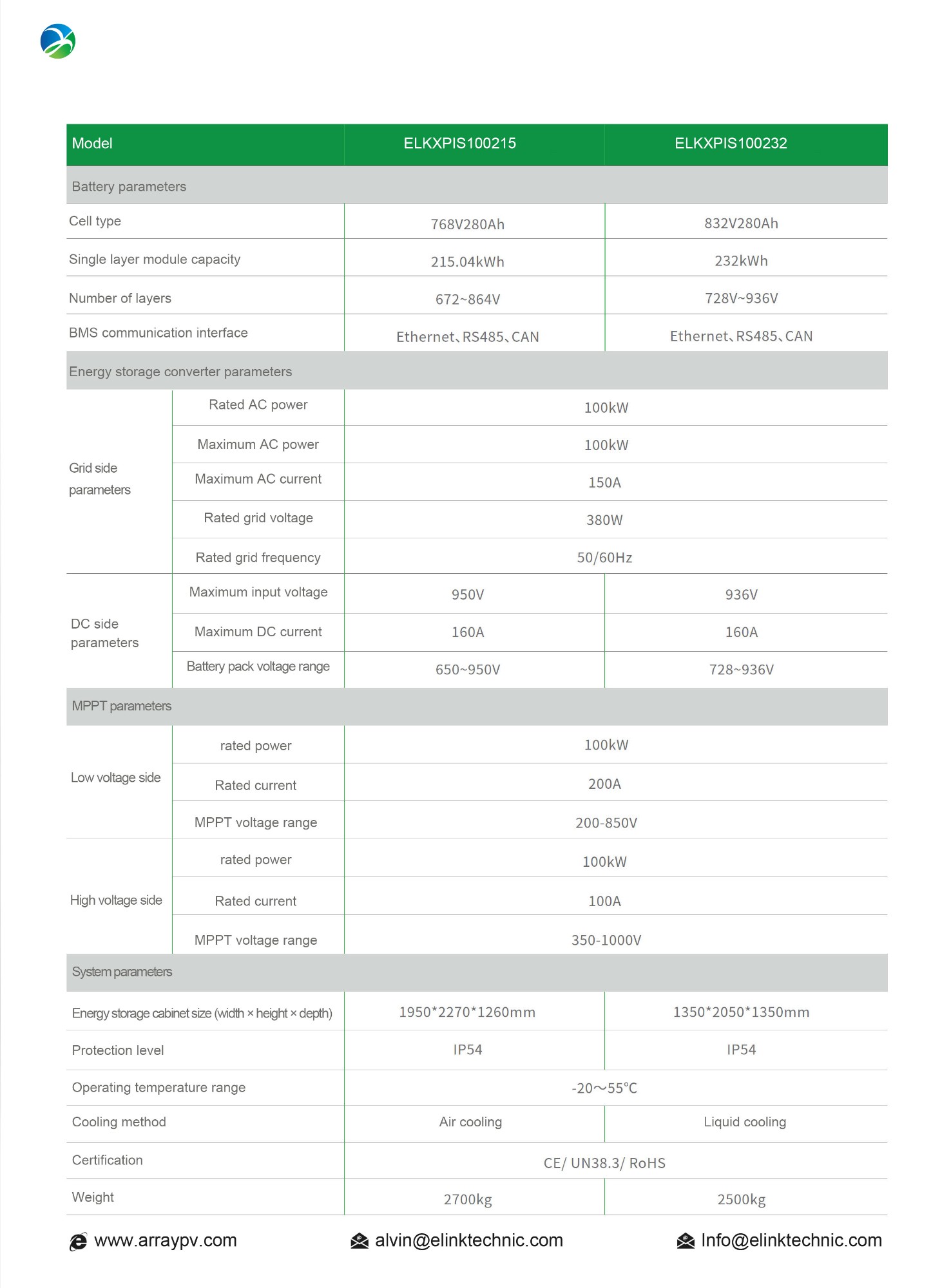

Energy Storage Integrated System

Model		ELKXPIS100215	ELKXPIS100232
Battery parameters
Battery specifications		768V280AH	832V280AH
Battery rated energy		215.04kwh	232kwh
Battery voltage range		672~864V	728~936V
BMS communication interface		Ethernet, RS485, CAN
Energy storage converter parameters
Grid side parameters	Rated AC power	100kw
	Maximum AC power	100kw
	Maximum AC current	150A
	Rated grid voltage	380V
	Rated grid frequency	50/60Hz
DC side parameters	Maximum input voltage	950V	936V
	Maximum DC current	160A
	Battery pack voltage range	650~950V	728~936V
MPPT parameters
Low voltage side	rated power	100kw
	Rated current	200A
	MPPT voltage range	200~850V
High voltage side	rated power	100kw
	Rated current	100A
	Working voltage range	350~1000V
System parameters
Energy storage cabinet size (width × height × depth)		1950×2270×1260mm	1950×2270×1260mm
Protection level		IP54
Operating temperature range		-20~55℃
Cooling method		Air cooling	Liquid cooling
Certification		CE, UN38.3, RoHS
Weight		2700kg	2500kg
