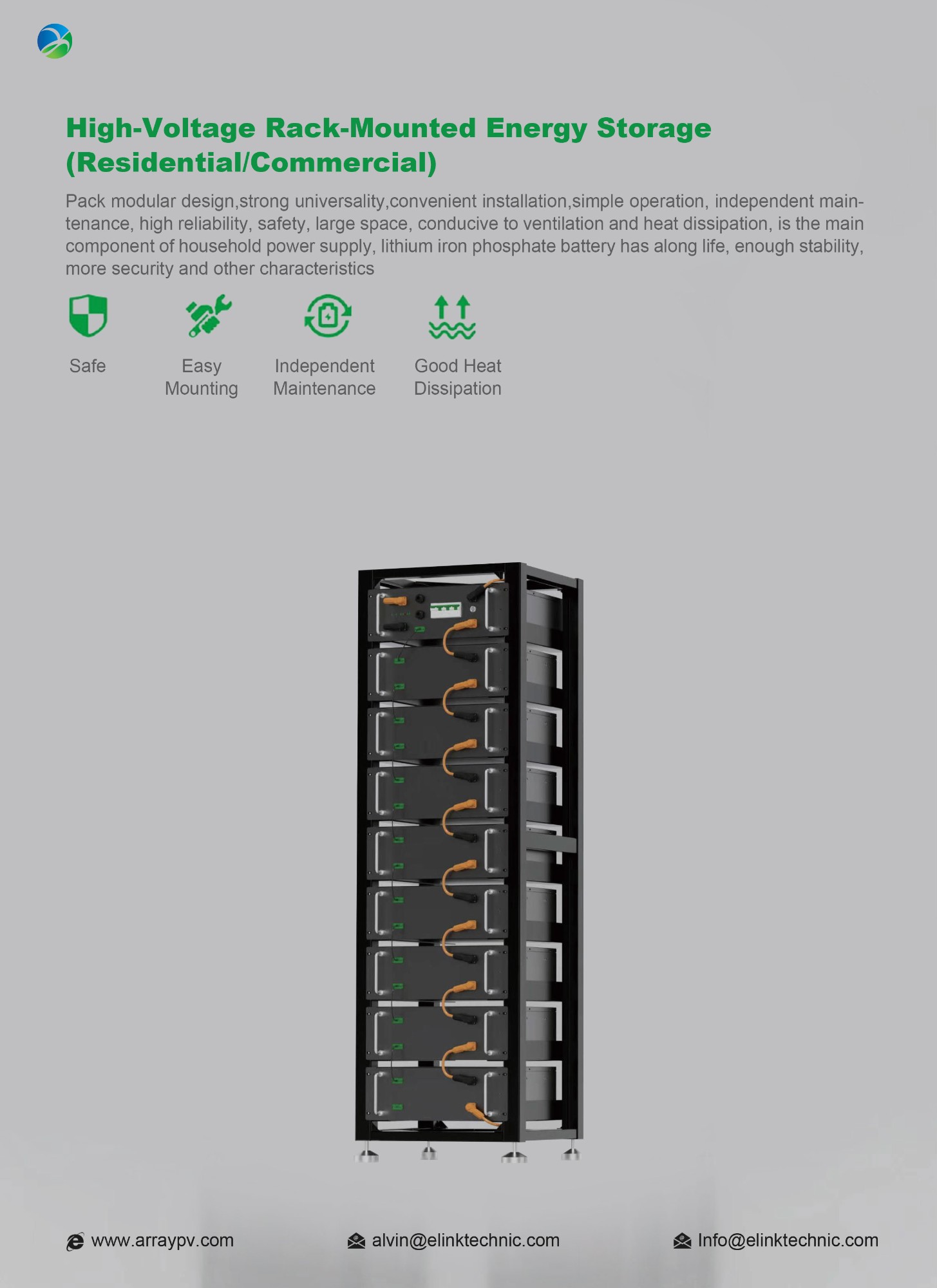

Rack-mounted 409100

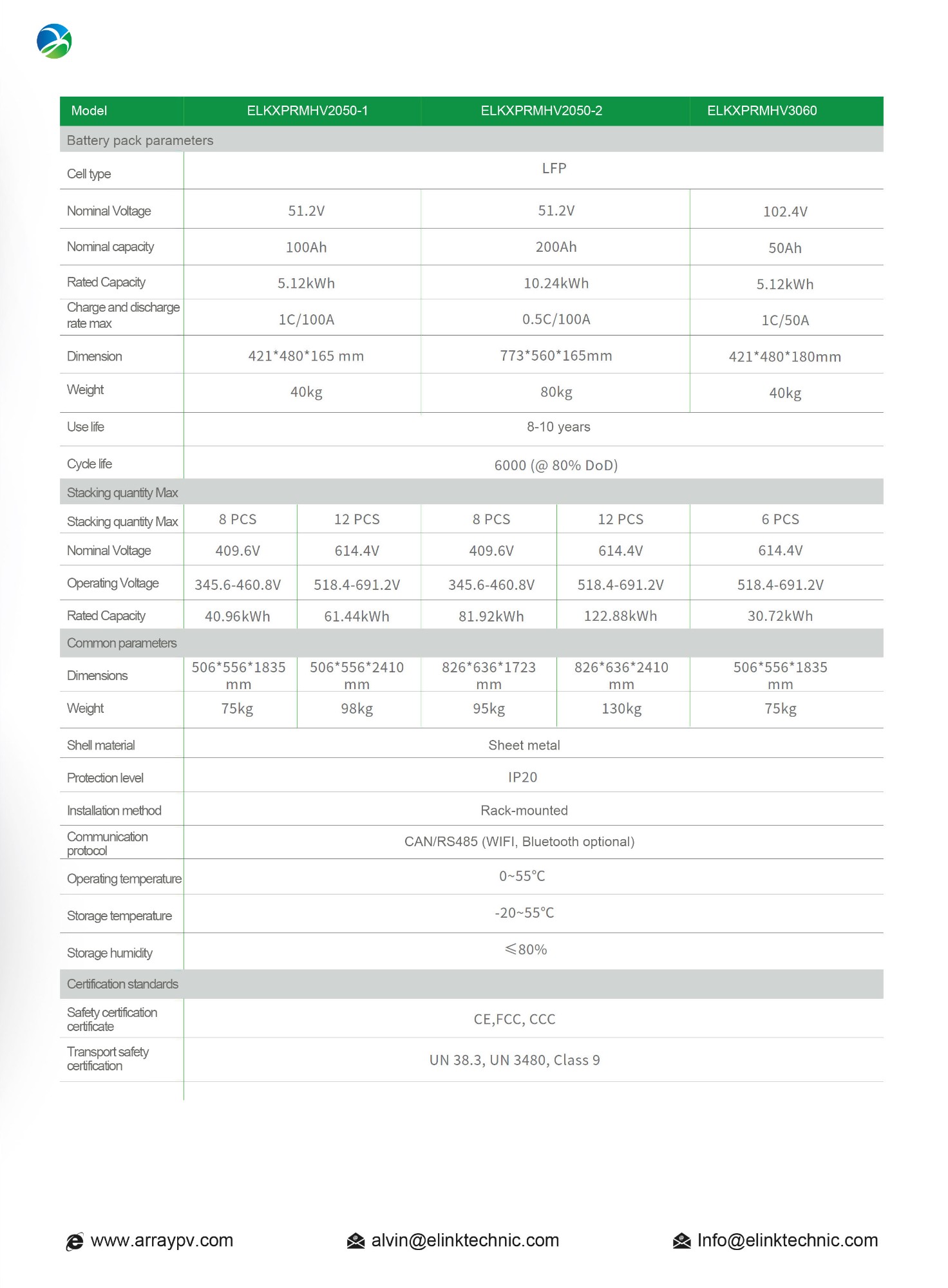

Model	ELKXPRMHV8P2050-1	ELKXPRMHV12P2050-1	ELKXPRMHV8P2050-2	ELKXPRMHV12P2050-2	ELKXPRMHV6P3060-1
Battery pack parameters
Cell type	LFP
Nominal Voltage	51.2V				102.4V
Nominal capacity	100AH		200AH		50AH
Rated Capacity	5.12kwh		10.24kwh		5.12kwh
Charge and discharge rate max	1C/100A		0.5C/100A		1C/50A
Dimension	421×480×165mm		773×560×165mm		421×480×180mm
Weight	40kg		80kg		40kg
Use life	8-10 years
Cycle life	6000{@80%DOD}

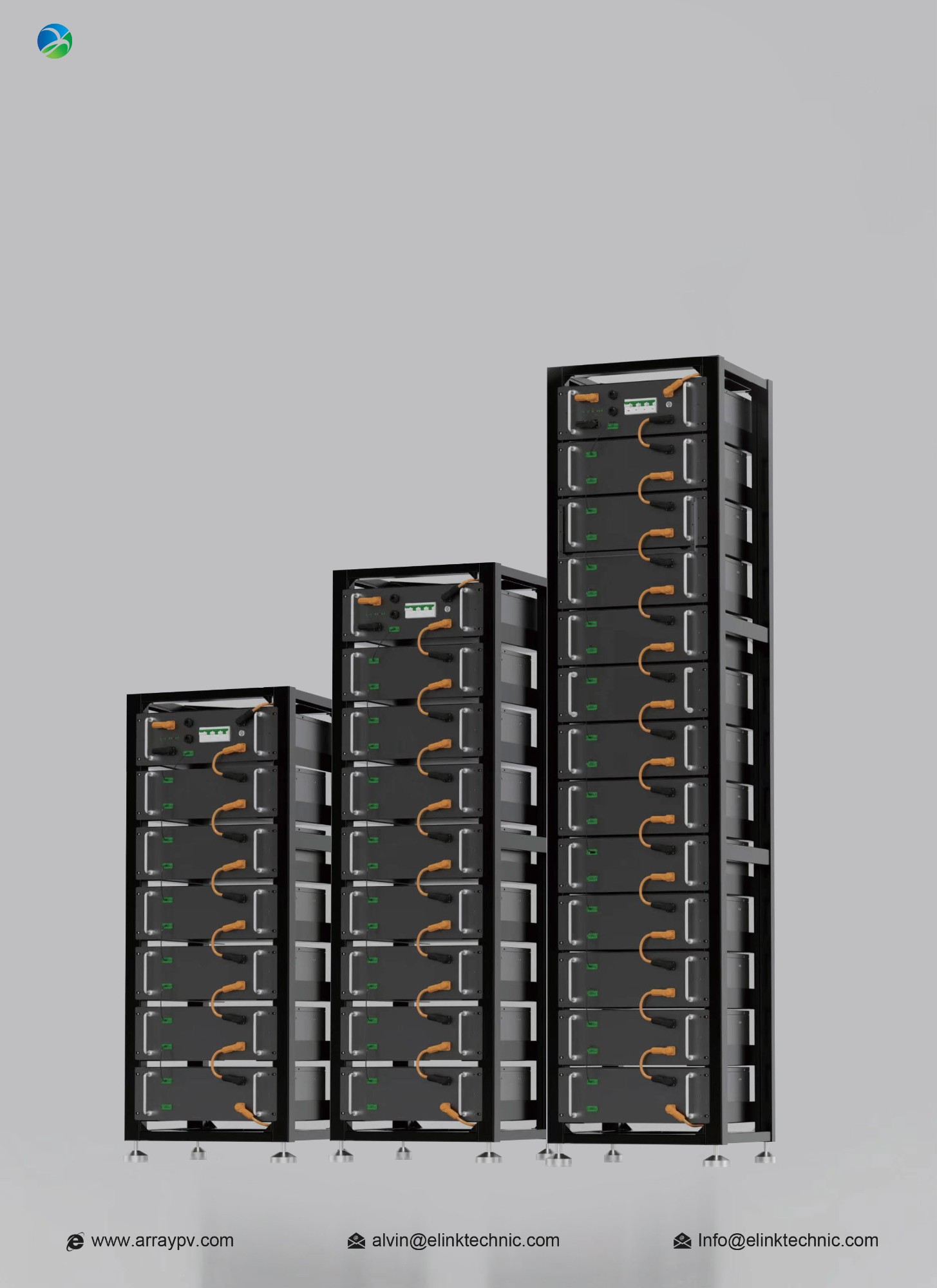

Stacking quantity Max	8PCS	12PCS	8PCS	12PCS	6PCS
Nominal Voltage	409.6V	614.4V	409.6V	614.4V	614.4V
Operating Voltage	345.6-460.8V	518.4-691.2V	345.6-460.8V	518.4-691.2V	518.4-691.2V
Rated Capacity	40.96kwh	61.44kwh	81.92kwh	122.88kwh	30.72kwh
Common parameters
Dimensions	506×556×1835mm	506×556×2410mm	826×636×1723mm	826×636×2410mm	506×556×1835mm
Weight	75kg	98kg	95kg	130kg	75kg
Shell material	sheet metal
Protection level	IP20
Installation method	Rack-mounted
Communication protocol	CAN/RS485 (WIFI, Bluetooth optional)
Operating temperature	0~55℃
Storage temperature	-20~55℃
Storage humidity	≤80%
Certification standards
Safety certification certificate	CE, FCC, CCC
Transport safety certification	UN38.3, UN3480, Class 9
