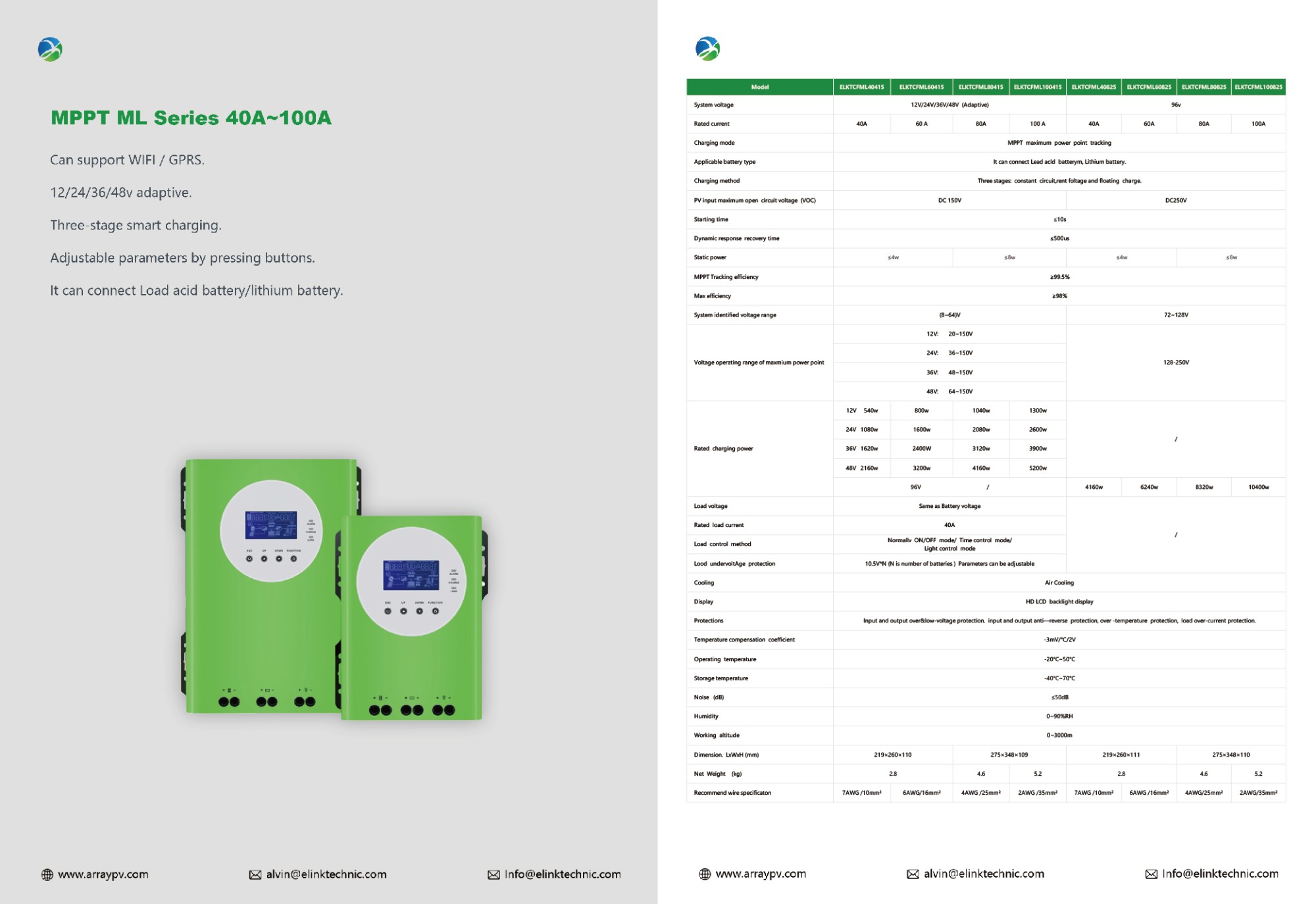

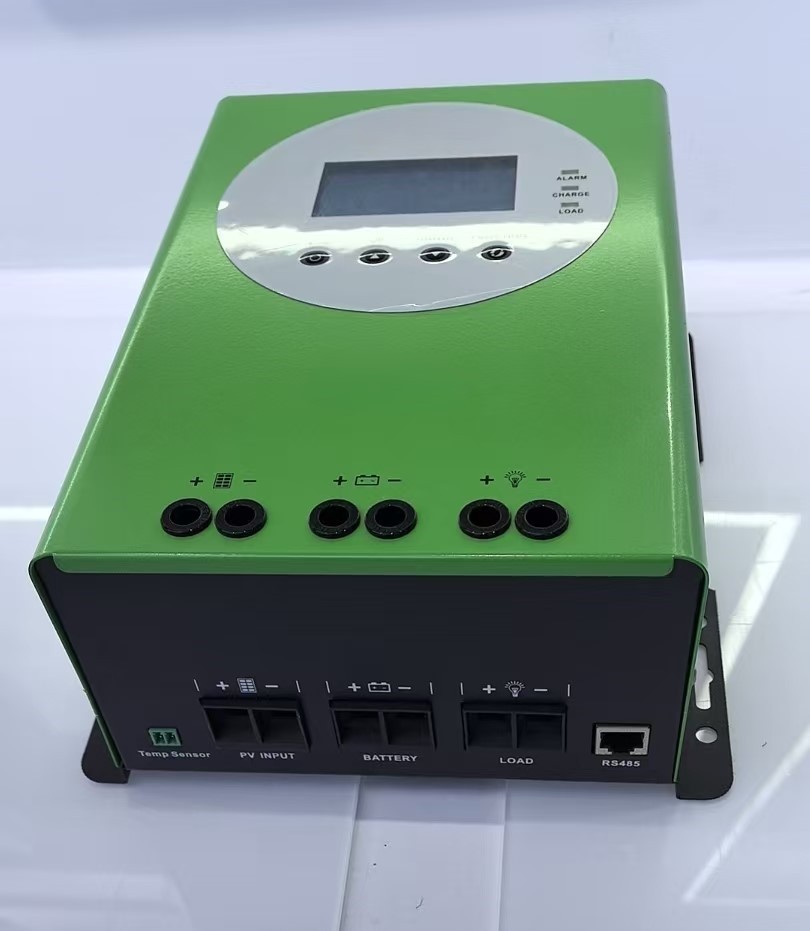

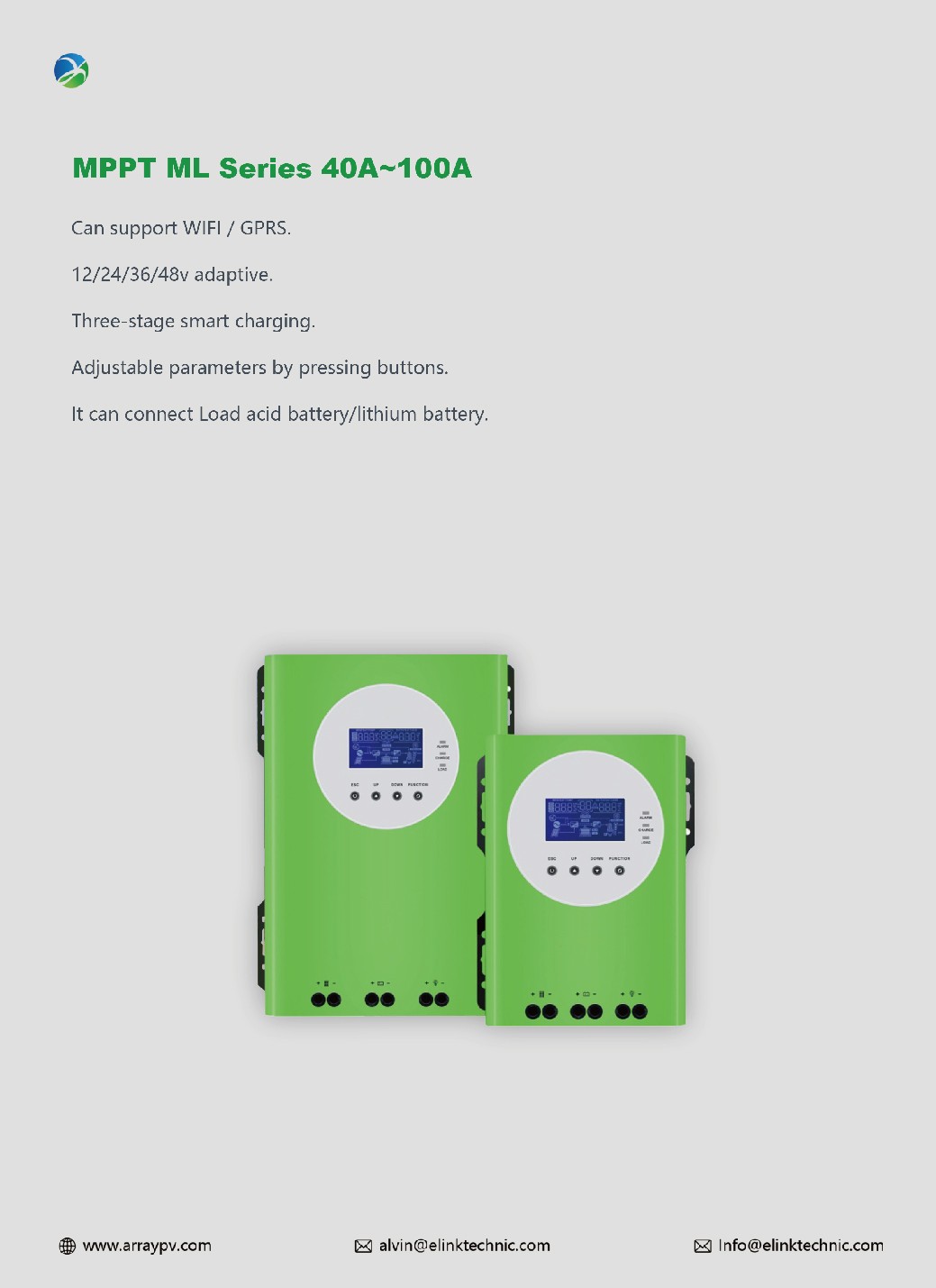

60A 12V 24V 36V 48V Adaptive solar charge controller MPPT

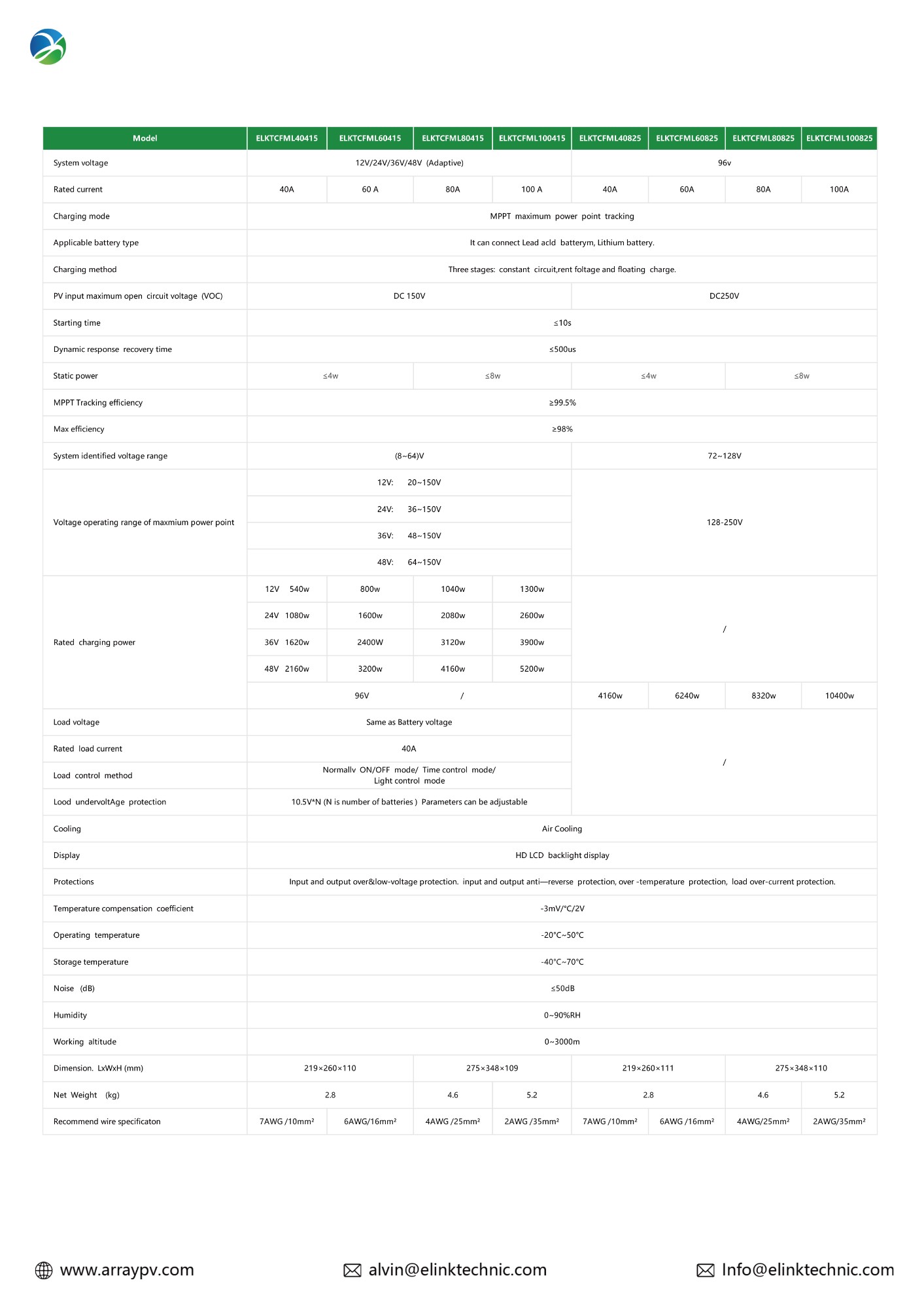

Model	ELKTCFML40415	ELKTCFML60415	ELKTCFML80415	ELKTCFML100415	ELKTCFML40825	ELKTCFML60825	ELKTCFML80825	ELKTCFML100825
System voltage	12V/24V/36V/48V (Adaptive)				96v
Rated current	40A	60 A	80A	100 A	40A	60A	80A	100A
Charging mode	MPPT maximum power point tracking
Applicable battery type	It can connect Lead acld batterym, Lithium battery.
Charging method	Three stages: constant circuit,rent foltage and floating charge.
PV input maximum open circuit voltage (VOC)	DC 150V				DC250V
Starting time	≤10s
Dynamic response recovery time	≤500us
Static power	≤4w		≤8w		≤4w		≤8w
MPPT Tracking efficiency	≥99.5%
Max efficiency	≥98%
System identified voltage range	(8~64)V				72~128V
Voltage operating range of maxmium power point	12V: 20~150V				128~250V
	24V: 36~150V
	36V: 48~150V
	48V: 64~150V
Rated charging power	12V 540w	800w	1040w	1300w	/
	24V 1080w	1600w	2080w	2600w
	36V 1620w	2400W	3120w	3900w
	48V 2160w	3200w	4160w	5200w
	96V /				4160w	6240w	8320w	10400w
Load voltage	Same as Battery voltage				/
Rated load current	40A
Load control method	Normallv ON/OFF mode/ Time control mode/ Light control mode
Lood undervoltAge protection	10.5V*N (N is number of batteries ) Parameters can be adjustable
Cooling	Air Cooling

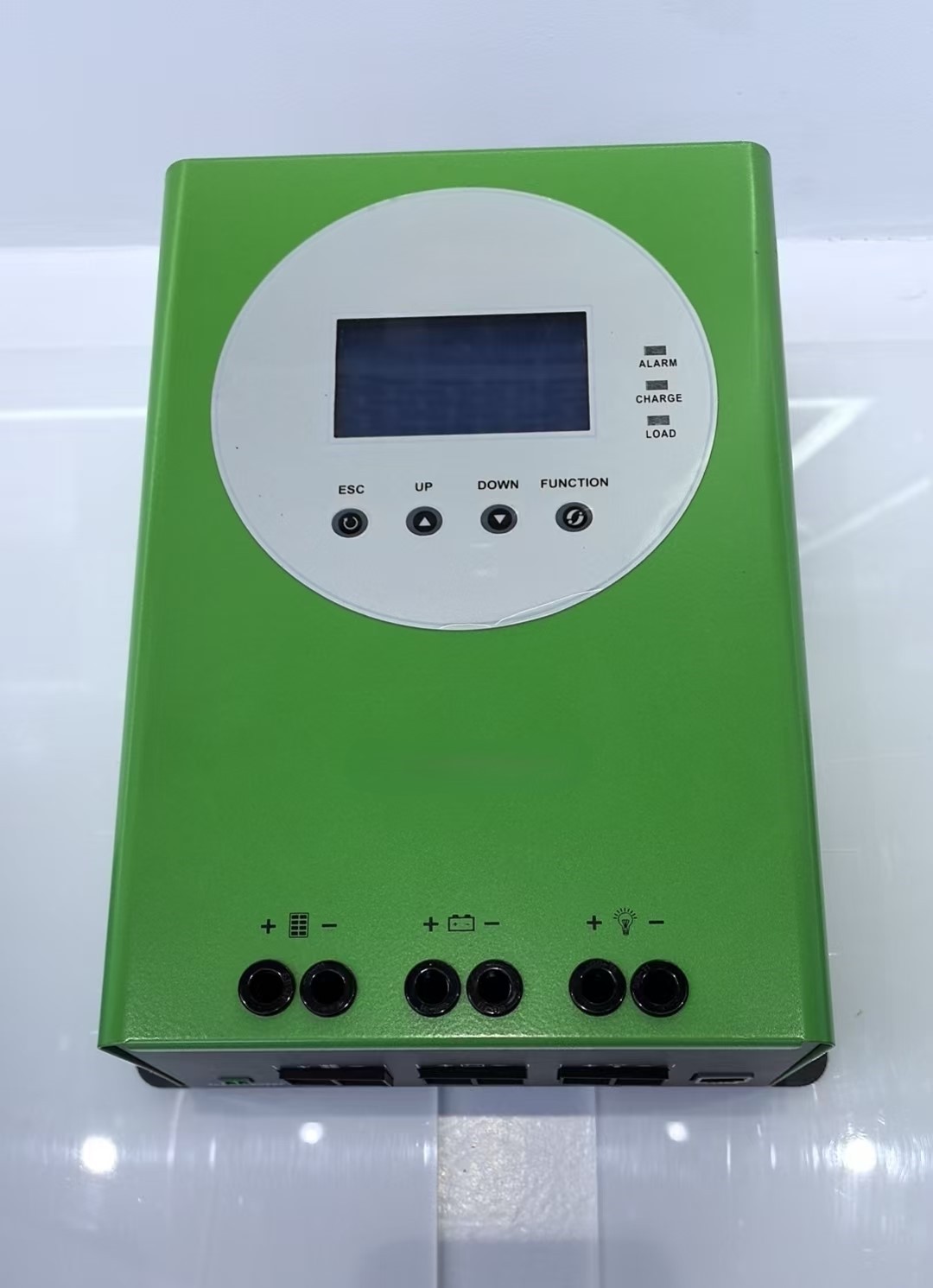

Display	HD LCD backlight display
Protections	Input and output over&low-voltage protection. input and output anti—reverse protection, over -temperature protection, load over-current protection.
Temperature compensation coefficient	-3mV/°C/2V
Operating temperature	-20°C~50°C
Storage temperature	-40°C~70°C
Noise (dB)	≤50dB
Humidity	0~90%RH
Working altitude	0~3000m
Dimension. LxWxH (mm)	219×260×110		275×348×109		219×260×111		275×348×110
Net Weight (kg)	2.8		4.6	5.2	2.8		4.6	5.2
Recommend wire specificaton	7AWG /10mm²	6AWG/16mm²	4AWG /25mm²	2AWG /35mm²	7AWG /10mm²	6AWG /16mm²	4AWG/25mm²	2AWG/35mm²
