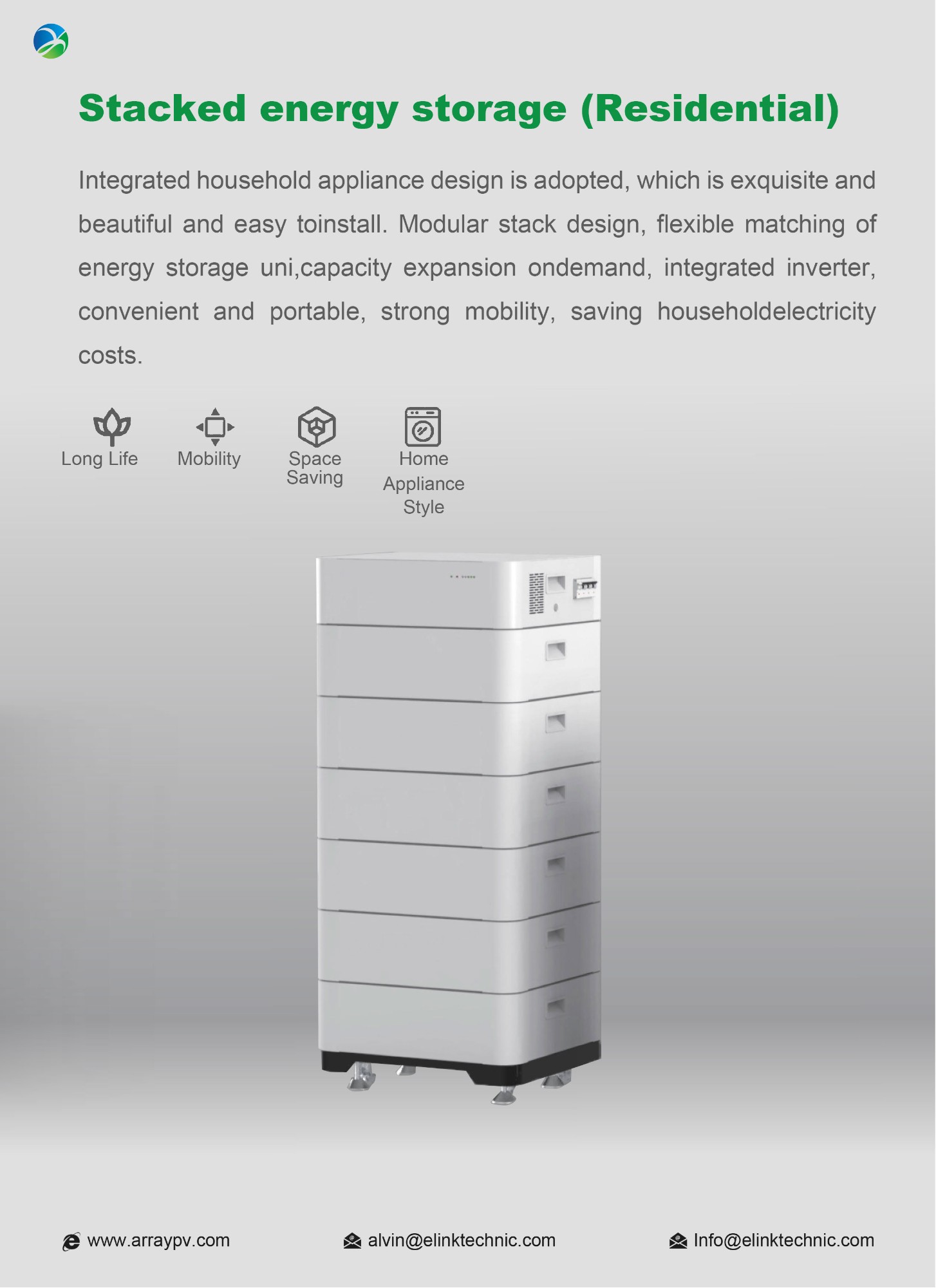

50AH 614.4V 30.72kwh Residential High Voltage Stacked Energy Storage 2

Model	ELKXPSHVR51100	ELKXPSRHVR10250
Battery pack parameters
Cell type	LFP
Nominal Voltage	51.2V	102.4V
Nominal capacity	100Ah	50Ah
Rated Capacity	5.12kwh
max Charge and discharge rate max	1C/100A	1C/50A
Dimension	550×500×171mm
Weight	40kg
Use life	8-10 years
Cycle life	6000( @80% DoD )
Stacking quantity Max	8PCS	6PCS
Nominal Voltage	409.6V	614.4V
Operating Voltage	345.6~460.8V	518.4~691.2V
Rated Capacity	40.96kwh	30.72kwh
Dimensions	550×500×1629mm	550×500×1287mm
Common parameters
Shell material	Sheet metal
Protection level	IP20
Installation method	Stacked
Communication protocol	CAN/RS485 (WIFI, Bluetooth optional)
Operating temperature	0~55℃
Storage temperature	-20~55℃
Ambient Humidity	≤80%
Certification standards
Safety certification certificate	CE, FCC, CCC
Transport safety certification	UN38.3, UN3480, Class 9
