300~400Wp

Home

Products

Solar cell module

300~400Wp

166mm 380~400Wp HJT

166mm 380~400Wp HJT

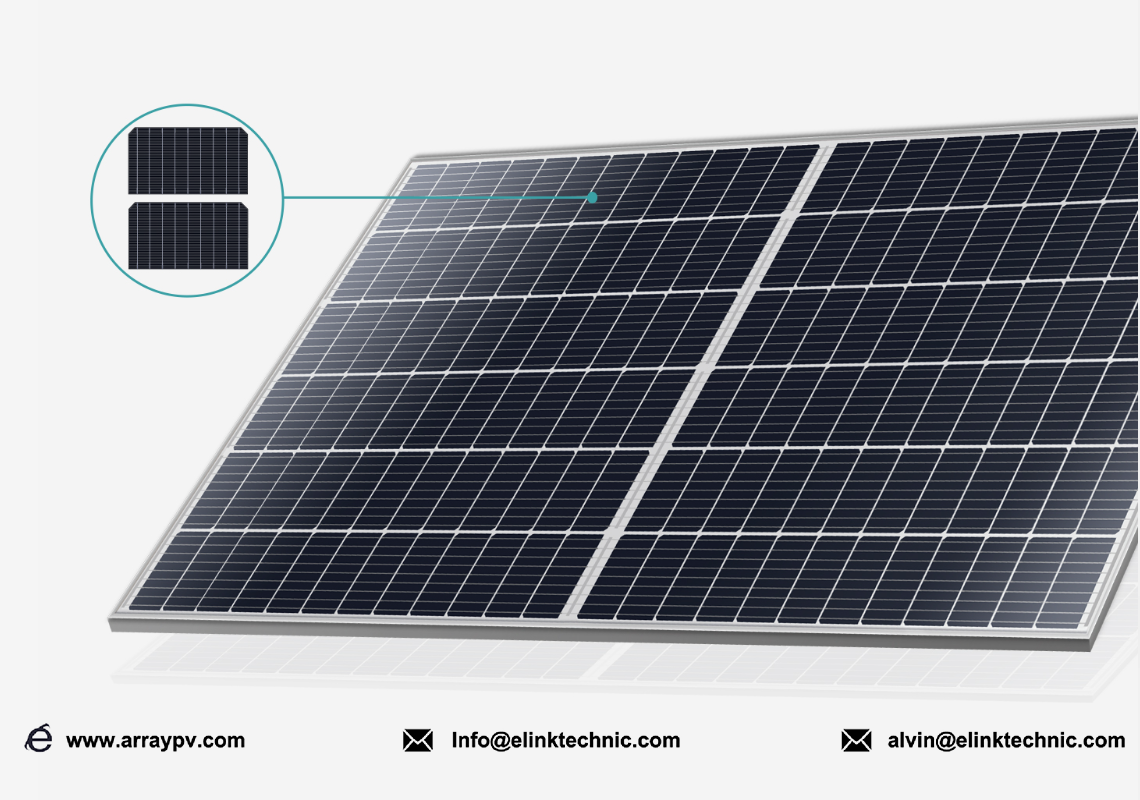

HJT + MBB + Half-cut Solar Technology
480W Solar Panel, 22.1% Ultra-high Eff

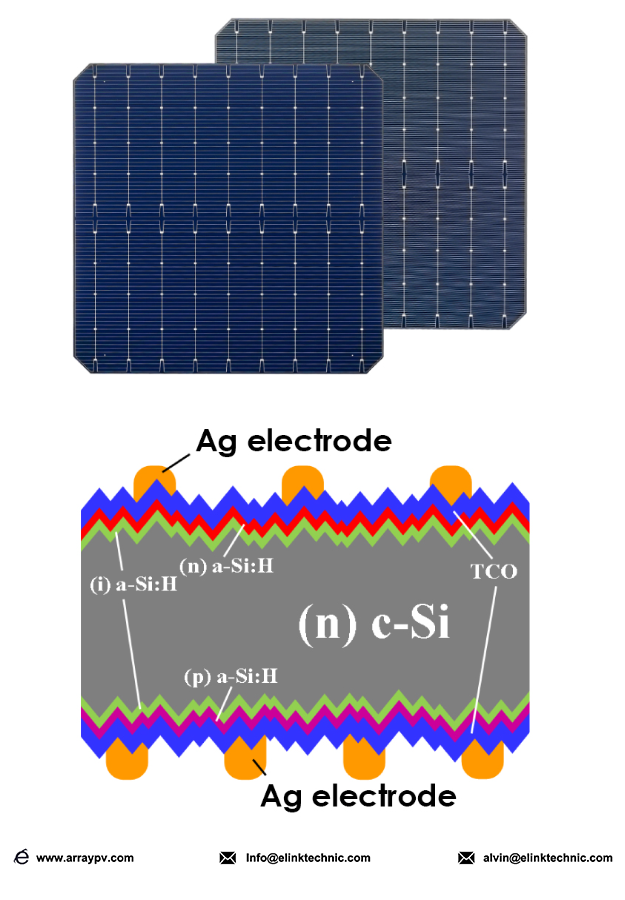

Based on N-type Silicon wafer, HJT solar panels with 9BB 144 half-cut cells have higher efficiency, better performance and durability. The manufacturing process of an HJT Cell is more efficient and taking less step compare with other cell processing technology. HJT solar cell is also a natural bifacial cell, with much better stable solar cell color.

-0.24%/℃ Low Temperature
Excellent weak light performance

HJT 480W solar panel has Excellent weak light performance. When under the cloudy, haze condition, weak light performance help get more production.A temperature coefficient rating of -0.24%/°C，helps generate greater electricity output on the hottest days. Support HJT solar panels to generate up to 4% more power than mainstream PERC solar panels at high temperatures.

30years 90%+ Output
90%+ Bifaciality

Compared with PERC solar panels with a power warranty of 80% for 25 years, HJT 480W solar panel can ensure more than 90% power generation after 30 years, and the power generation within 30 years is much higher than PERC solar panel.
In addition, 480W HJT solar panel has 90%+ Bifaciality, the power generated from the back of solar panel reaches more than 90% of that from the front. Double stacked power generation is higher.

NO PID, NO LID
HJT 480W solar panel use HJT solar cell technology, result in extremely low LID and PID which supports reliability and longevity. Supports 5% more power generation than PERC solar panel.

①30years 90%+ Output
②22.1%Ultra-high Eff
③90%+ Bifaciality
④)-0.3%°C Low Temp Coeff
⑤NO PID，NO LID
⑥Low-light Performance
⑦No Color Difference
⑧Guaranteed Better Durability

Product Detail

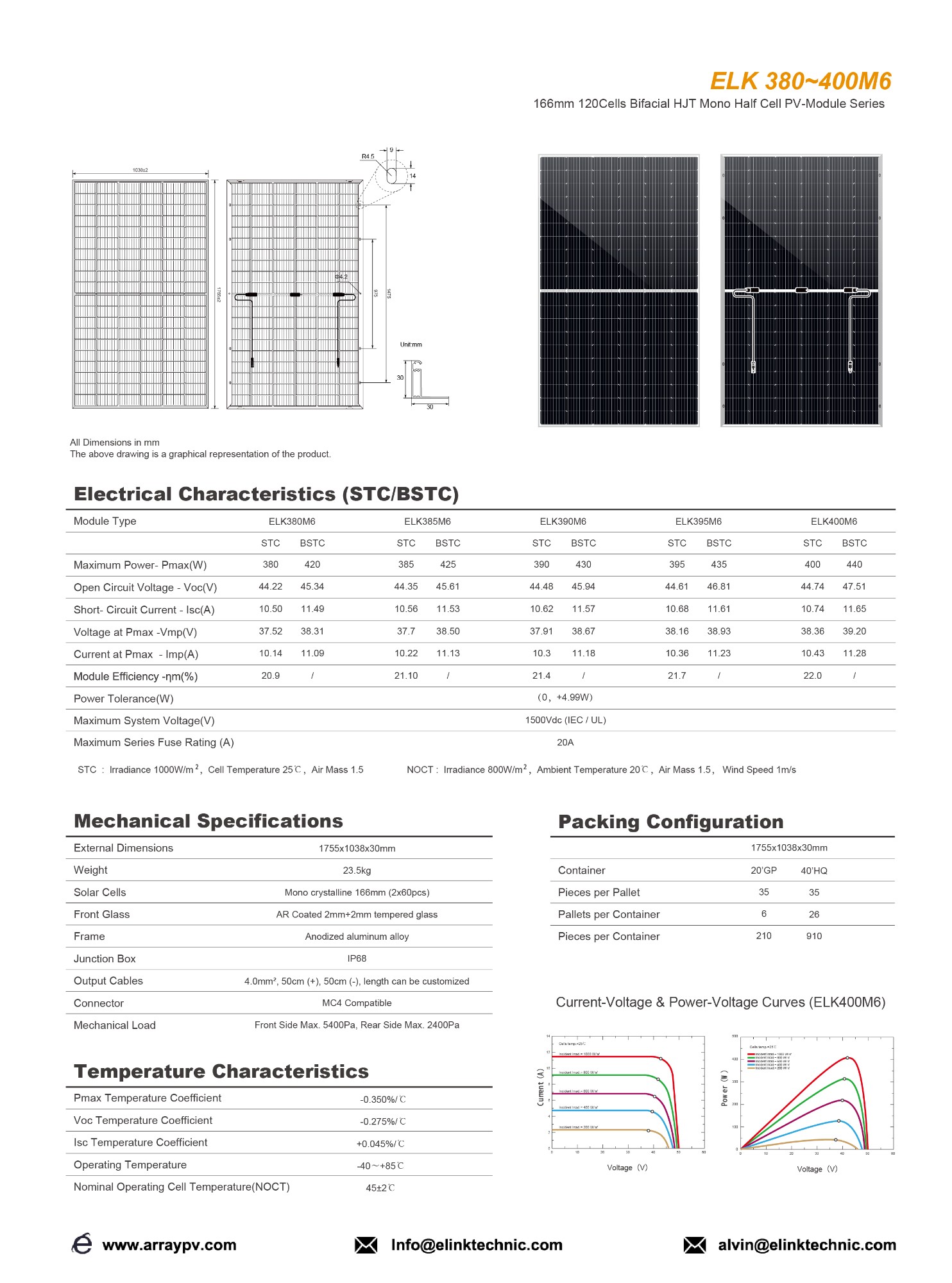

Mechanical Specifications
External Dimensions	1755x1038x30mm
Weight	23.5kg
Solar Cells	Mono crystalline 182mm (2x60pcs)
Front Glass	AR Coated 3.2 mm tempered glass
Frame	Anodized aluminum alloy
Junction Box	IP68
Output Cables	4.0mm², 50cm (+), 50cm (-), length can be customized
Connector	MC4 EVO2
Mechanical Load	Front Side Max. 5400Pa, Rear Side Max. 2400Pa
