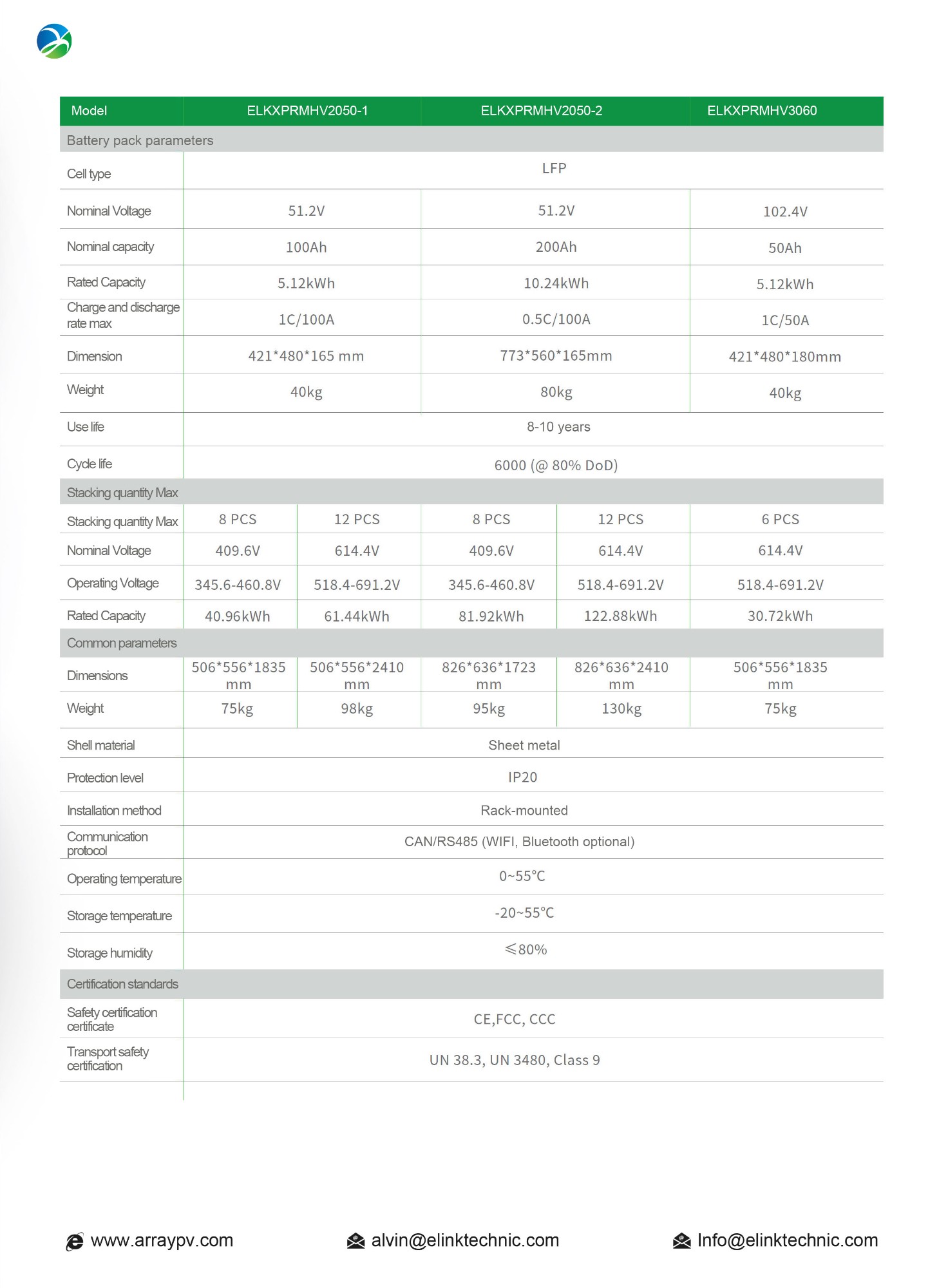

Model
|
ELKXPRMHV8P2050-1
|
ELKXPRMHV12P2050-1
|
ELKXPRMHV8P2050-2
|
ELKXPRMHV12P2050-2
|
ELKXPRMHV6P3060-1
|
Battery pack parameters
|
Cell type
|
LFP
|
Nominal Voltage
|
51.2V
|
102.4V
|
Nominal capacity
|
100AH
|
200AH
|
50AH
|
Rated Capacity
|
5.12kwh
|
10.24kwh
|
5.12kwh
|
Charge and discharge rate max
|
1C/100A
|
0.5C/100A
|
1C/50A
|
Dimension
|
421×480×165mm
|
773×560×165mm
|
421×480×180mm
|
Weight
|
40kg
|
80kg
|
40kg
|
Use life
|
8-10 years
|
Cycle life
|
6000{@80%DOD}
|
Stacking quantity Max
|
8PCS
|
12PCS
|
8PCS
|
12PCS
|
6PCS
|
Nominal Voltage
|
409.6V
|
614.4V
|
409.6V
|
614.4V
|
614.4V
|
Operating Voltage
|
345.6-460.8V
|
518.4-691.2V
|
345.6-460.8V
|
518.4-691.2V
|
518.4-691.2V
|
Rated Capacity
|
40.96kwh
|
61.44kwh
|
81.92kwh
|
122.88kwh
|
30.72kwh
|
Common parameters
|
Dimensions
|
506×556×1835mm
|
506×556×2410mm
|
826×636×1723mm
|
826×636×2410mm
|
506×556×1835mm
|
Weight
|
75kg
|
98kg
|
95kg
|
130kg
|
75kg
|
Shell material
|
sheet metal
|
Protection level
|
IP20
|
Installation method
|
Rack-mounted
|
Communication protocol
|
CAN/RS485 (WIFI, Bluetooth optional)
|
Operating temperature
|
0~55℃
|
Storage temperature
|
-20~55℃
|
Storage humidity
|
≤80%
|
Certification standards
|
Safety certification certificate
|
CE, FCC, CCC
|
Transport safety certification
|
UN38.3, UN3480, Class 9
|
