Off grid

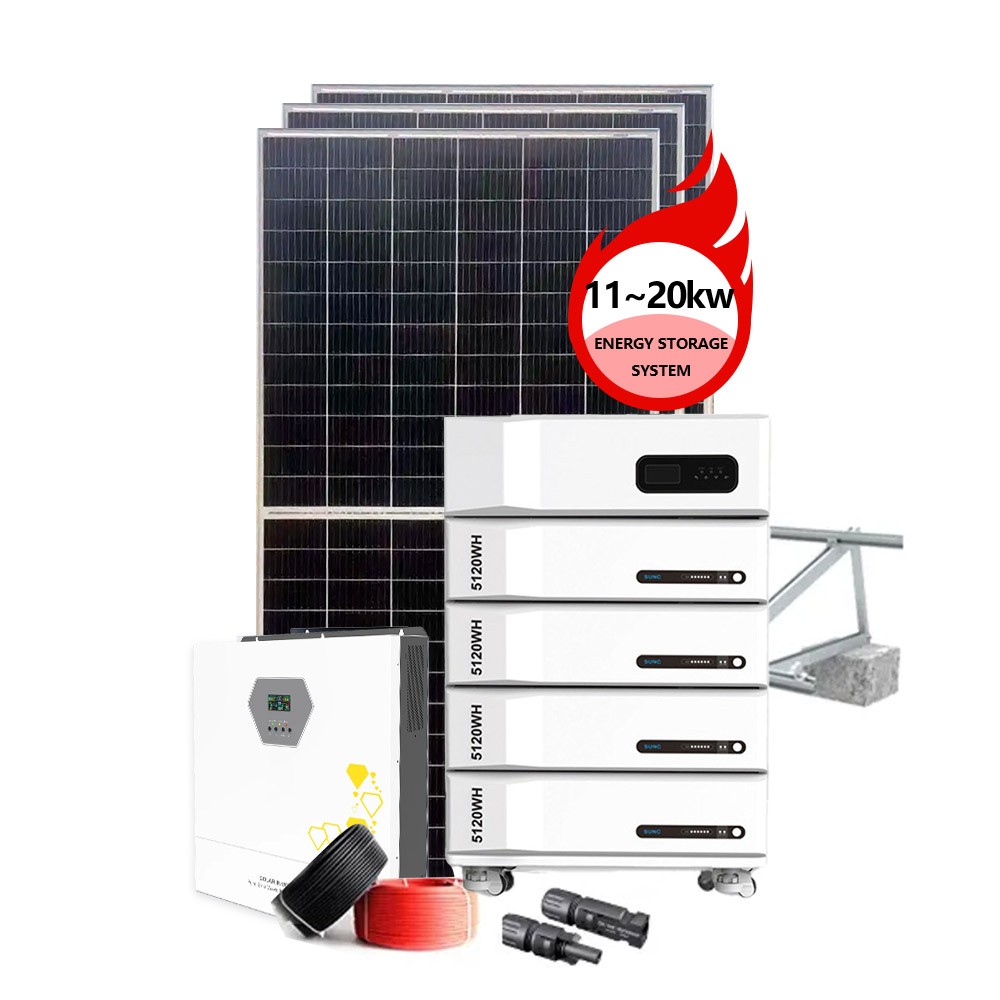

11~20kw Off grid System for residential

Item
Model
Description
Quantity
1
ELK600M-144
Half Cell
19-34pcs
2
Hybrid Solar Inverter
Power: 3kw/5KW/7KW
1set
Output Voltage:Three Phase
3

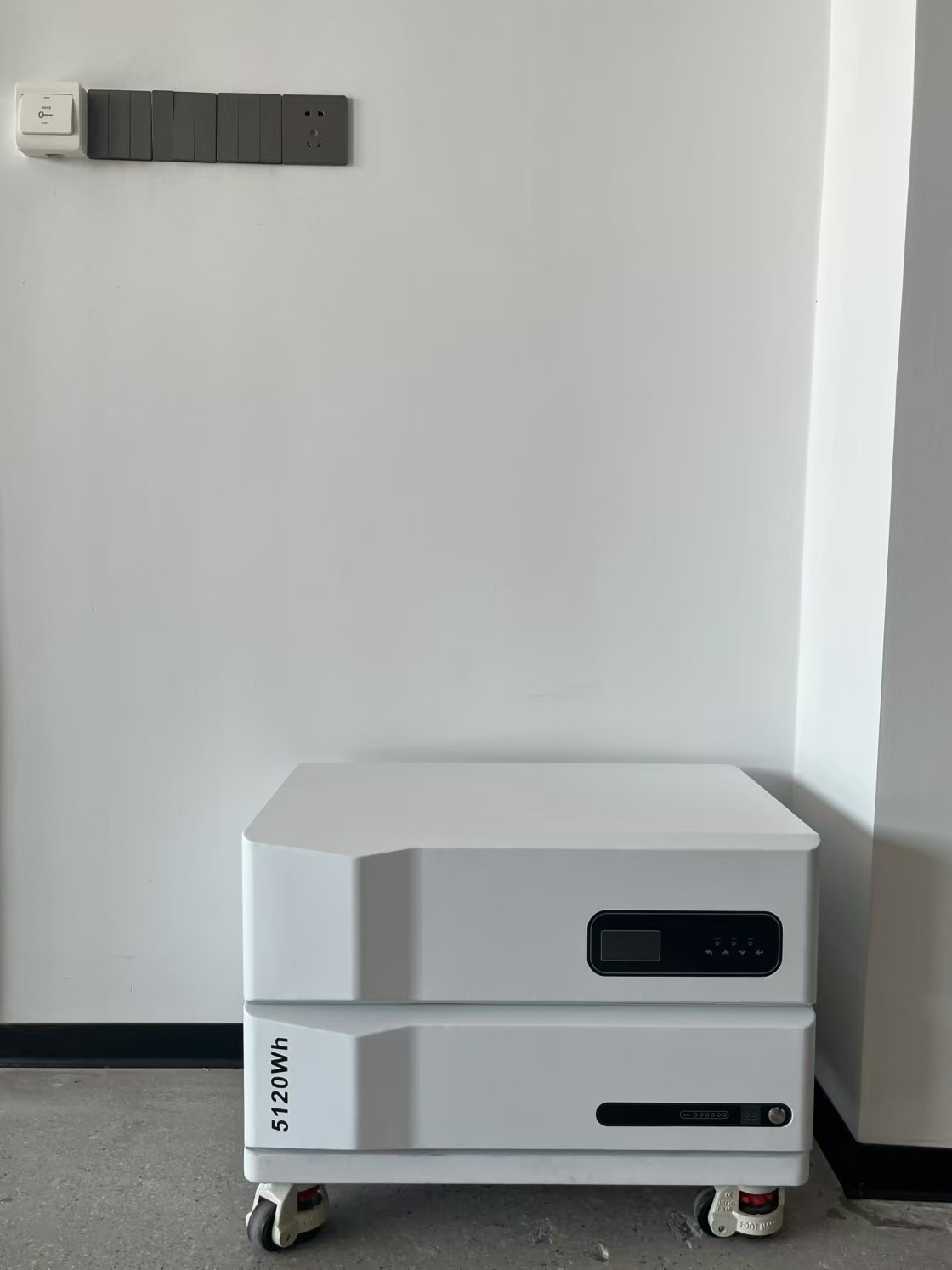

Lithium Battery
51.2V/384V 50ah/100Ah/200Ah
1pc or more
4
Mounting System
Whole set for roof and ground
1 set
5
PV Cables
4mm2/6mm2 PV cables
200m
6
PV connector
Rated Voltage:1000V
10 pairs
  • Product Detail

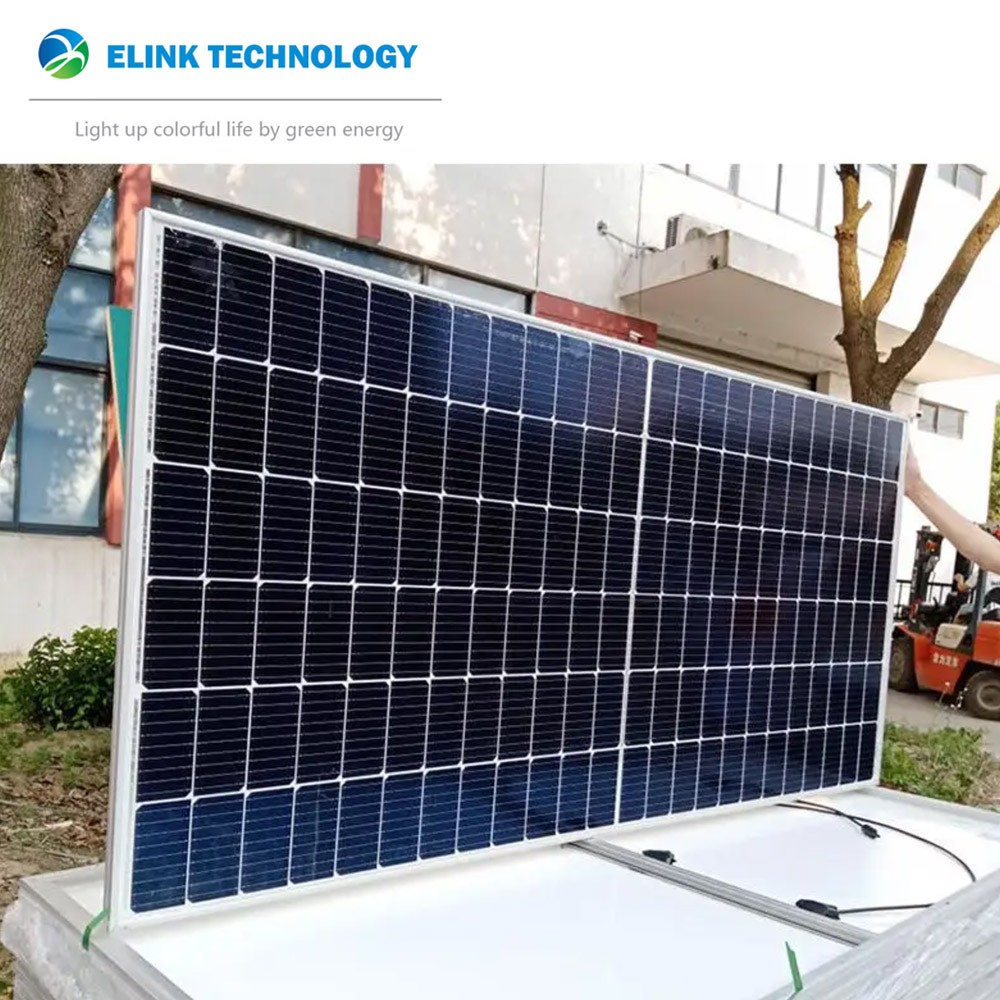

Electrical characteristics
Module type ELKSKT590M10 ELKSKT595M10 ELKSKT600M10
STC NOCT STC NOCT STC NOCT
Maximum power-Pmax(w) 590 439 595 443 600 447
Open circuit voltage-Voc(V) 53.76 50.75 53.87 50.86 53.98 50.97
Short circuit current-Isc(A) 13.97 11.27 14.05 11.35 14.13 11.43
Voltage at Pmax-Vmp(V) 44.49 41.46 44.57 41.67 44.65 41.88
Current at Pmax-Imp(A) 13.27 10.59 13.36 10.63 13.45 10.67
Module Efficiency-ηm(%) 21.12 / 21.29 / 21.47 /
Power Tolerance (w) (0,+4.99W)
Maximum System Voltage(V) 1500VDC(IEC,UL)
Maximum Series Fuse Rating(A) 25A

Mechanical Specifications
External Dimensions 2464x1134x35mm
Weight 32kg
Solar Cells Mono crystalline 182mm (2x78pcs)
Front Glass AR Coated 3.2 mm tempered glass
Frame Anodized aluminum alloy
Junction Box IP68
Output Cables 4.0mm², 50cm (+), 50cm (-), length can be customized
Connector MC4 EVO2
Mechanical Load Front Side Max. 5400Pa, Rear Side Max. 2400Pa

Packing Configuration
Dimensions 2464x1134x35mm
Container 20’GP 40’HQ
Pieces per Pallet 31 31
Pallets per Container 4 16
Pieces per Container 124 496

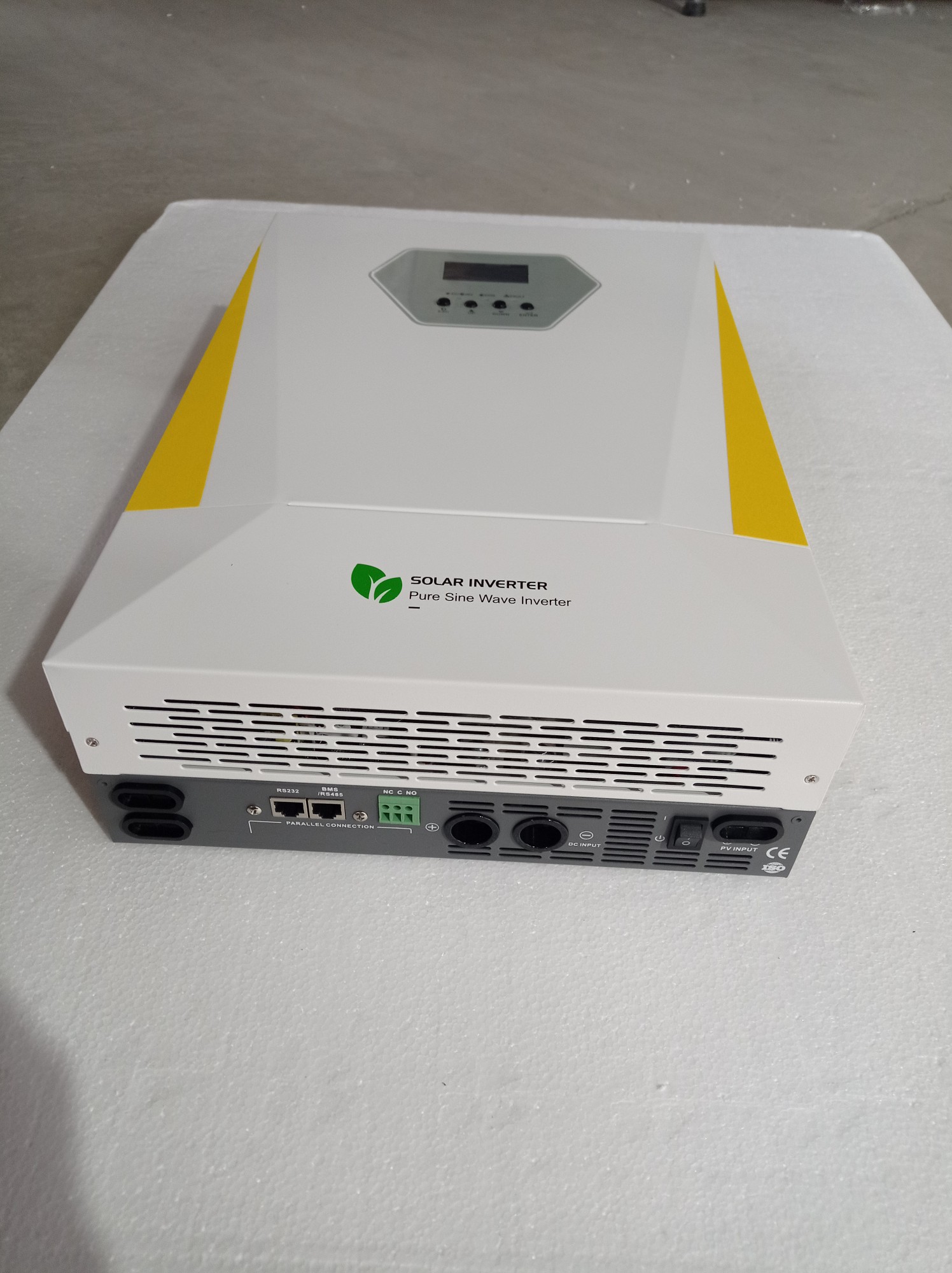

Model ELKTCFUD6348MB ELKTCFUD12548MB
AC Input Voltage 220VAC (standard)
Input voltage range (90~275)VAC±3V   (Normal mode)   (170~275)VAC±3\/ (UPS mode)
Input Frequency (50 / 60)Hz ±5%
Output Power 5kw 10kw
AC model output Voltage The output voltage of mains is the same as the input voltage.
AC model outout frequency The output frequency of  the mains is the same as the input frequency.
Battery model output voltage 220 VAC±10%
Battery model output frequency (50 / 60)Hz ±1%
Battery model output wave Pure sine wave
Battery type External  lead -acid  battery, Gel  battery or Lithium  battery.
Battery voltage 48VDC
Battery charging voltage 56.4VDC( 48V-61V  )
Maximum  PV array power 3200W 6400W
Solar input voltage range 48V: MPPT 60v~150VDC (200VDC)
Maximum PV Display Open  Circuit  Voltage 48V: MPPT 150VDC(200VDC)
Maximum solar charging current 60A 120A
Maximum  AC Charge Current 30A 60A
Transfer Time 10ms for UPS,  20ms for INV
Load peak ratio MAX  3 :1
Protective function Mains :  input overcurrent  fuse.
Inverter: overload  protection.short circuit  protection, low voltage  protection.
(with  battery anti-reverse connection,  board).
Status Display You can  view parameters such as  AC voltage, Ac frequency. PVvoltage, PV current. output voltage, output frequency,  battery voltage, load  current and  other  parameters  by turning the  page keys.
Voice prompt Low battery  protection  buzzer long beep                                                                                                                                                                                                                   Low  bottery  buzzer beeps every second                                                                                                                                                                                                             Machine fault buzzer  beeps
Overload  buzzer  beeps
When  the  overload  is less than 130%, the  buzzer will sound every second, and the output will  be  turned off  after  30s.                                                                                             When  the  overload  is greater  than l50%, the output wlll  be  turned  off  after 300ms.
Operating temperature -10°C~50°C
Storage temperature -15°C~45°C
Relative temperature 20%~95%  no condensation
Noise 45db
Dimension    L×W×H(mm) 5233149 545×400×200
